Home > Computer Products > Palm Computer, Pocket PC & PDA > Windows CE 6.0 Rugged RFID Mobile Terminal
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Operating System:
Win CE
Processor Type:
Samsung
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Festival Events RFID Festival Wristbands UK 13.56MHz Passive RFID WristbandsUS$ 0.2 - 0.5MOQ: 500 Pieces -
Handheld Bluetooth RFID USB Card Reader DL990NegotiableMOQ: 1 Set
-
13.56MHz Label RFID for Libraries for Book Tracking ManagementUS$ 0.09 - 3MOQ: 100 Pieces
-
MF 1K Compatible RFID Fabric Wristbands for Events, RFID Woven Wristbands for FestivalUS$ 0.2 - 0.5MOQ: 500 Pieces
-
Engraved Metal Tags With 3M Glue on the Back SideNegotiableMOQ: 100 Pieces
Products Status
Stock
Operating System
Win CE
Processor Type
Samsung
Style
Smartphone
Memory Capacity
128MB
Screen Size
320*240
Weight
200g
Brand Name
DAILY RFID
Model Number
rfid mobile terminal
Place of Origin
Guangdong, China
windows CE 6.0 Rugged RFID mobile Terminal
Our website is
| Product Details: | |
The DL710PLUS product is an industry-level handheld terminal developed, designed, and produced based on features of different industries by our company.
The DL710PLUS series adopt ergonomic design and is compact and flexible, shock-proof, and drop-proof.
The DL710PLUS series can work in the standby mode for a long time.
In addition, the DL710PLUS series adopt the dual power supply mode and support the conversation function, is perfect for Applicable Apparel industry, fast moving consumer goods (FMCG), retail, and supply chain industries Logistics industry, Hospital, government, mobile office, asset inventory and other RFID applications. | |
| RFID | |
| Type | LF&HF Handheld Reader DL710PLUS |
| Operating Frequency | LF(Low Frequency) 125 KHz or HF(High Frequency) - 13.56MHz |
| Protocol | ·LF - EM4001 & EM4100 & TK4100 |
| ·HF - ISO15693 & ISO14443 | |
| Reading Range | 10cm maximum |
| SDK | Free SDK provided attached to the Reader |
| System features | |
| Operating system | Microsoft Windows CE 5.0 OS (Multi-lingual) |
| Processor | SAMSUNG S3C2451 (533 MHz) |
| Memory | |
| Memory | 128 MB SDRAM |
| Flash memory | 128/256/512 MB (standard configuration: 128 MB) |
| Extension | Micro SD/TF slot (a maximum of 16 GB) |
| Barcode Scanning Parameters | |
| Scanning engine type | One-dimension laser scanner |
| Scanning speed | 100±20 per second (bidirectional) |
| Scanning distance | 60–650 mm |
| Scanning angle | 54±5 degree |
| Resolution | 0.127–1.00 mm |
| Readable bar codes | UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, Code 39, Trioptic Code 39, Code 39 Full ASCII, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, GS1 DataBar 14, GS1 DataBar Limited, GS1 DataBar Expanded |
| Audio, Slots, and Ports | |
| USB Ports | 1 USB Interface |
| Slots(Extension) | 1 Micro SD/TF slot |
| Input/Output devices | |
| Input devices | Soft keyboard, Hard keyboard, Scanning start key |
| Output devices | 3.2 in. TFT-LCD QVGA , (240 x 320) color touch screen |
| Communication features | |
| Wi-Fi WLAN(standard configuration) | 802.11b/g |
| Bluetooth(standard configuration) | Bluetooth V2.1+EDR |
| Wide-area wireless network (extension) | Provides a GSM/GPRS wireless communication module and supports GSM/GPRS Class10 and GSM0710 multiplexing. |
| Camera(extension) | Camera with 2 million/3 million pixels and fill light |
| GPS(extension) | Integrated |
| Product specifications | |
| Dimensions | 150 x 70 x 25 mm (w x d x h) |
| Weight | 200g |
| Energy Efficiency | |
| Master battery | 3.7 V 2800 mAh rechargeable lithium battery |
| Working hours | 8 or above (depending on the actual environment) |
| Charging time. | 3.5 hours |
| Slave battery | 150 mAh, providing power for six hours |
| Environment Requirement | |
| International Protection | IP54 |
| Operating Temp | -15°C to 50°C |
| Storage Temp | -20°C to 60°C |
| Humidity | 5% to 95% Non-condensing |
| Endurable height for dropping | Endure multiple drops to a smooth concrete floor from a height of 4 inches (1.2 m). |

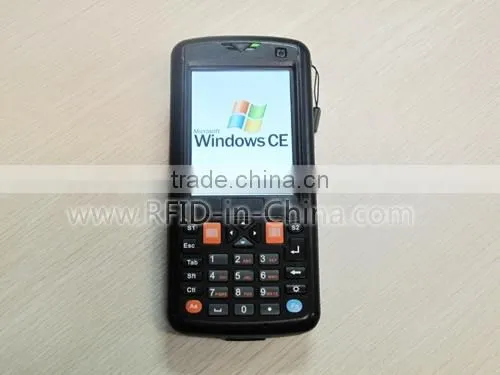

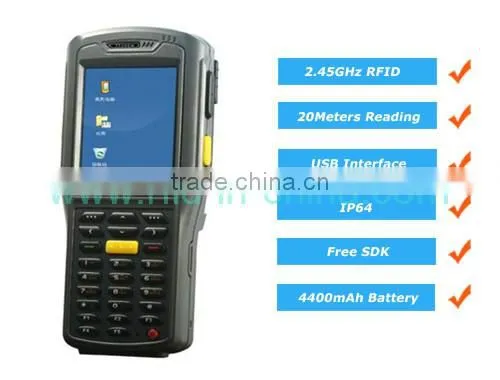

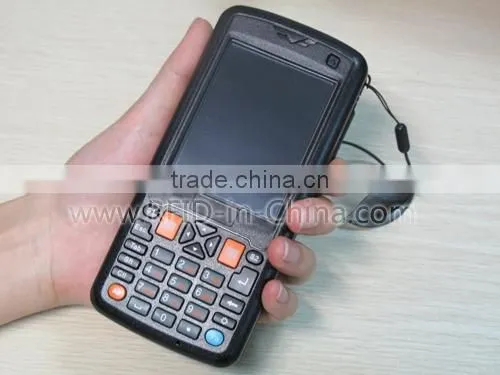

More Prictures for windows CE 6.0 Rugged RFID mobile Terminal
Other Prictures for windows CE 6.0 Rugged RFID mobile Terminal
