Passive RFID Tags for laundry and linen management
Our website is
Product Details
Passive RFID Tags Description |
The waterproof nylon and polyester 13.56 MHz Passive RFID tags are designed for RFID laundry and linen management. They can support varying operating temperature ranges, hot water temperature and immersion time dependent. Up to 50 tags per second can be detected with average read range of 6-12 cm. Tags offered in different sizes with one, two or no hole and can be affixed by sewing, gluing, be pinned or tied on. |
Passive RFID Tags Specification |
Type: Contactless R/O or R/W |
Operating Frequency: LF(125KHz) or HF (13.56MHz) |
IC Available at 125KHz: EM4200, EM4100, EM4102, EM4001, TK4100, GK4100 |
IC Available at 13.56MHz: |
I-CODE (ISO 15693-3), MF Ultralight (ISO 14443A), MF 1K (ISO 14443A), |
MF 4K (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request |
Size: Dia.10/16/17/20/22/25mm, thickness:2mm/3mm |
Reading Distance: 5cm ~ 30cm (Reader Dependant) |
Material: Nylon / Polyester / PPS / EPOXY |
Simultaneous Identification of Tags: Up to 50 tags per second(HF 13.56MHz) |
Operating Temperature: -25ºC to 120ºC | +150ºC total 50 Hrs | +200ºC total 20 Sec |
Storage Temperature: -25ºC to 90ºC |
Typical programming cycles at +25ºC: 100, 000 |
Typical Data retention time at +55ºC: > 10 years |
Passive RFID Tags Competitive Advantage |
1. Waterproof IP 68 (condition: water pressure 45bar, 10h) |
2. Simultaneous Identification of Tags: Up to 50 tags per second |
3. Data retention time at +55ºC: > 10 years |
4. 100, 000 times reading & writing |
5. Exceptional temperature and harsh environmental performance |

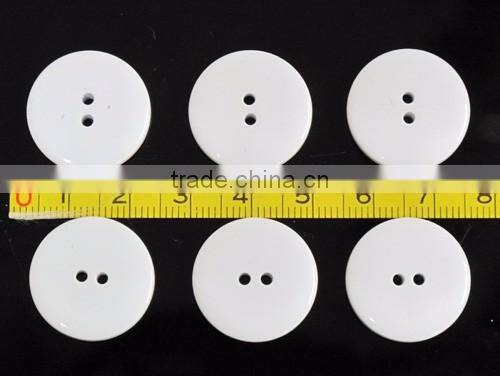

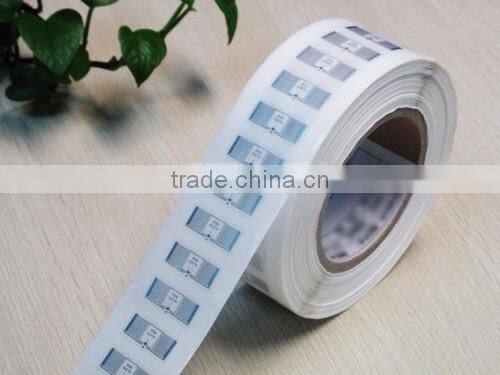

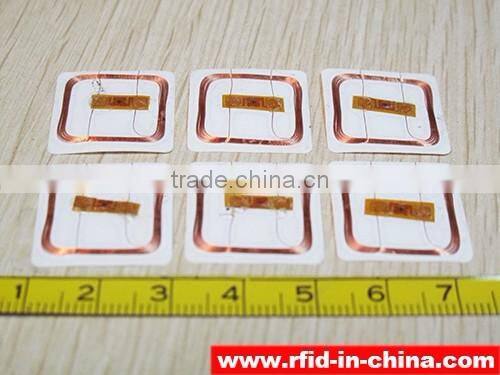

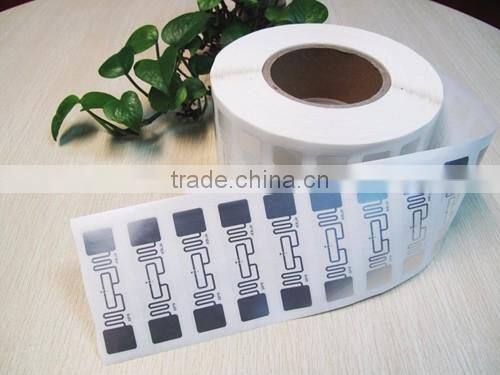

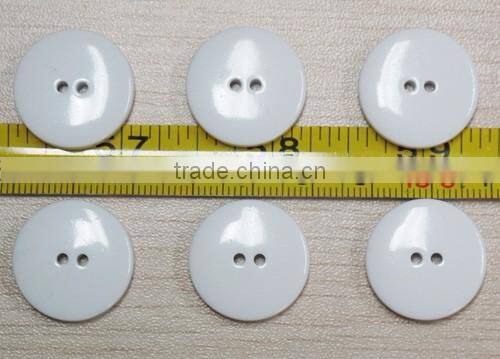

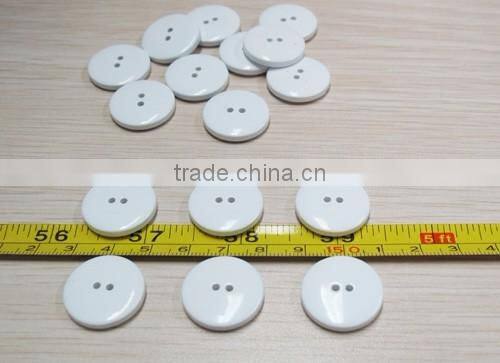

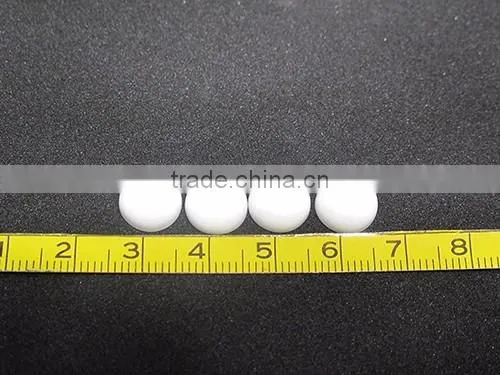

Photos of Passive RFID Tags for laundry and linen management

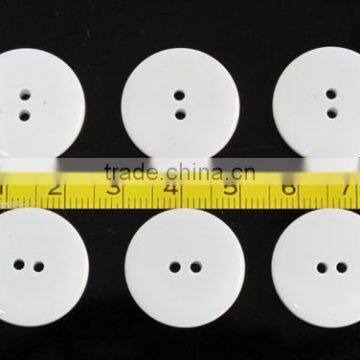

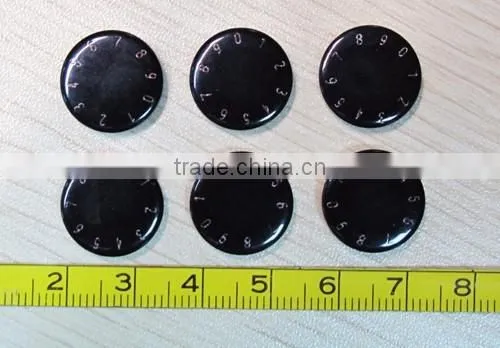

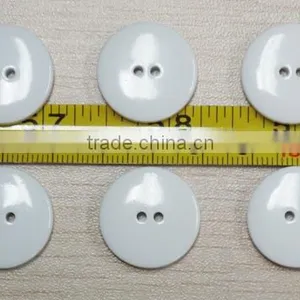

More photos of Passive RFID Tags
DAILY RFID is able to design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirement. For more info about RFID products please kindly visit our website or email us, we will contact you as soon as possible.
-Best DAILY, Best RFID-
