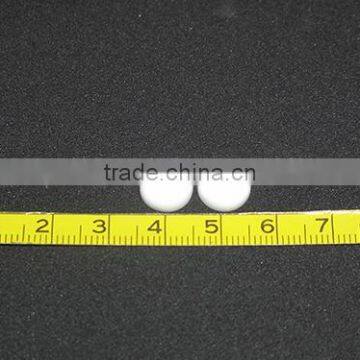

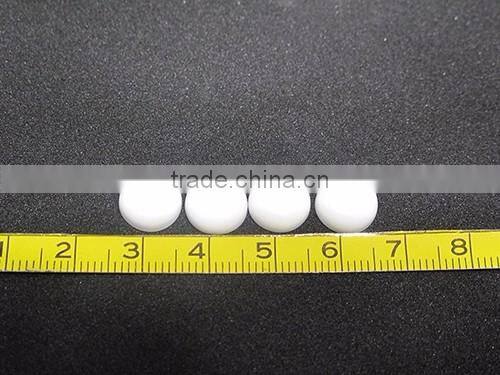

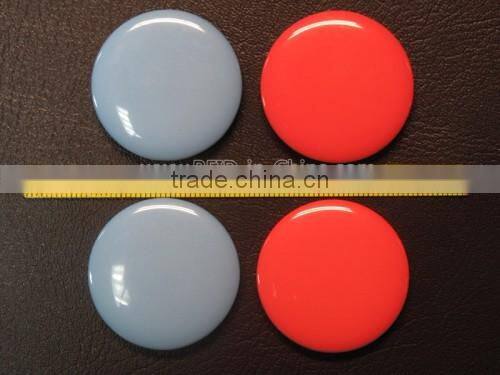

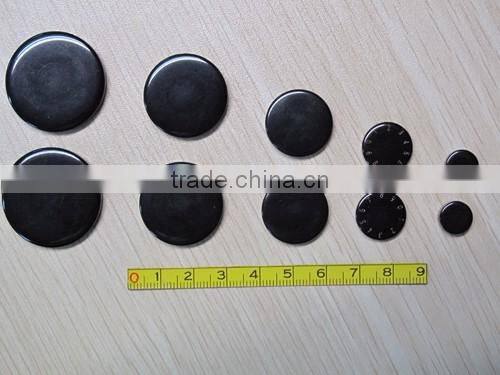

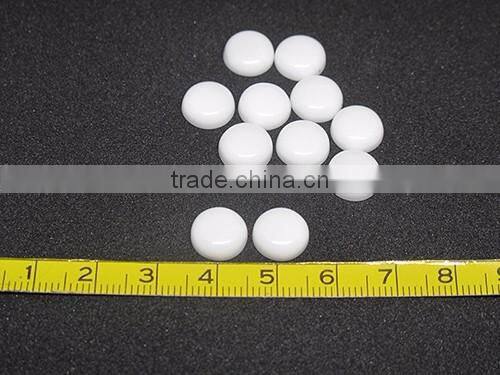

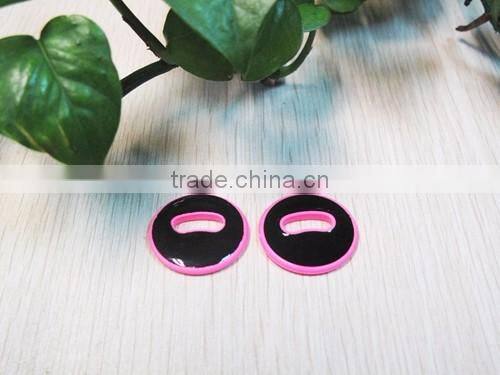

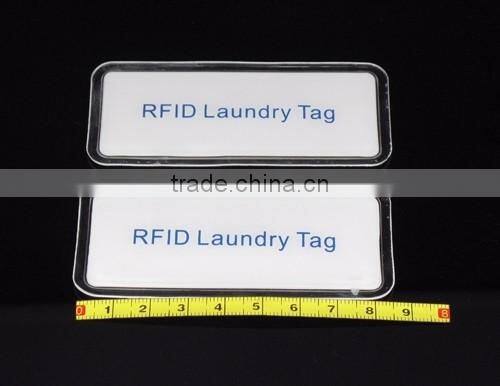

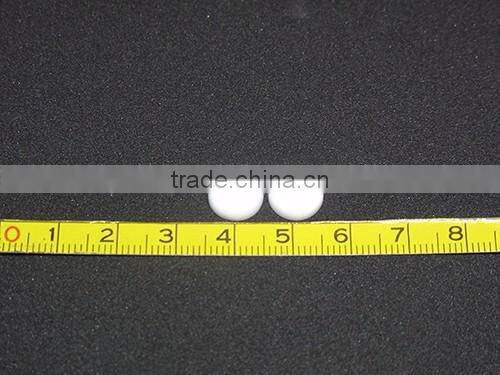

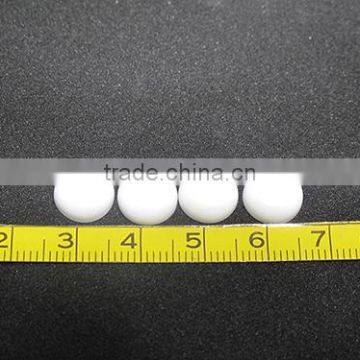

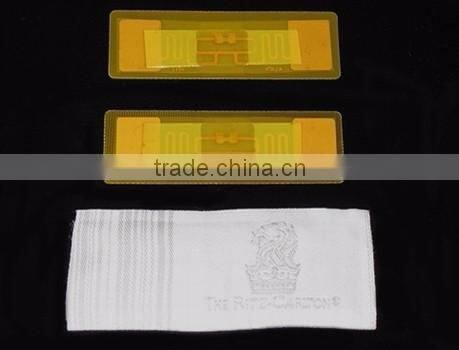

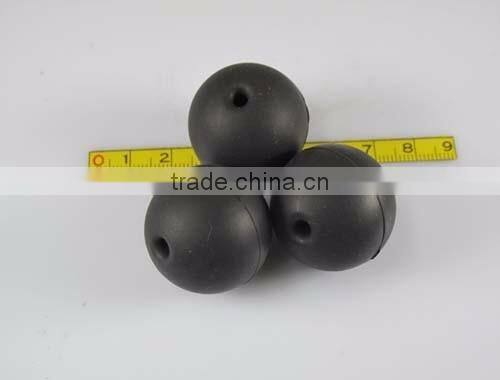

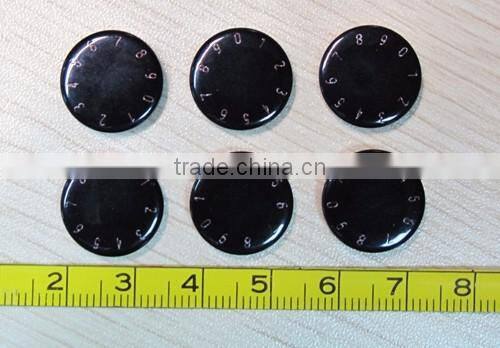

UHF RFID Laundry Tag UHF RFID Tag for Laundry Management

Description

The waterproof nylon and polyester UHF (860~960MHz) Passive RFID tags are designed for RFID laundry and linen management. The small, rugged RFID laundry tag is made of special material to basically meet all requirements in terms of heat, pressure and chemical resistance in the applications of contactless tracking of garments in the textile rental and dry cleaning.

Specification

Type: Contactless R/O or R/W

Operating Frequency:  UHF (860~960MHz)

 IC Available at 860MHz~960MHz: UHF EPC Gen2 (EPC CLASS 1 GEN 2)

Size: Dia.9mm, thickness:2mm/3mm

Reading Distance: 1cm ~5cm (Reader Dependant)

 Material: Nylon / Polyester / PPS / EPOXY

Operating Temperature: -25ºC to 120ºC | +150ºC total 50 Hrs | +200ºC total 20 Sec

Storage Temperature: -25ºC to 90ºC

Typical programming cycles at +25ºC: 100, 000

Typical Data retention time at +55ºC: > 10 years

Competitive Advantage

1.    Waterproof IP 68 (condition: water pressure 45bar, 10h)

2.    Data retention time at +55ºC: > 10 years

3.    100, 000 times reading & writing

4.    Exceptional temperature and harsh environmental performance
