Key Switch for Hotels, RFID Key Fob for Key Switch
Our Website is
| Product Details: | |
| This smart RFID key fob can also be used in a wide range of keyless RFID access control applications, such as hotel, hospitals, shared residences, shops, government offices, etc. | |
| RFID | |
| Type | Contactless Read & Write RFID key fob |
| Operating Frequency | 125KHz or 13.56MHz |
| Compliance | LF - EM4100, Hitag-1, Hitag- 2, Hitag-S, TK4100 |
| HF - MF S50, MF S70, I-CODE, Ti 256, INSIDE 2K | |
| Environment | |
| Operating Temp | -10º C to +50º C |
| Storage Temp | -20º C to +70º C |
| Physical Characteristics | |
| Dimension | 40*32mm, thickness:4mm |
| Standard Colour | White, Blue |
| Housing Material | ABS |
| Printing | Printable with silkscreen (no more than 2 colors); |
| A customized logo can be printed on the tag | |

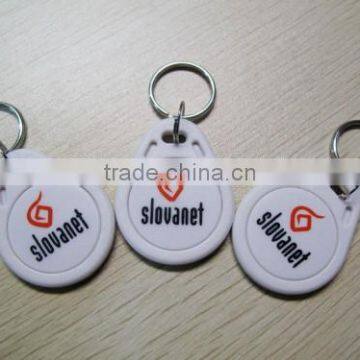

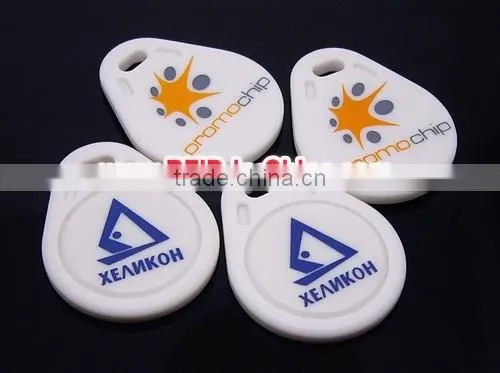

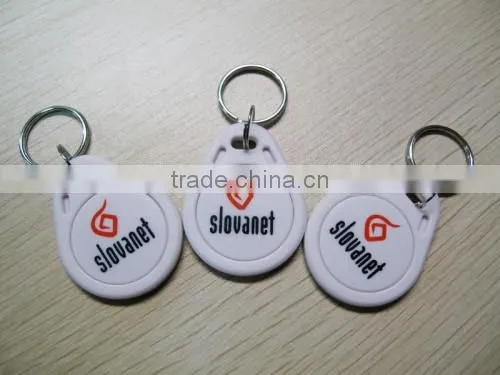

More Prictures for Key Switch for Hotels, RFID Key Fob for Key Switch
Our Advantage :
DAILY RFID Co., Ltd
1,A wealth of working experience--established in 1999,with 14 years in production & export market;
2,Widely products range--NFC lable/NFC tags/NFC wristband/NFC epoxy/RFID key fob/RFID card/PVC cards;
3,Top quality approved--SGS,BV,ISO9001-2008,Rohs,En71;
4,Our cooperated big clients--Disneyland,CK,Chanel,Sony Ericsson,Samsung,etc.
Feature:
1.Color: blue, black,grey,yellow,red ,purple ,etc
2,Custom logo printed:
3,Jet-dot printing number,Laser engraving
4 Silk-screen printing
5,encoding digital .
Available chip:
125 KHz
TK4100, EM4100, EM4102, EM4450, T5577, Hitag1, Hitag2, HitagS256, HitagS2048,
13.56MHz
S50, S70, Ultralight, ICODE SLI SL2, ICODE SLI-S, TI2048, TI256, INSIDE 2K, Legic mim256, JWL872
915MHz
UCODE EPC GEN2, UCODE HSL, IMPINJ MONZA
Application:
- Access Control & Identification
- Time Attendance
- loyalty & Membership for school,bus,parking etc Management
- Ticket & Payment
- Club/SPA membership management, rewards and promotion
Production ability:
We own three production lines. For PVC cards, the monthly output is 40 million pieces; for smart cards, the monthly output is 5.5 million pieces; for RFID antenna, the monthly output is 30 million pieces, for RFID tag inlays, the monthly output is 5 million pieces
Other great options:
PVC material RFID tag, RFID sticker tag,rfid key fob, metal isolated tags (for metal objects), rfid readers
125khz&13.56mhz Dual-frequency rfid key fob/ key chain | ||||
Dimension |
Model 1 |
43.7*30.5*5mm |
||
Model 2 |
33*40*4mm |
|||
Model 3 |
35*25*6mm |
|||
Model 4 |
53*37.5*9mm |
|||
Model 5 |
37.5*31*5.5mm |
|||
Model 6 |
51*32.58*5.5mm |
|||
Color |
Blue, yellow, red, black ,green ,etc |
|||
Chips |
LF 125khz |
ISO18000-2 |
TK4100 |
|
EM4200 | ||||
T5577, etc. | ||||
HF 13.56mhz |
ISO14443A |
S50 and Compatible F08 |
||
NTAG213 | ||||
Ultralight EV1, etc. | ||||
ISO15693 |
ICODE SLI |
|||
Tag-it HF-1 Plus(TI2048) | ||||
FM1302N( China Fudan) | ||||
Reading Range: 2~5cm | ||||
Rewriting Protection: As requested | ||||
Pre-programmed: As requested | ||||
UID: Hex or Decimal | ||||
Printing Service: Silk Screen Printing with Customized artwork | ||||
Other Options |
Any Colors available according QTY |
|||
Laser engrave/ID Number Printing | ||||
The chip type that works best for you is often determined by what you want to write to the key tag.
key tag is measured in bytes. The chip type and data size for each product is
listed in the Excel Sheet below:
| Chip |
Memory Size 1 (bytes) |
User Memory 2 (bytes) |
Max URL3 (characters) |
Best Use |
| Ultralight | 64 | 48 | 41 |
Cost effective chip for short URLs in products (smart card, wristbands, keyfobs, etc). |
| NTAG203 | 168 | 144 | 132 |
Popular, established all-round NFC chip. Cost-effective with good memory capacity. |
| NTAG210 | 80 | 48 | 41 |
Cheap, general NFC use with short URLs. Limited availability |
| NTAG213 | 180 | 144 | 132 |
Next generation chip, will eventually replace NTAG203.Great ScanStrength. |
| NTAG215 | 540 | 504 | 492 |
The 'one in the middle'. Good memory but limited availability compared to the NTAG216. |
| NTAG216 | 924 | 888 | 854 |
Large memory and full feature set. Higher price makes it suitable for vCard and larger memory use only. |
| Ultralight C | 192 | 148 | 132 |
Specialist applications requiring encryption only. Poor scan distance with mobile phones. |
| 1k | 1024 | 716 | 710 |
Legacy applications only. Not recommended for general mobile phone NFC usage. |
| 4k | 4K | 4094 | 2000 |
Specialist applications requiring strong data encryption only. |
| Topaz 512 | 512 | 454 | 449 |
Universally compatible chip available in only a limited number of products. Useful for vCards or small data storage. |
-BEST DAILY, BEST RFID-
