13.56 MHz Passive RFID Laundry system for Hotel Linen Management
Our Website is
The waterproof nylon and polyester 13.56 MHz Passive RFID tags are designed for RFID laundry and linen management. They can support varying operating temperature ranges, hot water temperature and immersion time dependent. Up to 50 tags per second can be detected with average read range of 6-12 cm. Tags offered in different sizes with one, two or no hole and can be affixed by sewing, gluing, be pinned or tied on.
Applications:
Garment, Hotel laundry management and tracking, textile rental, dry cleaning, towel and bed sheet laundry tracking
Specifications:
| Type | Contactless R/O or R/W |
| Size | Dia.10/16/17/20/22/25mm, thickness:2mm/3mm |
| Reading Distance | 5cm ~ 30cm (Reader Dependant) |
| Operating Frequency | LF(125KHz) or HF (13.56MHz) |
| Material | Nylon / Polyester / PPS / EPOXY |
| Simultaneous Identification of Tags | Up to 50 tags per second(HF 13.56MHz) |
| Operating Temperature | -25ºC to 120ºC | +150ºC total 50 Hrs | +200ºC total 20 Sec |
| Storage Temperature | -25ºC to 90ºC |
| Typical programming cycles at +25ºC | 100, 000 |
| Typical Data retention time at +55ºC | > 10 years |
| IC Available at 13.56MHz |
HF: I-CODE (ISO 15693-3), Mifare 1K Classic (Mifare 1K S50), Mifare 1K EV1, Mifare 4K S70, Mifare 4K EV1, Mifare S20, Mifare Ultralight, Mifare Ultralight EV1, Ultralight C, Mifare DesFire 2K / 4K / 8K, Mifare plus 2K / 4K / 8K, Tag-it™ HF-I (ISO 15693-3), SmartMX, others upon request NFC: NTag210, NTag213, NTag215, Ultralight ULT EV1, Ultralight-C, NTag216, NTag203, Sony FeliCa Lite-S, ST25TA02K, others upon request |
| IC Available at 125KHz | EM4200, EM4100, EM4102, EM4305, EM4001, T5577, Hitag1, Hitag2, Hitag S, Hitag-u Advanced, TK4100, GK4100, others upon request |
Competitive Advantage:
1. Waterproof IP 68 (condition: water pressure 45bar, 10h)
2. Size: Dia.16/20/22/25 mm
3. Simultaneous Identification of Tags: Up to 50 tags per second
4. Data retention time at +55ºC: > 10 years
5. 100, 000 times reading & writing
6. Exceptional temperature and harsh environmental performance

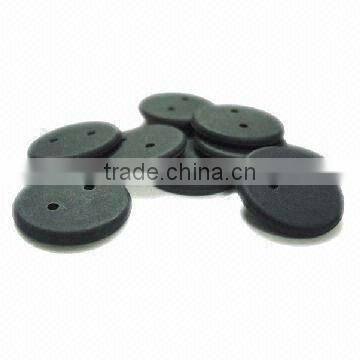

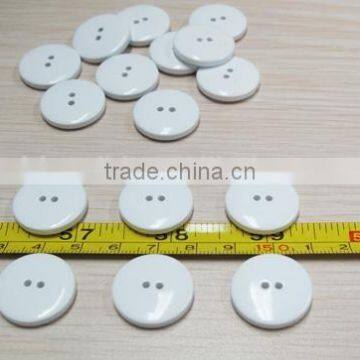

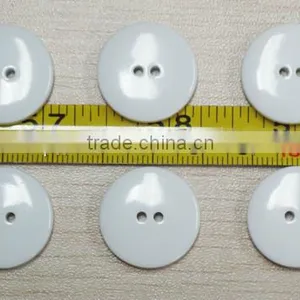

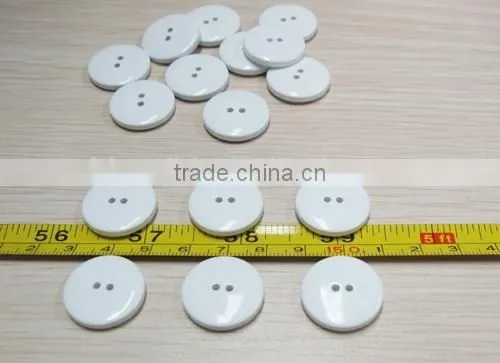

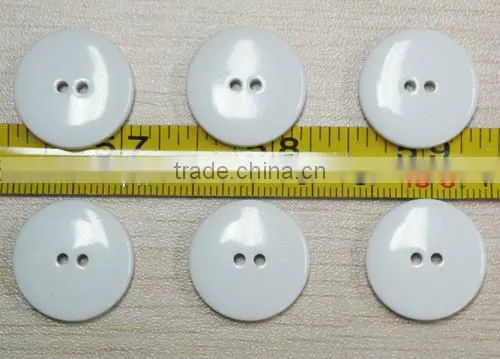

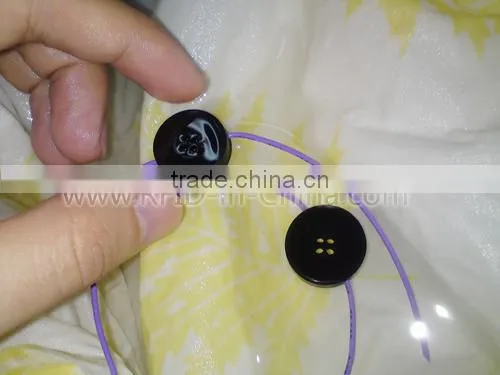

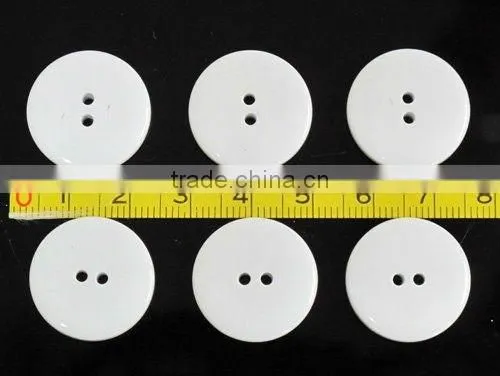

More pictures for 13.56 MHz Passive RFID Laundry system for Hotel Linen Management
We can design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirements. For more info about RFID products please kindly visit our website http:// or mail to us, our sales will contact you as soon as possible.
Payment Term:
1. T/T;
2. Paypal;
3. Western Union;
4. Alibaba Escrow.
5. Money Gram
Shipment Term:
1.We will ship the items after the payment is reached;
2.We can ship to you by UPS/DHL/TNT/EMS/Fedex. Pls contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver,pls choose other shipping ways;
3.Goods will be sent out soon,with 1-3 days;
4.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service;
5.Any import fees or charges are the buyer's responsibility.
========================================
Refund & Replacement term:
1. We offer real reliable quality information to the customer;
2. 30 days with guarantee with submitted for non-original parts;
3. Any problem about parts,pls let us know asap;
4. If goods should be returned,pls keep original condition;
5. All transportation costs shall be borne by the buyers.
================================================
About us:
1. More than 18 years business enable us accumulated much experience in electronic components filed;
2. We ability to control and detect the quality,could make sure the quality ;
3. Lots of parts in our own store and in stock,Fast shipment is supported;
4. In our daily work Service for customer will be improved ;
5. submit all new electronic parts is our criterion;
6. Be your reliable supplier is our pursue.
Others :
We are major in 100% New Original parts , we are certified and duly registered dealing with well-known RFID companies .Between our company and our overseas customers have always had good credit relationship.
We have a lot of goods in stock ,as the goods you want to reach a certain amount of time the price we can discuss.If you are interested in our products, please contact us.
-Best DAILY, Best RFID-
