Passive Rfid Laundry System in Retail Stores

Description

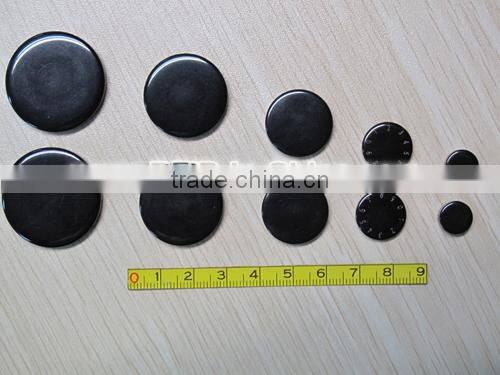

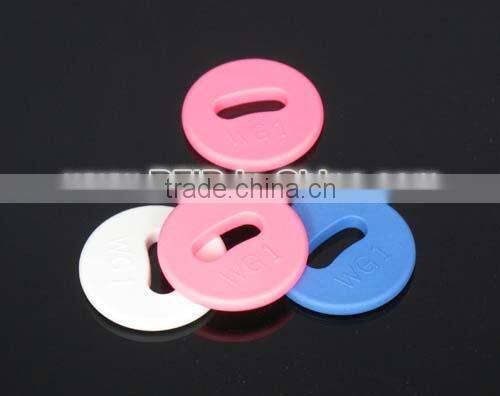

The waterproof nylon and polyester 13.56 MHz Passive RFID tags are designed for RFID laundry and linen management. They can support varying operating temperature ranges, hot water temperature and immersion time dependent. Up to 50 tags per second can be detected with average read range of 6-12 cm. Tags offered in different sizes with one, two or no hole and can be affixed by sewing, gluing, be pinned or tied on.

Specification

Type: Contactless R/O or R/W

Operating Frequency: LF(125KHz) or HF (13.56MHz)

IC Available at 125KHz: EM4100, EM4102, EM4001, TK4100, GK4100

IC Available at 13.56MHz:

I-CODE (ISO 15693-3), MF Ultralight (ISO 14443A), MF 1K (ISO14443A), MF 4K (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

Size: Dia.10/16/20/22/25mm, thickness:2mm~3mm

Reading Distance: 5cm ~ 30cm (Reader Dependant)

Material: Nylon / Polyester / PPS / EPOXY

Simultaneous Identification of Tags: Up to 50 tags per second(HF 13.56MHz)

Operating Temperature: -25 centigrades to 120 centigrades | +150 centigrades total 50 Hrs | +200 centigrades total 20 Sec

Storage Temperature: -25 centigrades to 90 centigrades

Typical programming cycles at +25 centigrades: 100, 000

Typical Data retention time at +55 centigrades: > 10 years

Competitive Advantage

1.Waterproof IP 68 (condition: water pressure 45bar, 10h)

2.Simultaneous Identification of Tags: Up to 50 tags per second
