Fire-new UHF RFID mat antenna with smart technologies
Negotiable
/ Unit
1 Unit(Min.Order)
- 500000 Set / Sets per Month
- Guangzhou/ Hongkong
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | DAILY RFID | Model Number | RFID mat antenna |
Product Description
Fire-new UHF RFID mat antenna with smart technologies
Product details:
| Important performance | |
| Support protocol | ISO18000-6B/ISO18000-6C(EPC G2) |
| Working frequency | ISM 902MHz~928MHz,Or 920MHz~925MHz |
| Customization | 860MHz~960MHz |
| Working mode | FHSS or fixed frequency |
| Transmit power | 20dBm~30 dBm(set by software) |
| Read-Write performance | |
| Read speed | The average read time for single card is less than 10ms per 64 bits |
| Read distance | 8m~10m(according of tag and environment) |
| Write speed | 8bits less than 30ms |
| Write distance | 4m~7m(according tag) |
| Read prompt | Buzzer |
| Electric parameter | |
| Power supply | DC+5V |
| Power consumption | 5W |
| Exterior and weight | |
| Dimension | 200mm×190mm×80mm |
| Weight | 1000g |
| Working environment | |
| Working temperature | -30°C~70°C |

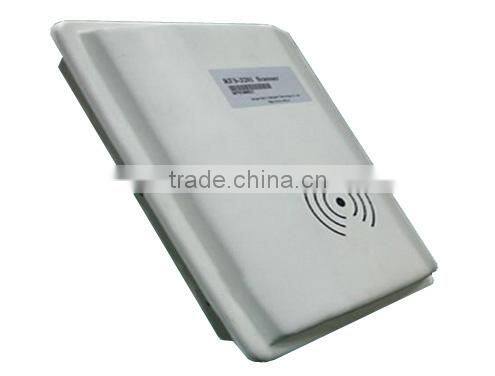

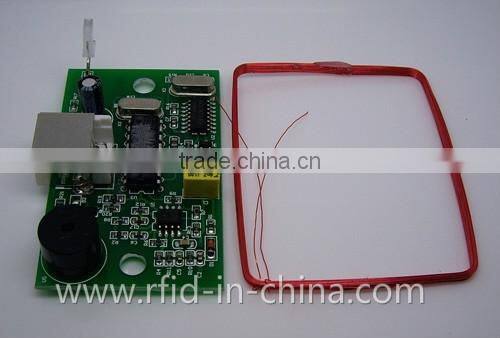

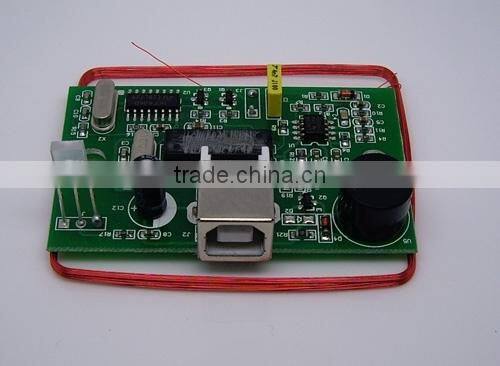

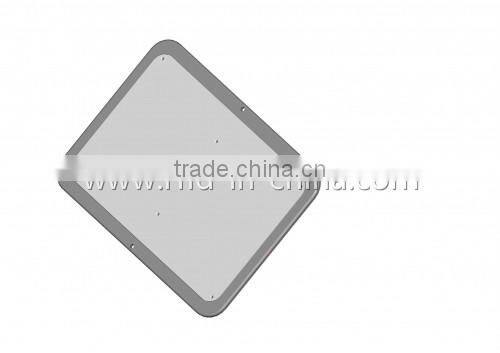

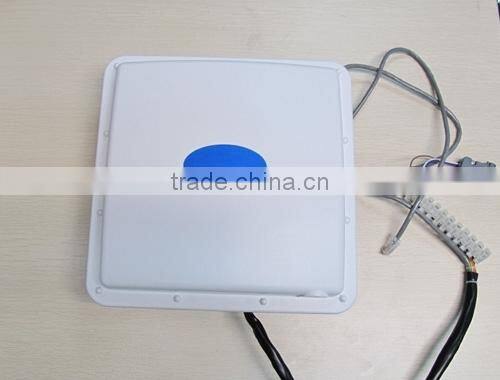

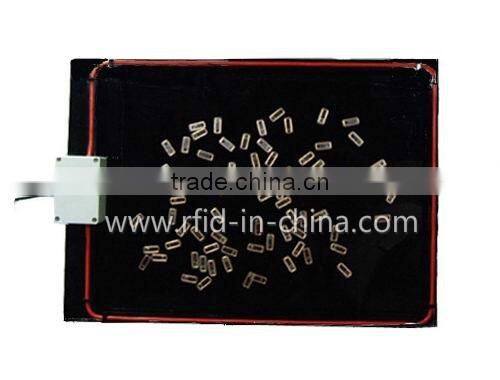

More pictures for UHF RFID mat antenna with smart technologies

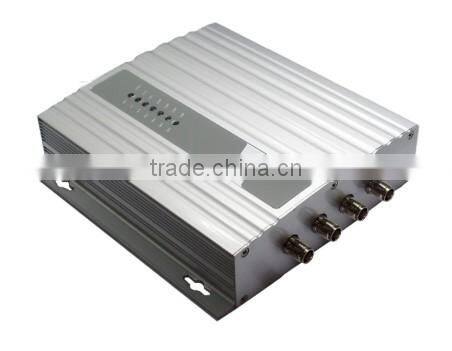

Other pictures for RFID long range reader operating with RFID mat antenna
DAILY RFID is able to design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirement. For more info about RFID products please kindly visit our website or email us, we will contact you as soon as possible.
-Best DAILY, Best RFID-
We are sincerely looking forward to our friendly cooperation in the near future~~~ ^_^
