Specifications
irregular RFID key card1.125khz key fob
2.Various types and colors
3.waterproof, OEM
4.125khz,13.56mhz or UHF

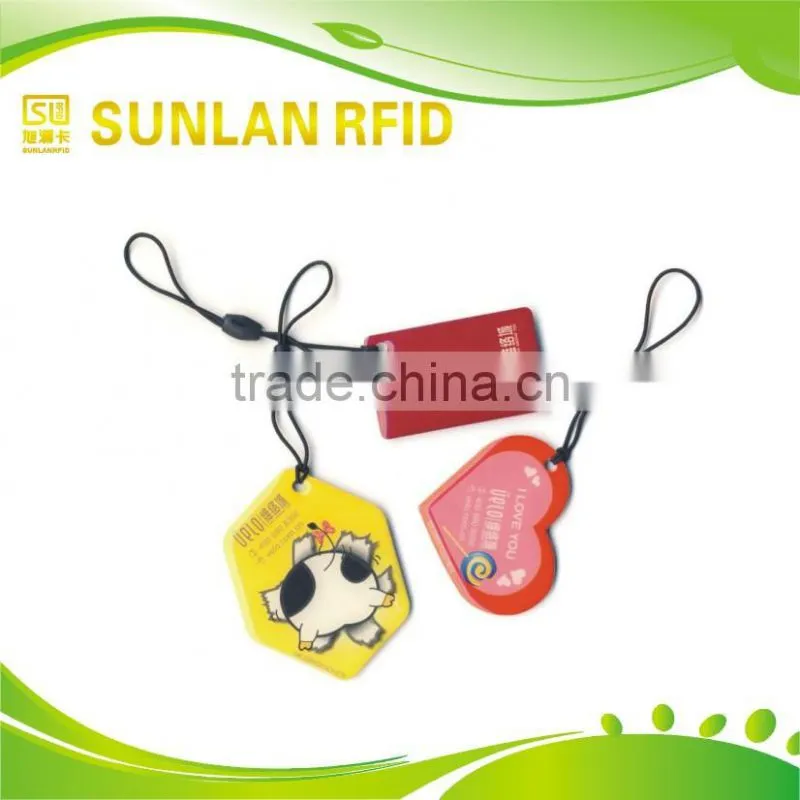

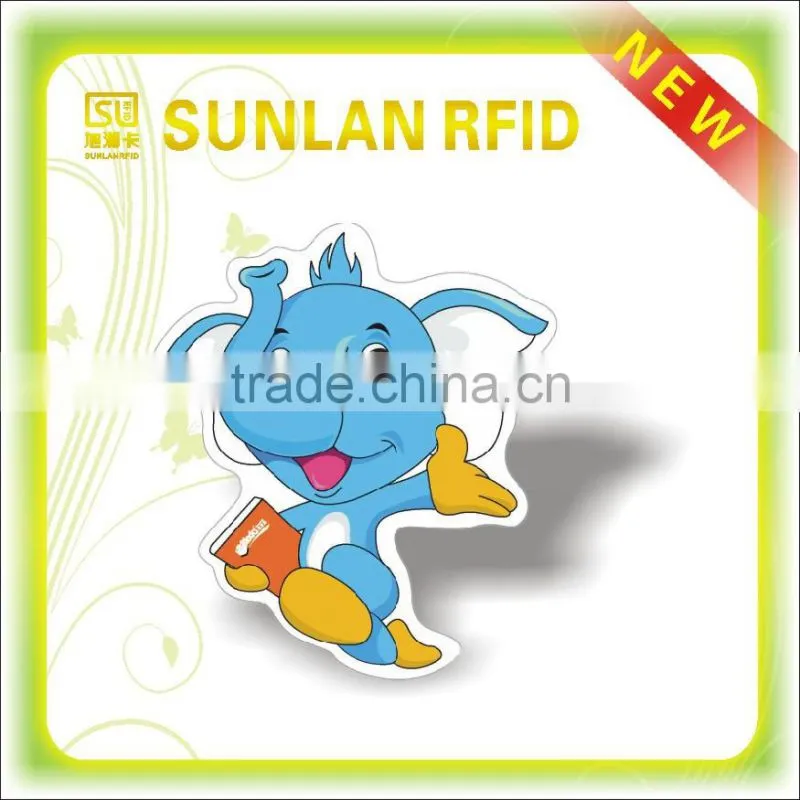

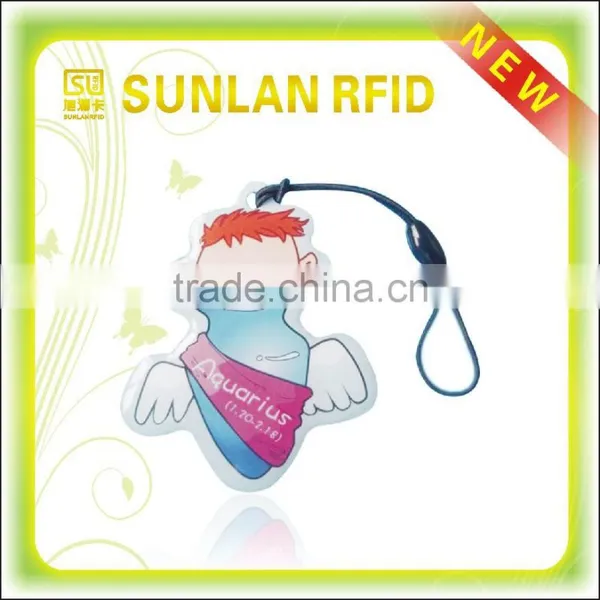

irregular RFID key card
| 1.Printing options | |
| Offset printing(CMYK), silk screen printing(Panton Color), digital printing,inkjet printing, thermal printing; | |
| - Pantone color printing( common is 2-3 colors, can be more color in extra cost); | |
| - gold or silver color background; | |
| - Hot stamp foil color ( gold, silver, laser red gold etc); | |
| - Security logo printing; | |
| - Hologram logo. | |
| 2. Size | |
| - CR80 Size: 2.125*3.375 inch (86*54 mm)or customized die cut shape; | |
| - Common size: 12mil(0.3mm),14mil(0.36 mm),18mil(0.45mm),20mil(0.5mm); | |
| - Uncommon size: 30mil(0.76mm), 24mil(0.6mm), 40mil (1.0mm); | |
| 3. SurfaceProcessing Craft | |
| - Lamination Glossy, Frosted, Dump, Matt , Sport UV, Epoxy or others special request. | |
| 4. Material | |
| PVC/PETG/PET/ABS | |
| 5. Optional Crafts | |
| - Embossing name, number and date ( gold or silver color for options); | |
| Barcode, QR code, Signature panel, magnetic strip,scratch-off panel,UV ; | |
| 6. Magnetic Stripes(LoCo/ HiCo) | |
| Low coercivity (LoCo) and High coercivity (HiCo) magnetic stripes. Encode data into track 1, 2, 3; | |
| 2.Magnetic size :8mm/12.5mm; | |
| 7. Scratch-Off Panels | |
| It is commonly used to cover surprise gifts, codes, surprise discounts, data, icons etc. The client/user receives the card in the mail, at a store, or event and then gets to simply scratch off the panel to reveal the information. You can include more than one scratch panel on your design, however, too many panels can leave residual "scratch-off" material on your cards. | |
| 8. Technic Specification | |
| Name | Mifare one card and CPU card for contactless rfid card |
| Chips Available | for M1:ISSI 4439,ISSI S70,QR2217, NXP S50, NXP S70, FM1108, etc. For CPU card:FM1208,ISSI4456,NXP PLUS,P5CD12A4T0B,etc. |
| Card Size | 85.5*54*0.76mm or customized size |
| Storge Temperature | -20~50 °C |
| Operating Temperature | -20~50 °C |
| Frequency | 13.56MHz |
| EEROM write time | 2.5ms |
| EEROM write endurance | 10,000cycles |
| EEROM data retention | 10years |
| Operating distance | 2.5~10cm |
| Memory Capacity | 1KB,4KB |
| Read/Write | read and write |
| 9. Application | |
| Application | Rfid key fob,token,key chain,Smart Card,School ID Card,voter ID Card ,portrait ID Card,Contact IC card,Key card,HID card,Portrait card,PVC Card,Plastic card,VIP Card,Membership Card,Gift Card;Clear Card,Luggage Card,discount card,magnetic card,barcode card,phone card,Embossing card,CPU card,handbag tag,bag tag,luggage tag,plastic tag,pvc luggage tag,travel tag,id tag,credit cards,visa card,debit card,identification card,ID cards,access card,student card and so on. |
About us:
We, Shenzhen Sunlanrfid Technology Co., Ltd, is a manufacturer in the south of China, specializing in RFID tags in different formats: smart card, ic card, nfc tag, inlay, and so on.
Our cooperators:
ISSI, SIEMENS, NXP, SINOPEC, CHINA UNICOM, CHINA POST, Vienna Hotel Group......
Our production line:
Exhibition:
Our factoty and workshop:
Packaging details:
200pcs/ box, 10boxes/carton. ( For standard card size) box size: 21.5*9.5*6cm
Shipping details:
3-8 working days after the receipt of 50% deposit of the total payment.
By express: DHL/TNT/UPS/FedEX, by Sea/Air or on your demand.
Packaging pictures:
1. Are you factory or trading company?
We are RFID card manufacturer in Shenzhen, established in 2006. with many years 's experience of manufacturing cards, Big market in Europe, North America, Africa, Asia, and so on.
2. Can i get free sample?
Yes. Free samples are available, but freight collect.
3. What is MOQ?
500pcs.
4. Can i order if quantity is less than 500PCS?
Yes, and it would be regarded as sample production. Much attention will be paid to sample order.
5. what is your lead time?
3-8 working days. Our monthly output is be 5,000,000 pcs.
6. How should i pay?
by T/T, Western Union, or Paypal.
7. How about the package? If the cards stand for a long way shipment?
Our products would be packaged in a hard cardboard box first, and then in a 3 layers carton, and will be fixed tightly. No probelm with the shipment by sea.
8.What's your guaranty?
1 years guaranty would be sure. And please test the goods within 2-3 weeks. Any disqualified goods will be replaced at once.
9. If you have ISO 9001-2008 certification?
Yes. And we also obtained the certification of SGS.
