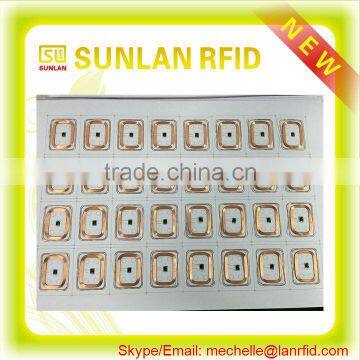

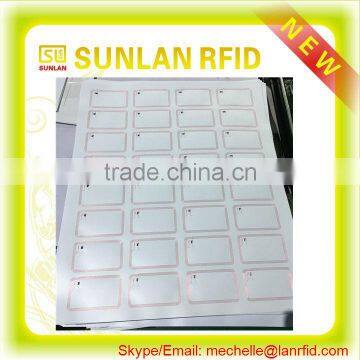

China Manufacturer--LF or HF RFID Contactless Card Inlay/Prelam Sheet/Card Inlay Sheet/RFID Inlay

Item

Specification

rfid inlay prelam Operating Frequency

LF 125KHz, HF 13.56MHz,uhf,lf+uhf,hf+uhf

Chip IC

EM4200,TK4100,T5577,T5577 Compatible,Custom.All available

Standard

ISO14443,ISO15693,ISO 18000

Material

PVC, PET,petg

Dimension

310mm x 468mm, Max. size 520mm x420mm, A4 210mm x297,

Layout for RFID Inlay

3x7, 5x5,3x8,4x8,4x6, 2x5,2x4, or any Customization of CR80 card or any unit antenna size

RFID Inlay Thickness

HF normal 0.45mm,0.5mm, min.0.3mm ,

LF normal ,0.6mm, Min. 0.5mm

UHF 0.6mm, 0.5mm

Antenna

HF:  air antanna, Altrasonic Embeding or AL Etching

LF:  air antanna or altrosonic embeding ;

UHF: AL Etching

Bonding

LF:  Wire Bonding,

HF:  FUDAN, ULTRALIGHT, ICODE SLI .etc

UHF: Alien, H3 .etc

RFID Inlay Read range

Depands on the reader and the chip

Working temperature

-25°C ~ +55°C

Store temperature

-25°C ~ +65°C
