Wet/Dry UHF Inlay for PVC Cards Making
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
T5557/T5577 125khz ID InlayNegotiableMOQ: 500 Pieces -
hf Rfid Inlay for Making id CardNegotiableMOQ: 500 Pieces
-
13.56mhz Rfid Inlay for Rfid TagsNegotiableMOQ: 500 Pieces
-
High Quality and Competitive Price ID Chip InlaysNegotiableMOQ: 500 Pieces
-
ISO Approval Magnetic Blank CardNegotiableMOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
OEM
Specifications
Wet/Dry UHF inlay1.Thickness:0.06mm;0.5mm
2.Frequency:860~960MHz
3.Layout:3x7,5x5,3x8,4x8,4x6,2x5,2x4,
4.For UHF Card

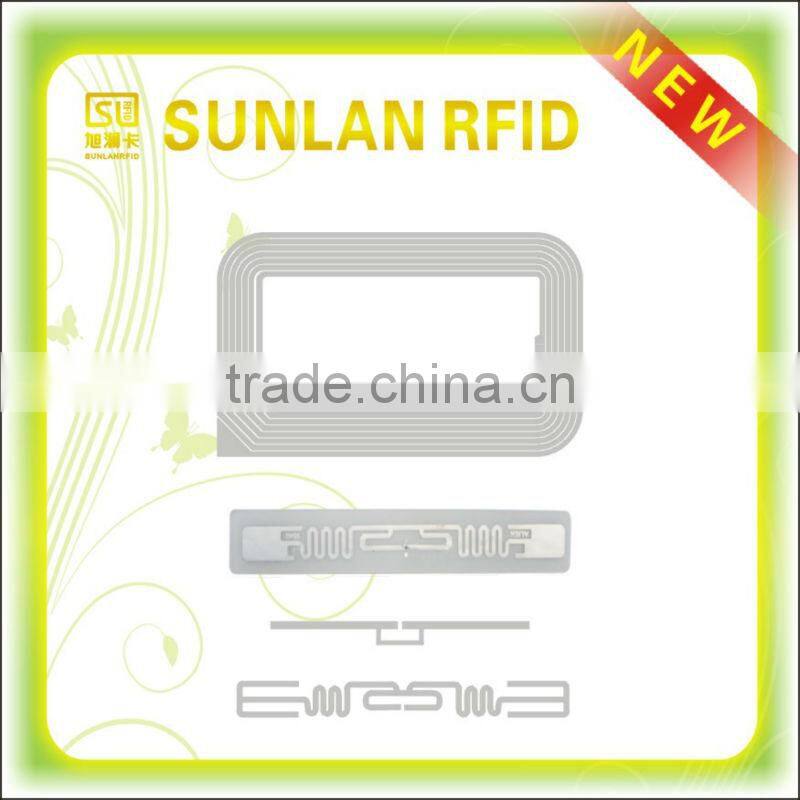

Wet/Dry UHF inlay
UHF dry inlay, made of PET, with thin thickness 0.06mm, is a great solution to make UHF ISO cards or Labels. We have many different size for optional, 4*5, 5*5, 4*6, 3*8, 3*7, 2*5, 2*4, etc; size is also customized.
Specification of RFID card inlay from Freevision Technologies:
| Item | Specification | |
| Operating Frequency | LF 125KHz, HF 13.56MHz, UHF GLOBAL 860MHz-960MHz | |
| Chip IC | EM4200,TK4100,T5577,T5577 Compatible, HID Compatible,Mifare series... | |
| Standard | ISO14443,ISO15693,ISO 18000 | |
| Material | PVC, PET | |
| Dimension | 310mm x 468mm, Max. size 520mm x420mm, A4 210mm x297, | |
| Layout | 3x7, 5x5,3x8,4x8,4x6, 2x5,2x4, or any Customization of CR80 card or any unit antenna size | |
| Thickness | HF normal 0.45mm,0.5mm, min.0.3mm , | |
| LF normal ,0.6mm, Min. 0.5mm | ||
| UHF 0.6mm, 0.5mm | ||
| Antenna | HF: AL Etching,Pre-winding Copper coil, Altrasonic Embeding; | |
| LF: Pre-winding Copper Coli, AL Etching; | ||
| UHF: AL Etching | ||
| Bonding | LF: Wire Bonding, | |
| HF: FLIP chip, Wire Bonding, MOA2, | ||
| UHF: FlIP chip | ||
| Read range | more than 50mm with our reader | |
| Working temperature | -25°C ~ +55°C | |
| Store temperature | -25°C ~ +65°C | |
Special Features:
As core part of RFID card, we provide high-quality RFID inlay which they are suitable to ISO standard cards and made into different thickness and various shape for option. We have advanced ultrasonic technology, and aluminum(AL) etching techniques, so the quality of our products is not only stable also durable and better Reading and writing performance. What's more,the products with the AL etching that can be extreme thin, suitable for special needs.
- IC: Mifare 1K, 4K, Ultralight and DESFire,T5577compatible chip, mifare compatible ,HID compatible...
- Thickness:0.3~0.6mm
- Application: For card lamination
- All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
