Low Power Plastic Compounding Pelletizing Machine

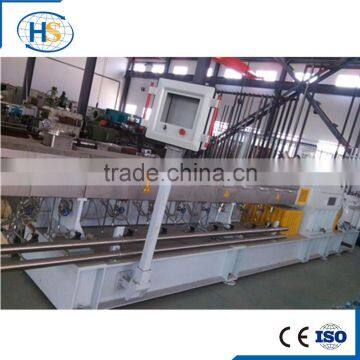

Low Power Plastic Compounding Pelletizing Machine photo-1

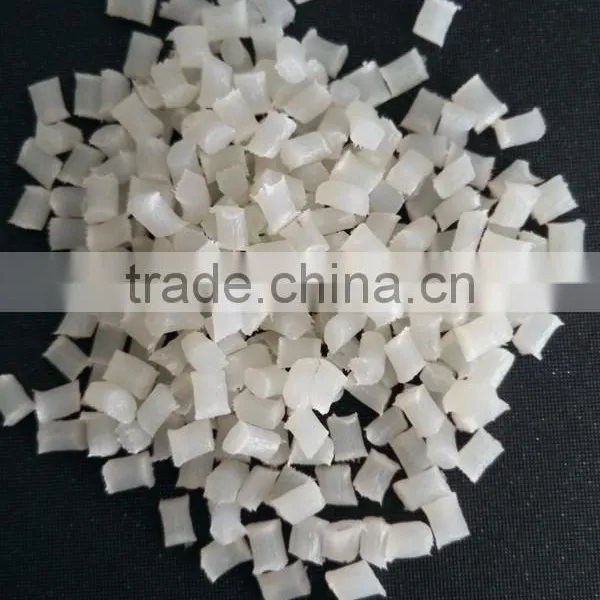

Low Power Plastic Compounding Pelletizing Machine photo-2
US$ 78,000 - 118,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Granules
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Nanjing port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Granules
Plastic Processed PE
Screw Design Double-screw
Automatic Grade Semi-automatic
Place of Origin Jiangsu, China
Brand Name Haisi
Model Number TSE-95A
Voltage 380V 50HZ
Power(W) 250KW
Dimension(L*W*H) 18*2*2.8m
Weight 8T
Certification CE/ ISO/ SGS/ TUV
After-sales Service Provided Engineers available to service machinery overseas

Low Power Plastic Compounding Pelletizing Machine





Low Power Plastic Compounding Pelletizing Machine



 Which pelletizing line we use depend on the raw material and your technology process



Option1. twin screw extruder in air cooling pelletizing

Low Power Plastic Compounding Pelletizing Machine

1. metering feeder; 2.twin screw extruder; 3. air cooling pelletizer; 4. cyclone; 5. vibrating screen sieve; 6. cyclon. 7. silo





Option 2. twin screw extruder in water strand cooling pelletizing

Low Power Plastic Compounding Pelletizing Machine

1. metering feeder; 2.twin screw extruder; 3. water batch; 4. air knife; 5. pelletizer.



Option 3. twin screw extruder in water ring pelletizing

Low Power Plastic Compounding Pelletizing Machine

1. metering feeder; 2.twin screw extruder; 3. water ring pelletizer; 4. centrifugal dewater ; 5. vibrating sieve; 6. blown; 7.silo.

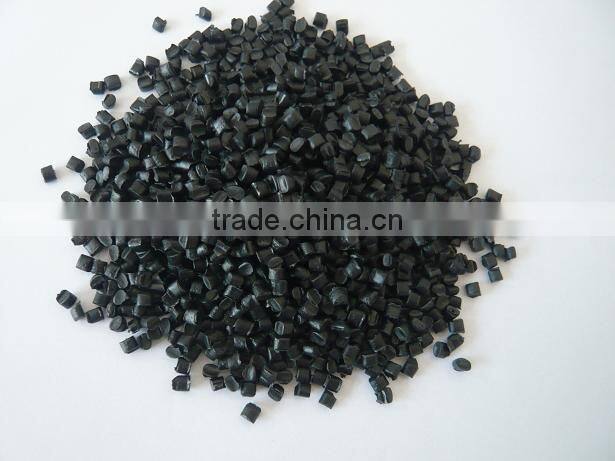

 masterbatch sample

Low Power Plastic Compounding Pelletizing Machine

Low Power Plastic Compounding Pelletizing Machine





Technical parameter for Compounding Pelletizing Machine

Mode

Diameter

L/D

Screw Rotary

Motor Power

Torque

Output

TSE-30B

31 mm

32-48

600 r/min

15 kw

119 N.m

5-40 kg/h

TSE-35A/B

35.6 mm

32-52

600 r/min

15-22 kw

119 N.m

20-60 kg/h

TSE-40B

41 mm

32-52

600 r/min

30 kw

239 N.m

90-150 kg/h

TSE-65B

62.4 mm

32-64

600 r/min

90 kw

716 N.m

200-300 kg/h

TSE-75B/C

71 mm

32-64

600 r/min

132/160 kw

1050/1273 N.m

350-600 kg/h

TSE-75D

71 mm

32-64

600 r/min

200-250 kw

1990 N.m

500-1000 kg/h

TSE-95B

93 mm

32-64

600 r/min

315 kw

2506 N.m

800-1200 kg/h

TSE-135A

133 mm

32-64

500 r/min

750 kw

7162 N.m

1500-2250 kg/h

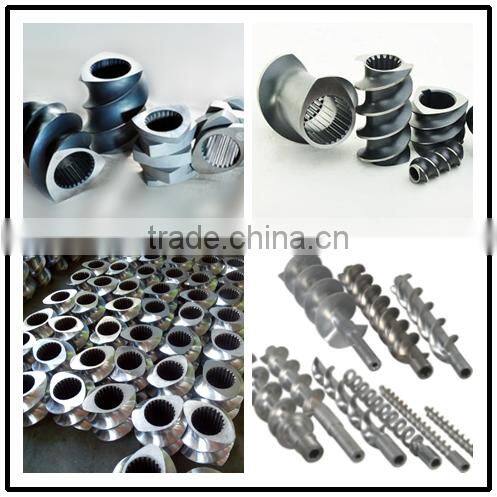

Detailed Parts



As manufacturer, we produce the screw element and barrles in our CNC center, quality can lead time can control very well here.



Screw element material: high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heating treatment. which is possessed with high corrosion-resistant and high function.  HRC: 60~62

Low Power Plastic Compounding Pelletizing Machine



Barrel material:45 # + α 101

Low Power Plastic Compounding Pelletizing Machine

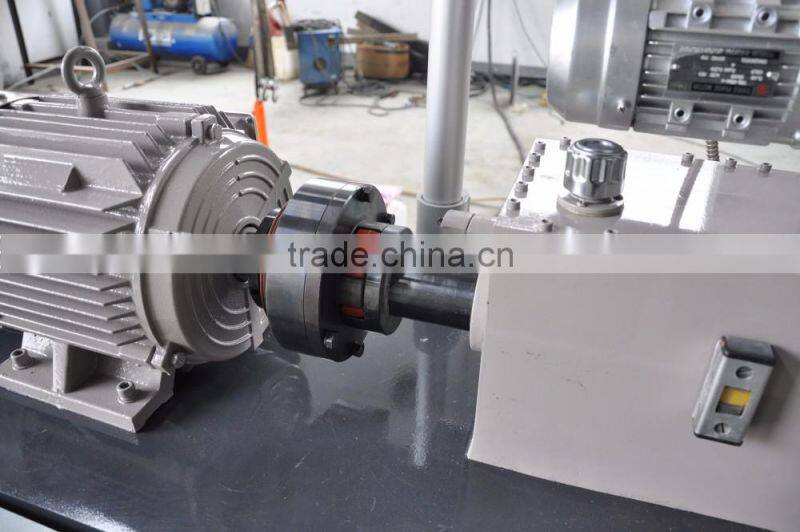

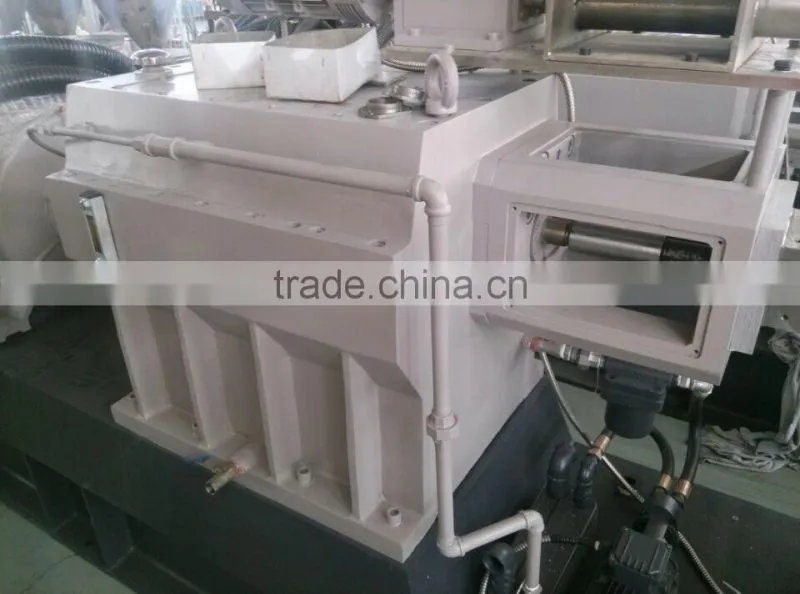

Gear box & safety cluth

Low Power Plastic Compounding Pelletizing MachineLow Power Plastic Compounding Pelletizing Machine



Our Services



Low Power Plastic Compounding Pelletizing Machine

Why did our Customers choose us?
1. Reply < 10 hours
2. Delivery time > 99%
3.Quality Control > 100%
4.After-sales Service > 100%



Who are we?
As a integrative professional plastic pellet extrusion machine supplier, we specialize in designing,

developing, manufacturing, and marketing of all kinds of twin screw extrusion ,single screw extrusion and two stage extrusion machine.



What can we do for you?
1. Good quality twin/single screw extrusion machine or other spart parts with competitive price.
2. Satisfying services.
3. OEM&ODM



Our Service

As for the products. we have passe CE. FCC certificates.

As for factory firm ability ,we have passed CEISOSGS. Our sincerity business commercial ethic is :''the business principle of best quality,customer always the first".

Sincerely welcome to contact us to made a good cooperation with us.



Packaging & Shipping



Wooden box package machine in case of borken, extra packing fee paid by customer;

film cover machine for free.

Low Power Plastic Compounding Pelletizing Machine



Company Information

 Dear friends, beside the single screw extruder machine, Nanjing Haisi Extrusion Equipment  also supply twin screw extruder machine, two stage extrusion machine for filler masterbatch, compounding masterbatch and PET bottle flakes recycling pellet.

Welcome to visit plant any time.







As extruder manufacturer with over 15 years experience, your ideal also support by OEM service support here.

Low Power Plastic Compounding Pelletizing MachineLow Power Plastic Compounding Pelletizing Machine
