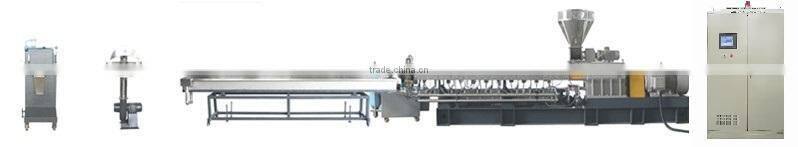

Double stage PP PE waste plastic pelletizing line/granulating machine
Technical data for SP two-stage line :
| Mode | Diameter | L/D | N (r/min) | Motor Power | Output | |
| SP 75-180 | TSE-75A | 71 mm | 24-48 | 400-500 | 90-110 kw | 300-600 |
| SP 75-180 | SJ 180 | 180 mm | 7-20 | 65-85 | 45-55 kw | kg/h |
Representative Materials Working Capability Schedule of SP 75-180
Twin/ Single-screw Two-stage Extruder (Reference Values)
| Process | Representative Materials | SP 75/180 |
| Heat-susceptible plastics | PVC cables, low smoke and low halogen, transparent and for medical use, package, and sole | 350-800 |
| Heat-susceptible plastics | PE peroxide crossing cables; PE silicon alkyl crossing cables; PE crossing piping; PE and EVA crossing shield | 280-600 |
Typical work :
It has been abroad applied to various thermo sensibility material series and great capability dehydration and volatilization work, such as PVC, XLPE, Zero halogen cable, shield material, high concentrationcarbon black masterbatch, after treatment of rubber dehydrating.
Characteristic :
♦ The first stage is SHJ twin screw extruder without die. Through the combination of barrel and screw, the extruder can exert its strong ability the thermo sensibility material like PVC melting, compounding, dispersing and decentralizing under the condition of no back pressure.
♦ The second stage is SJ single screw extruder. Because of the lower rotating speed, it can melti, compound lengthways and form strands steadily, avoiding over heating.
TSE-75
SJ 180
Detail :
Nanjing Haisi Extrusion Equipment Co., Ltd. has a professional sales team, personal contact with customers, regular reminders and solve installation, maintenance, repair and other problems encountered by customers in the mechanical operation of the equipment failure analysis and quick to do the maintenance program, in any country and region can get our professional and technical personnel of the most timely and quality service.
Before-sale
• Introduce products in detai • Recommend suitable solution • Offer test
During manufacturing
• Provide layout and engineering conditions • Offer screw plan and related documents
• Inform the project processing status • Insure the product designed in accordance with technical document
After-sale
• Provide installation, commissioning and training • Offer spare parts
• Provide necessary technical support and update information.
Air-cooling hot face pelletizing line
Horizontal water-ring hot-face pelletizing line
Strand pelletizing line
Underwater pelletizing line
