Nanjing Haisi SP75-180 Two-Stage Line Plastic Extruder For Sale
I . The Features of SP Two-Stage Line :
1.High reduction ratio and efficiency,
2.Compact structure and small volume,
3.Stable operation and low noise,
4.Reliable operation and long service life,
5.Powerful overload capacity, strong resistance to impact, small moment of inertia,and applicable to occasions with frequent stars and positive and negative rotating.
| Mode | D(mm) | L/D | Nmax(r/min) | Power(kw) | Qutput(kg/h) | |
| SP50-120 | TSE-50A | 50.5 | 24-48 | 500 | 37-45 | 150-300 |
| SJ120 | 120 | 7-20 | 65-85 | 30-37 | ||
SP65-120 | TSE-65A | 62.4 | 24-48 | 400-500 | 55-75 | 200-500 |
| SJ150 | 150 | 7-20 | 65-85 | 37-45 | ||
| SP75-180 | TSE-75A | 71 | 24-48 | 400-500 | 90-110 | 300-600 |
| SJ180 | 180 | 7-20 | 65-85 | 45-55 | ||
| SP95-200 | TSE-95A | 93 | 24-48 | 300 | 160-220 | 500-1000 |
| SJ200 | 200 | 7-20 | 85 | 90-110 | ||
II. you can use our SP Two-Stage extruder for:
1.polymer compounding and filler masterbatch making,
2. engineering polymer and glass fiber reinforcement,
3. functional and color masterbatch extrusion,
4.cable compounds,
5. shoe sole compounds,
6. powder coating materials extusion,
7. degassing and devolatilization,
8. direct extrusion.
III.The Characteristics of SP Two-Stage Extruder :

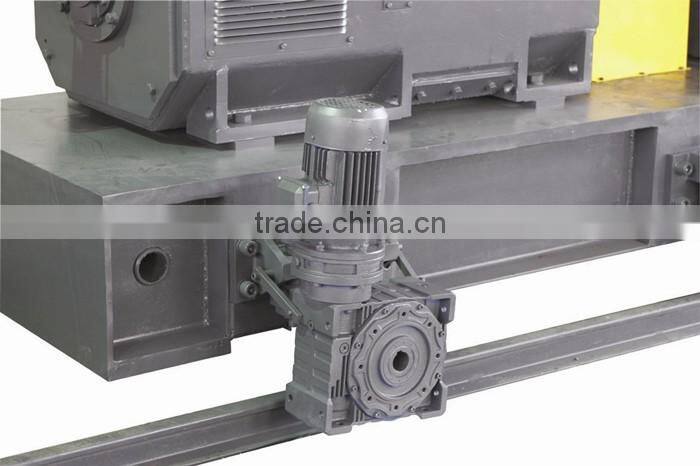

1.The gearbox:
· New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.
· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.

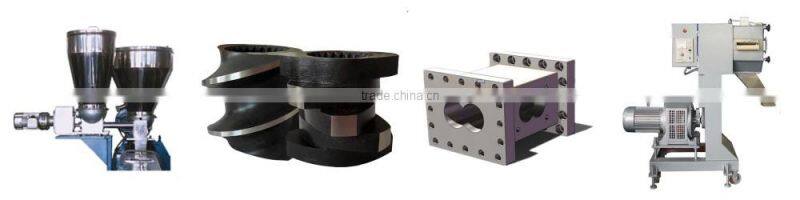

2.The feeding system
· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.
3.Screw
· The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.
· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.
4.The barrel
· Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.
· According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
5.The heater
· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.

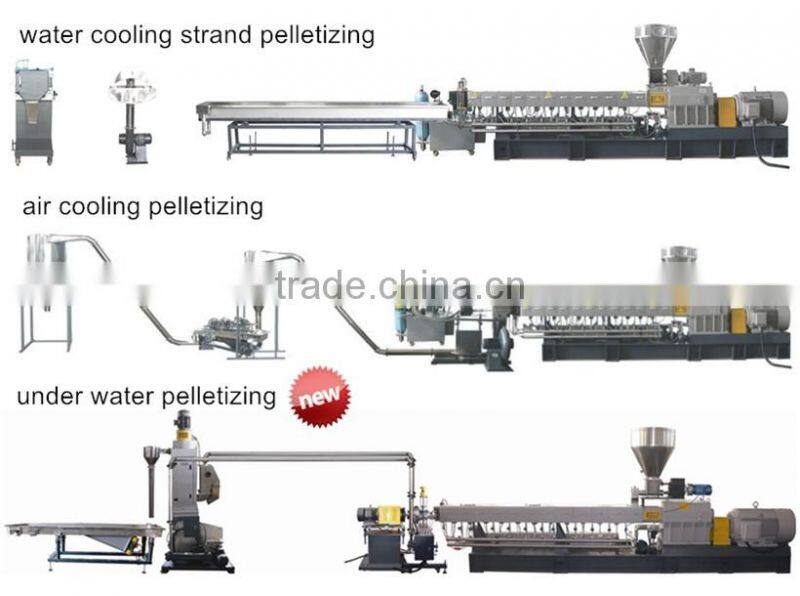

6.Pelletizing
· Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.
1.Quality guaranteed
2.Support factory visit
3.Technology supports
4.We are the manufactuer
Nanjing Haisi Extrusion Equipment Co., Ltd. is a HighTech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and sales service.Our products are single screw extruders, corotating twinscrew compounding extruders,twostage compounding extruders, auxiliary equipment, etc.
Believe yourself, and cooperating with HAISI is your wise decision; believe us ,since "high quality and service" is our promise forever!
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and sales service and has specialized in extruder industry for ten years,leading screw barrel manufacturer in China.
2. Q:What's Haisi capacity?
R:Company is in strict accordance with CE and ISO9001 quality certification system.There are over 200 models of extruders and spare parts.
3. Q:What's the delivery time?
R:for regular size, we have finished stock and semi-finished stock, 2weeks max enough for customized, normally 3~4weeks.
4.Q:How about Haisi screw extruder quality and price?
R:Germany Technical invested, top quality in China with competitive price and globle after-sale service
5. Q:what's the life time and guarantee buy from Haisi screw extruder?
R:3~5years life time for nitriding ones and bimtallic ones will be longer One year min. Guarantee.
6.Q:Where is Haisi factory and how to reach there?
R:At Lishui,Nanjing City,Jiangsu Province. It's near Shanghai City,If you want to visit us,we can pick up you
