PP/PE/PET/PBT color masterbatch pelletizer cost
Representative Materials Working Capability Schedule for Twin Screw Extruder
Process | Representative materials | Operating capability Kg/h (reference) |
Mixing nature-changing | PE/ PP/ PS+SBS; PA+EPDM; PP+NBR; EVA +Silicon rubber, etc. | 100-180 |
PE/ PA/ PC/ CPE+ABS(alloy); PBT+PET; PP+ PE, etc. | 80-180 | |
Filling nature-changing | PE/ PP/ EVA, ect. + Calcium carbonate/ talcum powder/ titanic powder; ABS/PC/PS, etc. +aluminum hydroxide/ magnesium hydroxide/ antimony oxide. | 100-200 |
PP/ PA/ ABS+ ferrous powder/ sulphuric powder/ ceramic powder | 120-250 | |
Functional machine pellets | PP/ PA/ ABS/ PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets | 100-180 |
PE/ PP/ PS, etc+ starch: de-composing machine pellets | 90-150 | |
PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets | 70-100 | |
PE/ EVA/ ABS, etc.+ carbon black; black machine pellets | 50-100 | |
Colored machine pellets | PE/ PP/ ABS/ AS/ PA/ EVA/ PET +pigment and auxiliary | 80-150 |
Intensified glass fibres and carbon fibres | PP/ PBT/ ABS/ AS/ PA/ PC/ POM/ PPS/ PET, etc. + long fires/ small fibres/ carbon fibres/ crystals and so on, etc. | 100-180 |
Various cables | HDPE/ LDPE/ LLDPE/ MDPE/ EVA/ PVC/ PP, etc. insulating cables/ coatings; PE peroxide silicon alkyl crossing cables; radialization crossing cables. | 80-180 |
Special materials | EVA heat-melting glue, polyurethane, fluorin rubber, fluorine plastics , PP cigarette filtering material and TPR sole material | 40-200 |
Reaction extruding | Polyamide condensate, polyamide melting polymerization, polyamide polyethene-adding, polycarbonate condensate, etc. | 80-150 |
Exhausting and volatilization | Polystyrene oxide, high-absorbing resin, chlorine sulphur piolyethylene | 50-100 |
Powder paint | Polyester, ring oxide, lactide, polyurethane, acrylate | 180-280 |
masterbatch sample

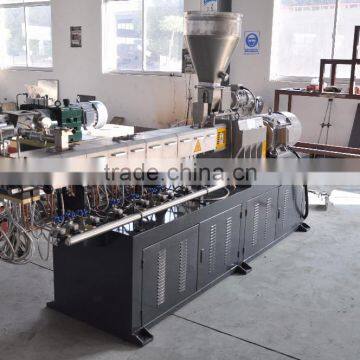

Technical parameter for the masterbatch twin screw extruder
Mode | Diameter | L/D | Screw Rotary | Motor Power | Torque | Output |
TSE-30B | 31 mm | 32-48 | 600 r/min | 15 kw | 119 N.m | 5-40 kg/h |
TSE-35A/B | 35.6 mm | 32-52 | 600 r/min | 15-22 kw | 119 N.m | 20-60 kg/h |
TSE-40B | 41 mm | 32-52 | 600 r/min | 30 kw | 239 N.m | 90-150 kg/h |
TSE-65B | 62.4 mm | 32-64 | 600 r/min | 90 kw | 716 N.m | 200-300 kg/h |
TSE-75B/C | 71 mm | 32-64 | 600 r/min | 132/160 kw | 1050/1273 N.m | 350-600 kg/h |
TSE-75D | 71 mm | 32-64 | 600 r/min | 200-250 kw | 1990 N.m | 500-1000 kg/h |
TSE-95B | 93 mm | 32-64 | 600 r/min | 315 kw | 2506 N.m | 800-1200 kg/h |
TSE-135A | 133 mm | 32-64 | 500 r/min | 750 kw | 7162 N.m | 1500-2250 kg/h |
Gear box
New-style project of parallel three-axises driving makes the convey axis,convey chain,decelerate and the torque assignment get together,which keeo it compact,and the key bearings are imported.
The select material of drive components is dainty. Including super intension alloy cementiteing steel,cementiting and quenching ,gear grinding technics ,strengthening of tooth face.So they can ensure high torque,high precision and low noise.
Soakage and coerce lubrication integrate smoothly.When the hydraulic circuit is over pressed, it alarms.

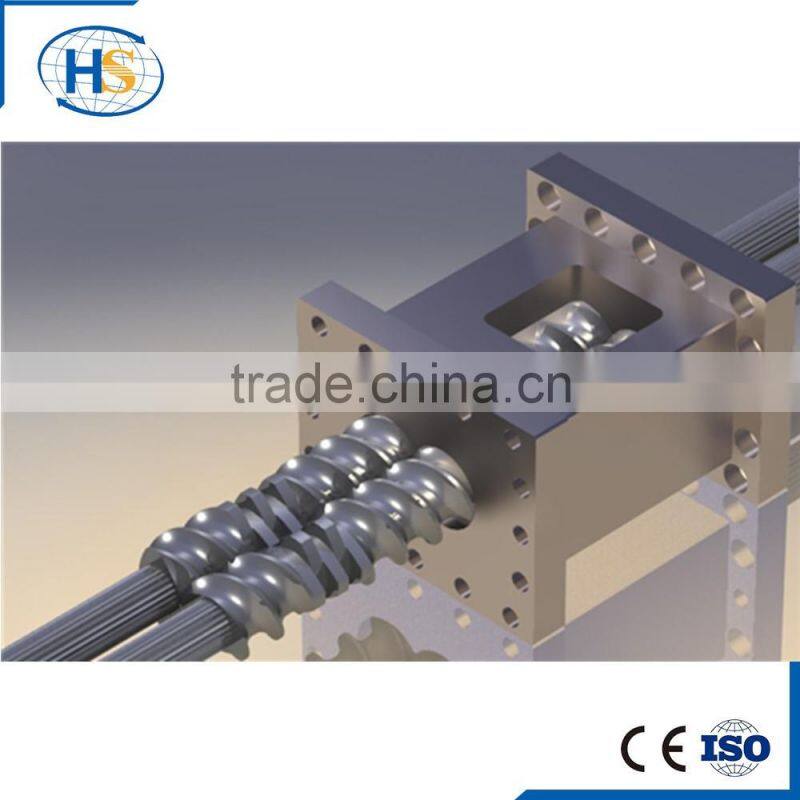

Screw and barrel:
Screw material: W6Mo5Cr4V2 high speed tool steel
Barrel material: 45# steel barrel body, inside line is made of bi-metal alloy.
Screw shaft material: 40CrNiMo
building blocks barrel and screw can adjust different material
We also can supply OEM service based on your drawing.

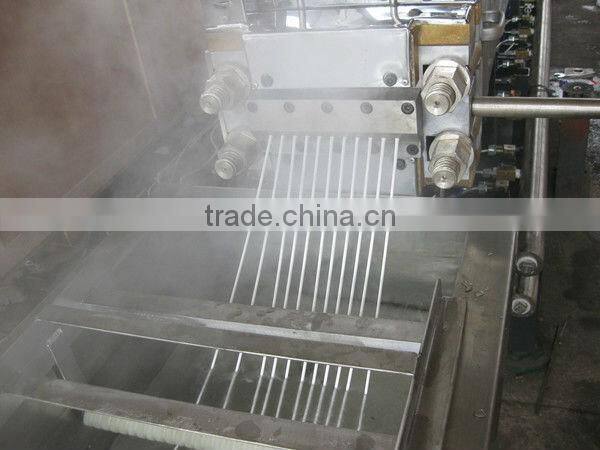

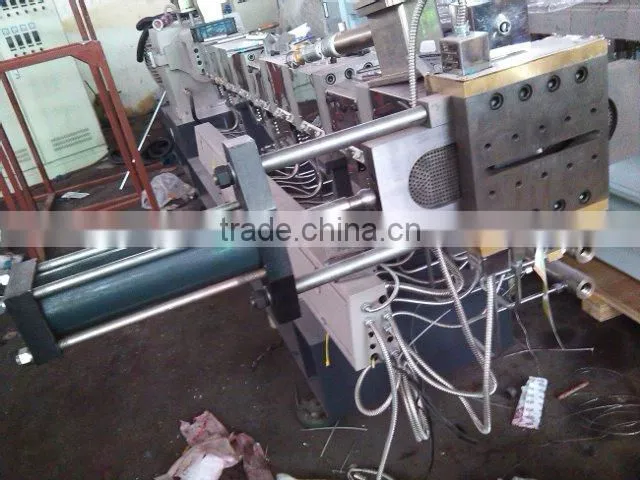

Die head section

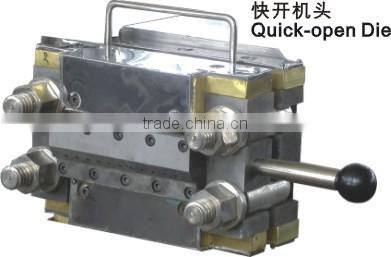

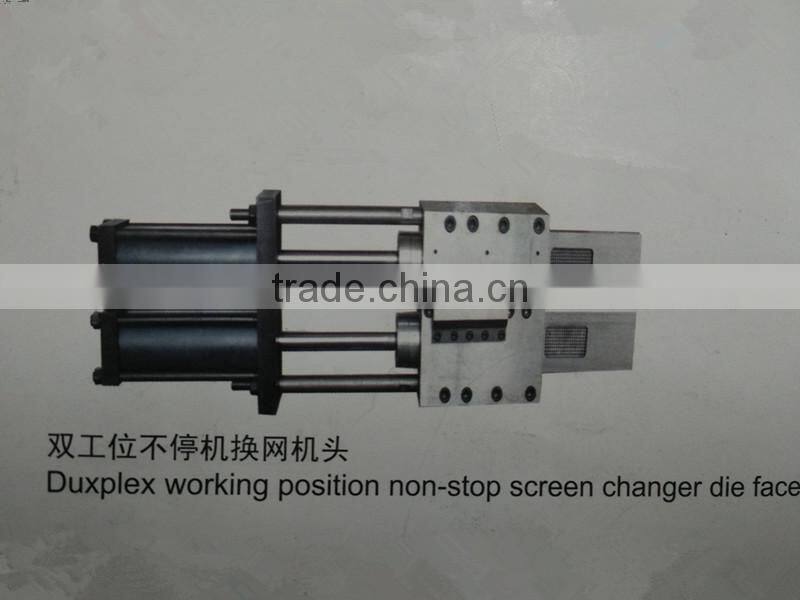

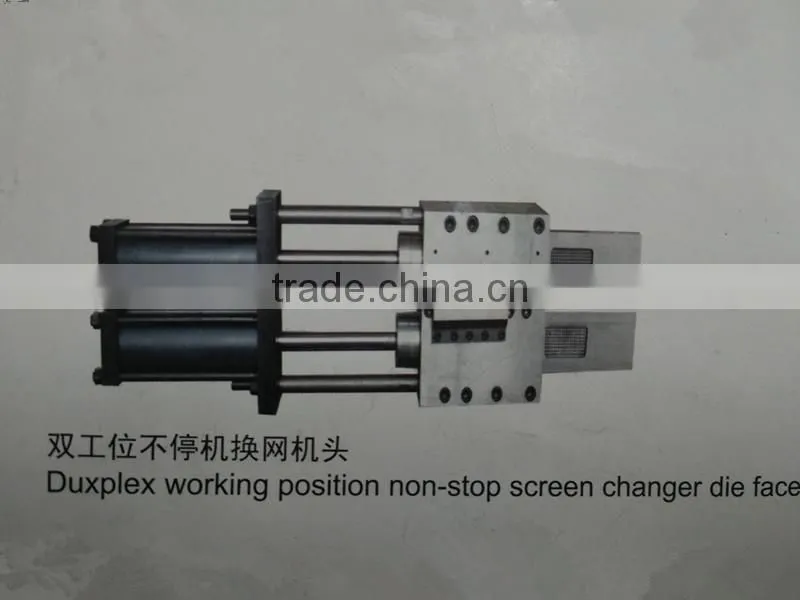

Quick open die, hydraulic screen changer, non-stop hydraulic screen chaner, special customized designed ones.
Wooden box package machine in case of borken, extra packing fee paid by customer;
film cover machine for free.
Dear friends, beside the single screw extruder machine, Nanjing Haisi Extrusion Equipment also supply twin screw extruder machine, two stage extrusion machine for filler masterbatch, compounding masterbatch and PET bottle flakes recycling pellet.

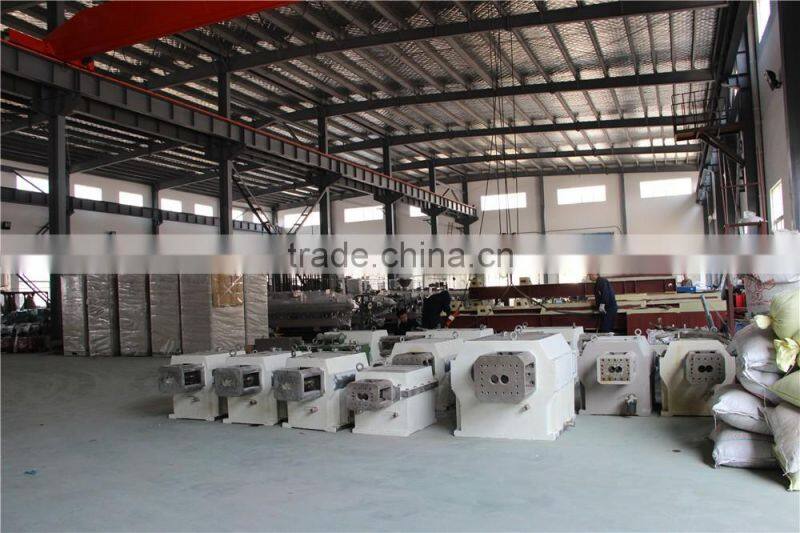

Welcome to visit plant any time.
As extruder manufacturer with over 15 years experience, your ideal also support by OEM service support here.
