SRL-50A Series Plastic High Speed Powder Mixer
The Technical Data of High Speed Mixer
Type |
Volume (L) |
Effective Volume (L) |
Mixing time (min/batch) |
Rotate speed (r/min) |
Motor (Kw) |
Capacity (kg/hour) |
SHR-5 |
5 |
3 |
6-8 |
1500 |
1.1 |
10 |
SHR-10 |
10 |
7 |
6-8 |
1500 |
3 |
20 |
SHR-25 |
25 |
20 |
6-8 |
1500 |
5.5 |
50 |
SHR-50 |
50 |
35 |
6-10 |
750/1500 |
7/11 |
100 |
SHR-100 |
100 |
75 |
6-10 |
650/1300 |
14/22 |
200 |
SHR-200 |
200 |
150 |
6-10 |
475/950 |
30/42 |
400 |
SHR-300 |
300 |
225 |
6-10 |
430/860 |
40/55 |
500 |
SHR-500 |
500 |
375 |
8-12 |
330/660 |
55/75 |
800 |
SHR-800 |
800 |
520 |
8-12 |
395/790 |
83/110 |
1400 |
SHR-1000 |
1000 |
650 |
8-14 |
330/660 |
90/132 |
1600 |
SHR-1300 |
1300 |
850 |
8-14 |
330/660 |
132/200 |
2100 |
Plastic Material High Speed Hot Mixer , SRL-W Plastic Horizontal Mixter , Plastic Mixer , Plastic High Speed Mixter
1.Composed of high speed hot mixer, cold mixer...
2.Mixing fast and even
3.Easily cleaning, compact.

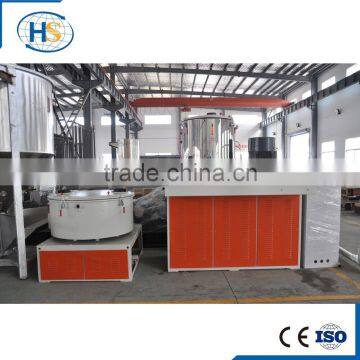

Mainly composed of high speed hot mixer, cold mixer, and electric control components etc. It is widely used in drying mixing blending and cooling the powder, liquid, granulate of plastics, rubber, dyestuffs, foodstuffs, chemical, Caco3 etc.
Plastic Material High Speed Hot Mixer ,SRL-W Plastic Horizontal Mixter , Plastic Mixer , Plastic High Speed Mixter
1.It is used in mixing, drying, coloring and other processing. It is the most ideal equipment for producing shaped plastic material and plastic.
2.The technology of the main shaft sealed apparatus has got the national patent. ( patent number ZL96Z430641) with electric and steam heating functions.
3.Two layer of sealing technology is adopted in the pot cover. The opening of the heating mixed cover adopted the air opening device and the opening of the cooling mixed cover adopted hydraulic pressure control system.
4.The electrical control section with the programmable logic control adopted well-known imported meters and control components.
5.It is equipped with the pulse dust-cleaning recovery device.
6. The blades have been passed the test of the dynamic and static balance testing machine
7.You may choose the simple and easy feeding system.
Our machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
Company Information
Nanjing Haisi Extrusion Equipment Co., Ltd. has a professional sales team, personal contact with customers, regular reminders and solve installation, maintenance, repair and other problems encountered by customers in the mechanical operation of the equipment failure analysis and quick to do the maintenance program, in any country and region can get our professional and technical personnel of the most timely and quality service.
Ce and ISO 9001 Certificates
Service Stystem
Before-sale
• Introduce products in detail • Recommend suitable solution • Offer test
During manufacturing
• Provide layout and engineering conditions • Offer screw plan and related documents
• Inform the project processing status • Insure the product designed in accordance with technical document
After-sale
• Provide installation, commissioning and training • Offer spare parts
• Provide necessary technical support and update information.
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What's Haisi capacity?
R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.
3. Q: What's the delivery time?
R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz reply to me directly if you have any question.
