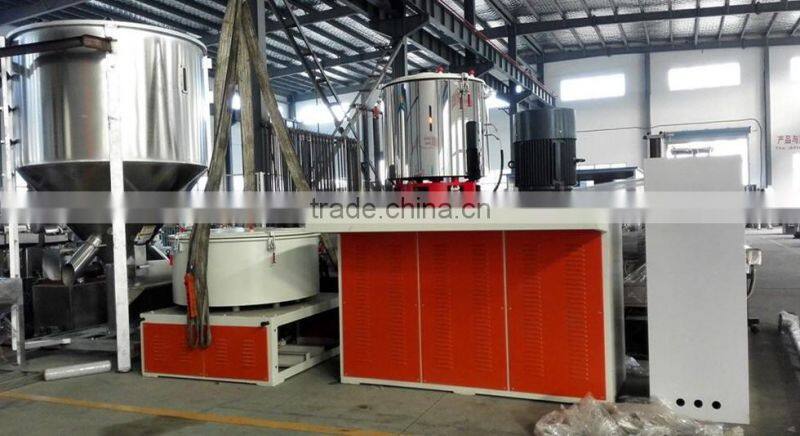

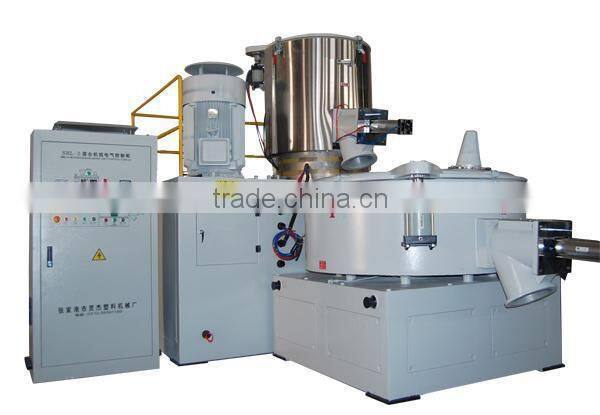

PVC/PP/PE/PC/ABS High Speed Plastic Granules Mixer Unit
Application of High Speed Mixer:
SHR mixing machine is widely applied to mixing, stirring, drying and coloring of various materials in industries of plastic, rubber, pharmacy, fuel, food, daily chemicals, etc. SHR series mixers adopt advanced design, so it convenient and safe for operation. It offers small size, light weight, high efficiency, low energy consumption, and low noise.
Technical Data of High Speed Mixer
| Mode | Total Volume | Effective Volume | Power | Rotary Speed | Heating Mode | Discharging Mode |
|
SHR-5A |
5L | 3L | 1.1KW | 1400RPM | Self-friction | Hand Work |
|
SHR-10A |
10L | 7L | 3KW | 2000RPM | Self-friction | Hand Work |
| SHR-25A | 25L | 20L | 5.5KW | 1440RPM | Electric or Steam | Peneumatics |
| SHR-50A | 50L | 35L | 7/11/3KW | 750/1500RPM | Electric or Steam | Peneumatics |
| SHR-100A | 100L | 75L | 14/22/6KW | 650/1300RPM | Electric or Steam | Peneumatics |
| SHR-200A | 200L | 150L | 20/42/9KW | 475/950RPM | Electric or Steam | Peneumatics |
| SHR-300A | 300L | 225L | 40/55/9KW | 475/950RPM | Electric or Steam | Peneumatics |
| SHR-500A | 500L | 375L | 47/67/12KW | 430/860RPM | Electric or Steam | Peneumatics |
| SHR-800A | 800L | 600L | 83/110/15KW | 370/740RPM | Electric or Steam | Peneumatics |
|
SHR-1000A |
1000L | 750L | 110/160/28KW | 325/650RPM | Self-friction | Peneumatics |
|
SHR-200C |
200L | 150L | 30/42KW | 650/1300RPM | Self-friction | Peneumatics |
|
SHR-300C |
300L | 225L | 47/67KW | 475/950RPM | Self-friction | Peneumatics |
1.The technology of sealing mainshaft is given the state patent.
2.The technology of two layers of sealing is adopted in its pot cover.
3.It has self-friction heating and electric heating modes.
4.The discharging mode shave the temperature-automatic control and the manual conrol.
5.Its blades are made of stainless steel. They passed the test of dnamic balance and static equilibrium.
6.Its electric control section adopts famous control components and temperature-control meters
Plastic Material High Speed Hot Mixer ,SRL-W Plastic Horizontal Mixter , Plastic Mixer , Plastic High Speed Mixter
1.It is used in mixing, drying, coloring and other processing. It is the most ideal equipment for producing shaped plastic material and plastic.
2.The technology of the main shaft sealed apparatus has got the national patent. ( patent number ZL96Z430641) with electric and steam heating functions.
3.Two layer of sealing technology is adopted in the pot cover. The opening of the heating mixed cover adopted the air opening device and the opening of the cooling mixed cover adopted hydraulic pressure control system.
4.The electrical control section with the programmable logic control adopted well-known imported meters and control components.
5.It is equipped with the pulse dust-cleaning recovery device.
6. The blades have been passed the test of the dynamic and static balance testing machine
7.You may choose the simple and easy feeding system.
Our machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
