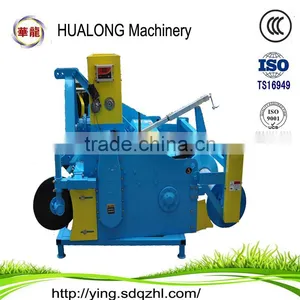

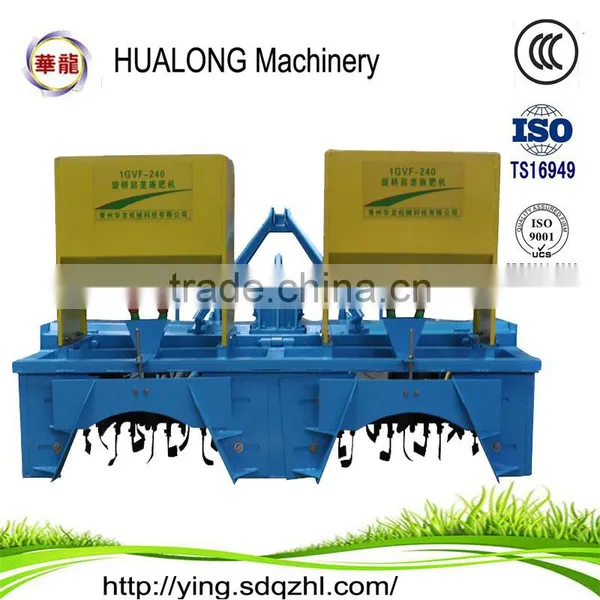

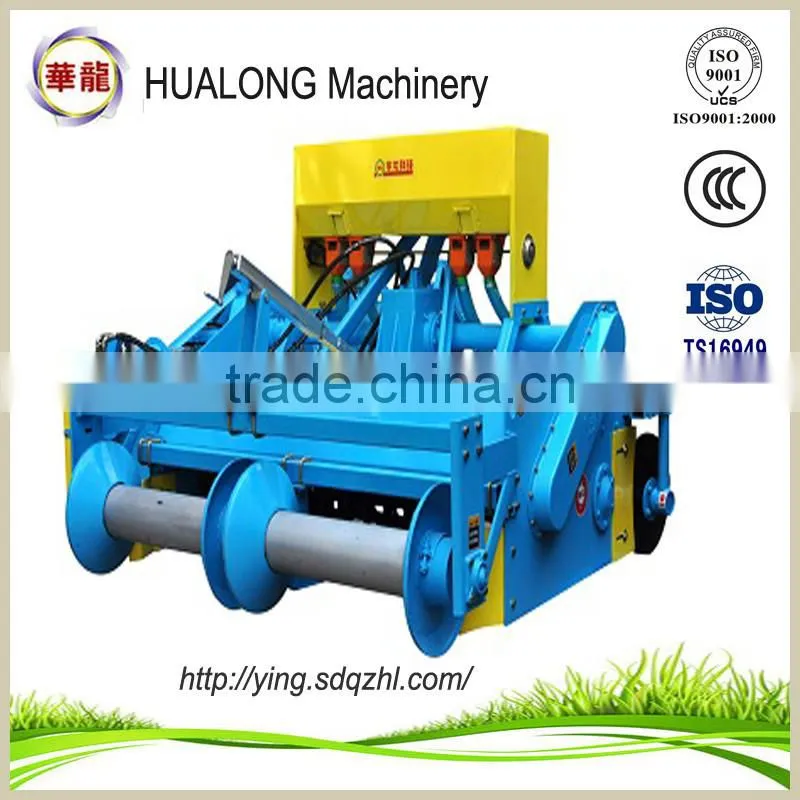

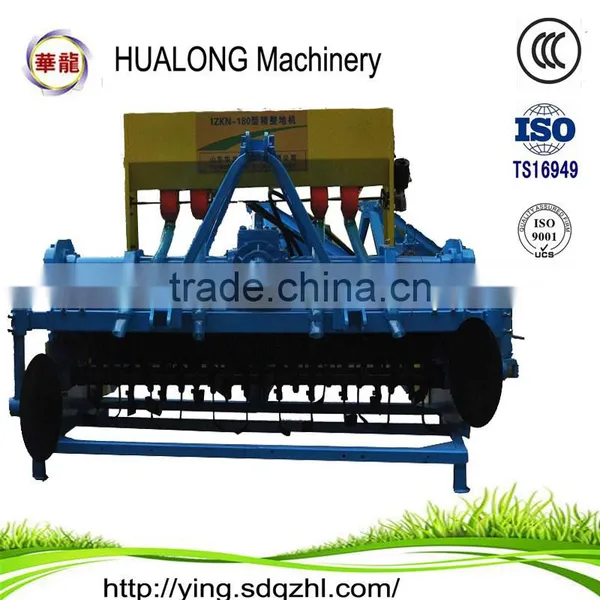

1GVF-240 agricultural equipment for soil preparation machine rotary cultivator
- 100 Set / Sets per Month
- Qingdao or Shanghai or Tianjin China
- T/T Credit Card
Product Details
Condition: | New | Type: | Farm Cultivator | Power Type: | Gasoline |
Power(W): | 62.5~91.9KW | Certification: | ISO9001 | Warranty: | 3years |
Use: | Tilling | Place of Origin: | Shandong, China | Brand Name: | HUALONG |
Model Number: | 1GVF-240 | Weight: | 780KG | Dimension(L*W*H): | 2200mm*2580mm*1200mm |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

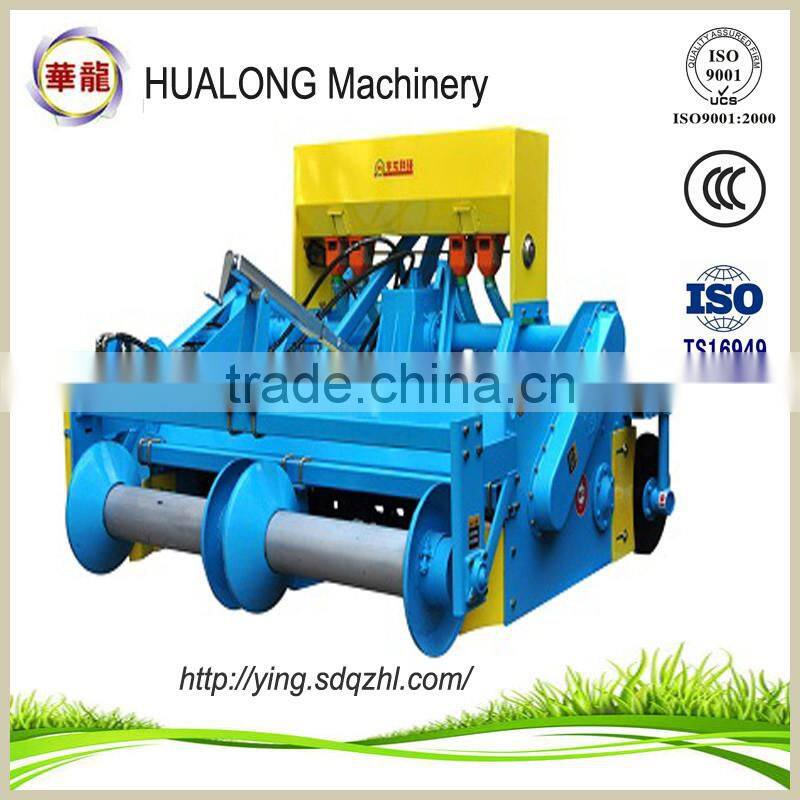

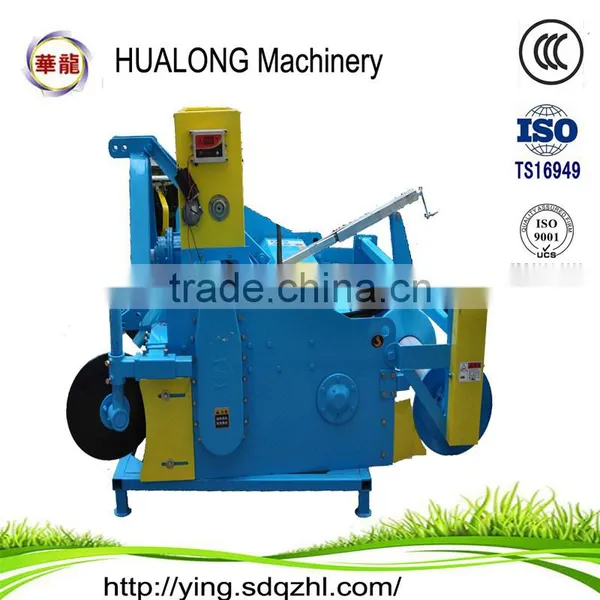

1GVF-240 agricultural equipment for soil preparation machine rotary cultivator
Soil preparation machine model | 1GVFM-240 | |||
Soil preparation machine working width(cm) | 240 | |||
Tilling depth(cm) | ≥12 | |||
Soil preparation soil ridging height(cm) | 25-30 | |||
Ridging distance(cm) | 100-125 | |||
Ridging number(line) | 2 | |||
Width of ridge top(cm) | 30-50 | |||
Rotary blade form | IT245 | |||
tractor | Mating power(kW) | 62.5~91.9 | ||
Rated speed(r/min) | 540 | 720 | 760 | |
Rotary blade rotational speed(r/min) | 200 | 265 | 240 | |
The maximum radius of gyration of the knife roller (mm) | 245 | |||
Quantity of rotary knife | 62 | |||
Linkage | Three point suspension | |||
Walking speed (km/h) | 2~5 | |||
productivity(hm2/h) | 0.48~0.8 | |||
Weight (kg) | 780 | |||
Dimension(mm) (length× width× height) | 2200×2580×1200 | |||
Fertilization depth(cm) | 5~20(adjustable) | |||
Fertilizing amount(kg/Mu) (1Mu=0.06667 hectare) | 25~85 | |||
Volume of fertilizer box(L) | 150*2 | |||
Gear oil filling quantity (kg) | 6 | |||
Transport clearance (mm) | ≥300 |

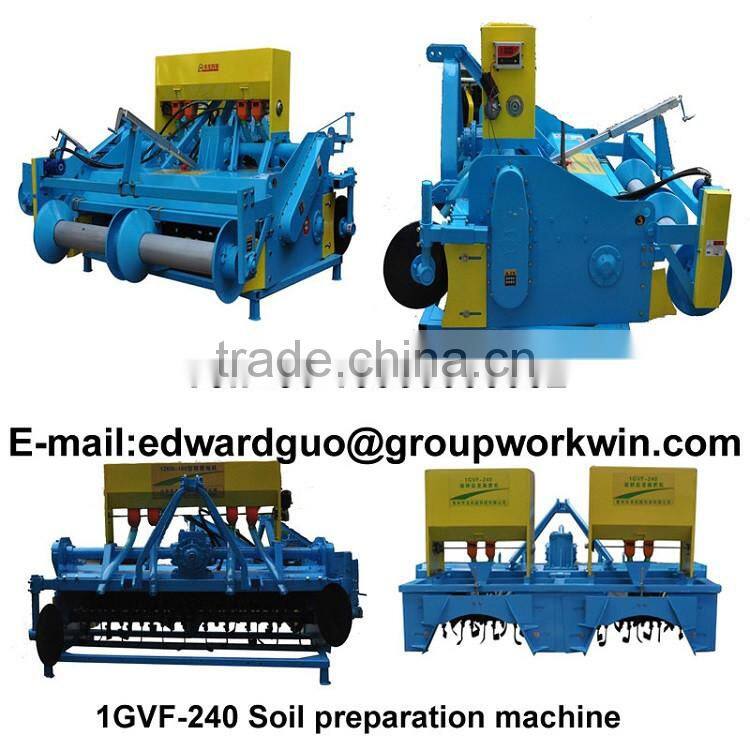

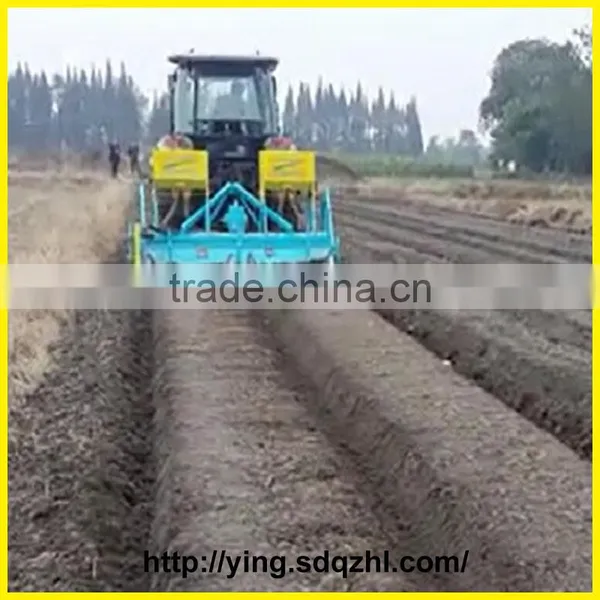

1GVF-240 Soil preparation machine is implements the power output shaft of the tractor driver, it is the composite motion using rotary tiller shaft blade rotation and machine forward, about not cultivated land and has a ploughed field is rotary tillage, ridging and fertilization. The performance characteristics of soil crushing ability, a rotary tillage can achieve several effect of general rake.

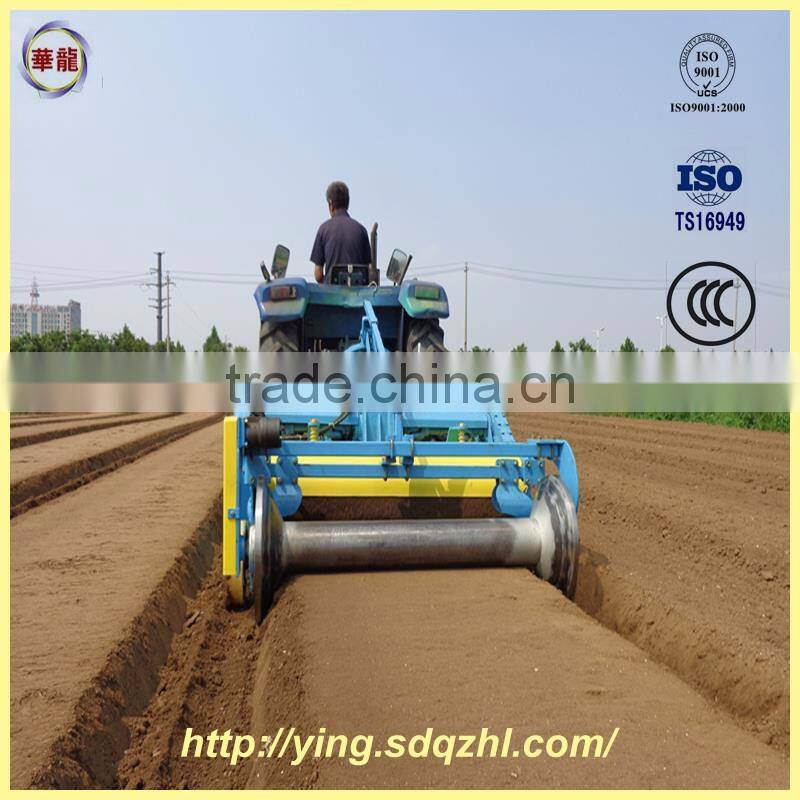

It is suitable for rotary tillage, ridging, fertilization and filming for not only cultivated land and has a ploughed field, When the absolute moisture of soil is 15%~25%, it can content to work. Beyond the scope, it is likely to lead to the decline of performance, shorten the service life of the machine.
1GVF-240 Soil preparation machine is divided into two kinds of single and double ridge machine. The single ridge machine matched the tractor of 35-50 horsepower and the double ridge machine matched tractor more than 85 horsepower. Its structure character is good rigidity, reliable work. Because working width is larger than the outer edge of tractor and NO TYRE impression after cultivation, the surface is smooth, cover tightly, high efficiency, low fuel consumption.
1GVF-240 Soil preparation machine model: 1G said tillage equipment, V said ridging operation, F said fertilization, 240 said working width (cm).
•Save Money: Rotary, ridge, filming and can complete fertilizing operation. This can make your work more easy and effortless by saving of time, labor and more Money.
•Practical: Simple in operating. General dynamics interface.
•Flexible: Single and double ridge optional, can selectively equip with film function and can be customized.

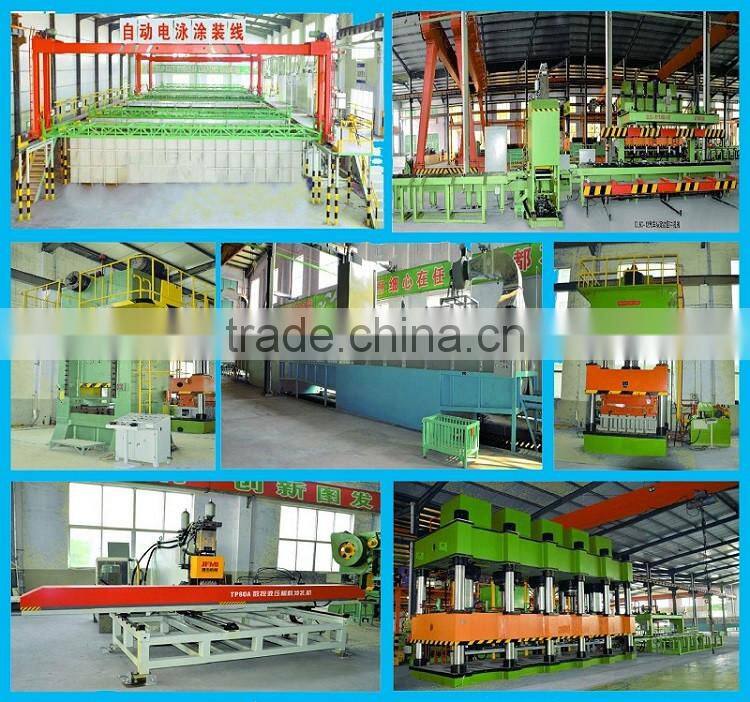

Production lines

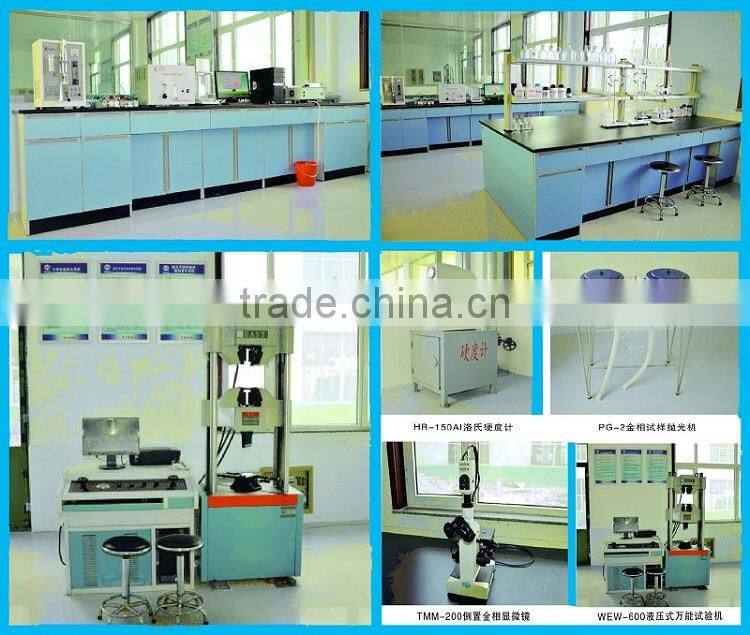

Detection
Packing and Shipping:
1) Port of loading:Qingdao/Shanghai/Tianjin,China.
2)Delivery period: 30 days after drawing confirmed bu buyer.
3)Package: the accessories packed in plywood cases and the main body in nude.
4)Warranty period:3 years.
5) Valid time: 60 days.
Our Services:
1) Excellent production team.
2) Best quality products.
3) Professional after-sales.
4) Prompt reply for your inquiry and feedback.
