Specifications

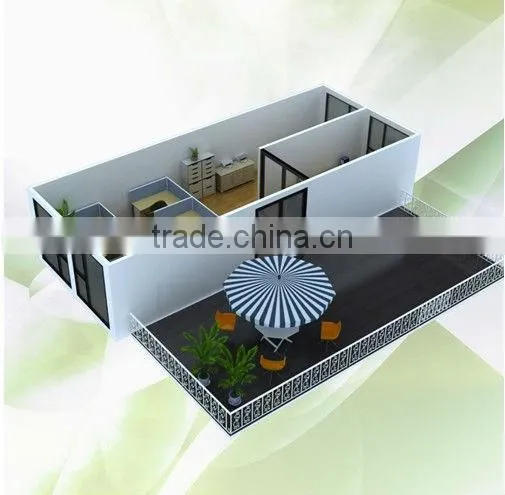

Well container house for workersversatile useage
high quality & nice look
safe & comfortable
convenient to set up
Sort |
Name |
Specification |
|
1 |
Specification |
length |
According to clients'requirement. |
2 |
Width |
According to clients'requirement. |
|
3 |
Ridge height |
According to clients'requirement. |
|
4 |
Inside height |
According to clients'requirement. |
|
5 |
Standard accessory |
Wall Panel |
75mm EPS sandwich panel, 0.42mm color steel sheet ,density of polystyrene foam (EPS sandwich panel) is 12kg/m3, Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k. |
6 |
Roof Panel |
50mm EPS sandwich panel, 0.35mm -0.42mm color steel sheet, density of polystyrene foam is 12kg/m3 . Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/·k. |
|
7 |
Door(D-1) |
Steel security door with dimensions of 840x1950mm, furnished with a cylinder lock with 3keys. Doorframe is made of Stainless steel, 50mm thickness |
|
8 |
Door(D-2) |
EPS sandwich panel door with dimensions of 750x2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|
9 |
Window(W-1) |
Color steel sliding window with dimension of 1100mmx800mm, vertically sliding window or horizontally sliding window |
|
10 |
Window(W-2) |
Color steel sliding window with dimension of 1100mmx400mm, vertically sliding window or horizontally sliding window , |
|
13 |
Channel beams |
material:Q235. Painted |
|
14 |
Column |
material:Q235, Galvanized |
|
15 |
Roof beam |
The trusses are composed of Q235 steel , Galvanized |
|
17 |
Option |
Elevated ceiling |
Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel |
18 |
Elevated floor |
Steel structure with 14mm plywood |
|
19 |
Decorative floor |
PVC, laminated or ceramic tile |
|
20 |
Drainage system |
Provided plan, design and construction |
|
21 |
Electric system |
Provided plan, design and construction |
|
22 |
Technical parameter |
Bearing load |
50kg/m2 |
23 |
Wind pressure: |
0.5KN/M2 |
|
24 |
Fire proof |
B2 grade |
|
25 |
Temperature resistant |
-15--50 |
|
26 |
Earthquake resistant |
8-magnitude earthquake |
Usage:
The house has the following features: light weight, convenient and fast assembling and shipment, many-times disassembling, high rate of reuse. It can be applied to office, command posts, dormitories, meeting rooms,
warehouses, shops, additional storey on building roof and temporary houses in the field of building, railways, highways,
water conservancy projects, electric power, oil, business, tourism, and military use. And the houses are air-tight, heat-insulating, warm-keeping, waterproof and anti-corrosive.
