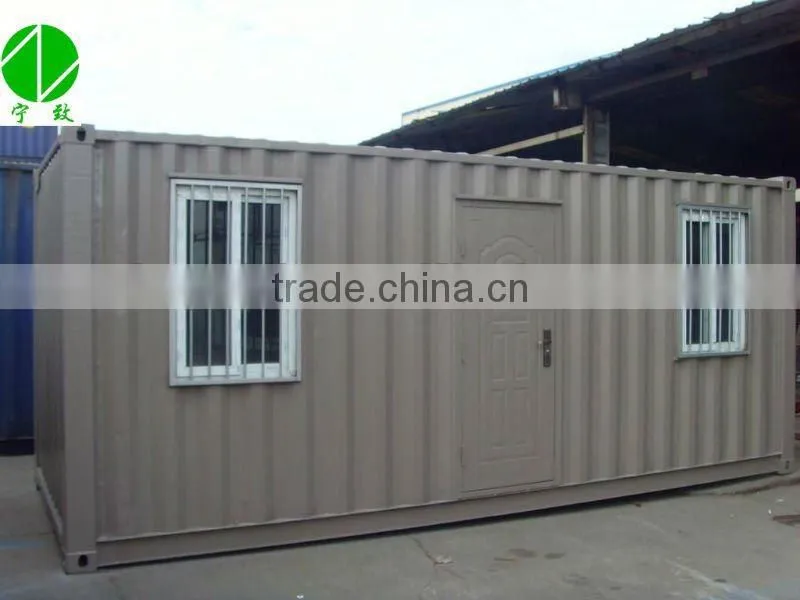

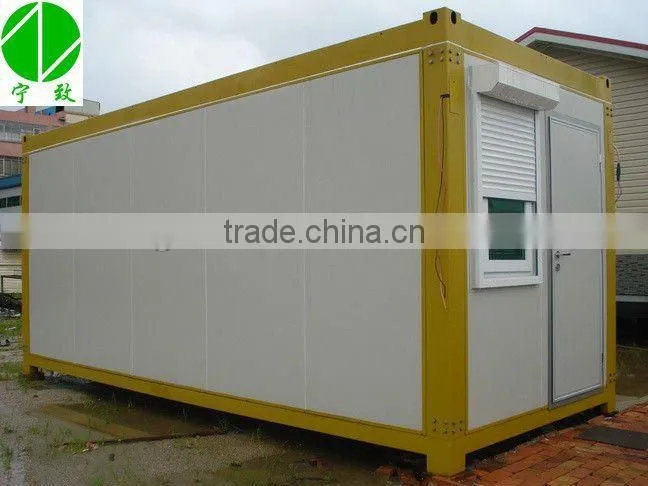

Garden House Facory With High Quality

Specifications

 garden house  facory with high quality

1. Specification:

Length: no limited

Width:  less than 11m

Wall height: 2600mm/2800mm

Clear height: 2600mm/2800mm

2. Details:

1) Wall board&false ceiling:

75mm thickness double color steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k.

2) roof board:

color steel corrugated sheet, 0.5mm thickness

3) Outside Door :

Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.

4) Inside Door :

SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

5) window 1:

PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.

window 2:

PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen.

5) Channel:

Galvanized Steel Plain Sheet press moulding Material: Q235. Painted

6) Post:

Square steel tube Material: Q235. Painted

6) roof beam:

Square steel tube Material: Q235. Painted

3. Option:

Decorative floor: PVC, laminated or ceramic tile

Draining and Electricity system: Provided plan, design and construction

4. Packaging details:

flat packages for container shipping

5. Necessary information:

1. What the house will be used for, dormitory or home or warehouse?

2. how many square meters do you need or how many people will live in? if you have exact dimension: Length, width, height, eave height, roof pitch, etc, that's will be fine.

3. Doors and windows: Dimension, quantity, position to put them.

4. Local climate: the weather, Wind speed, snow load, etc.
5. Insulation material: Sandwich panel or steel sheet.
6. Is there any materials that are not allowed to import into the country where the house is planning to use?
7. If you have other requirements, such as fire proofing, isolated roof, etc, please also inform us.
8. It's better if you have your own drawings or pictures. Please send them to us. Thanks!
