Help CenterPrefabricated Modified Shipping Container Homes
Related Products
Specifications
container home1.Engegy-saving & eco-friendly
2.Quick installation
3.Safe and durable
4.Easy to transport and assemble

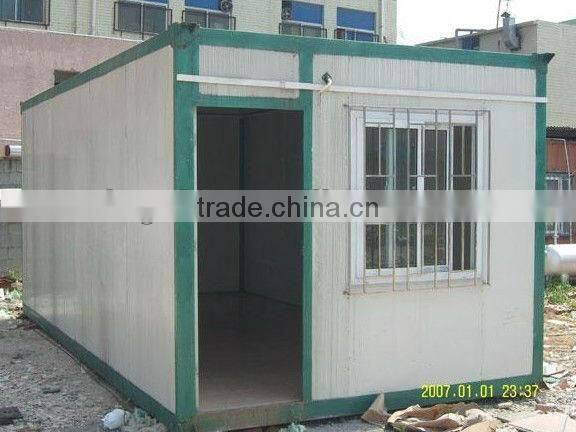

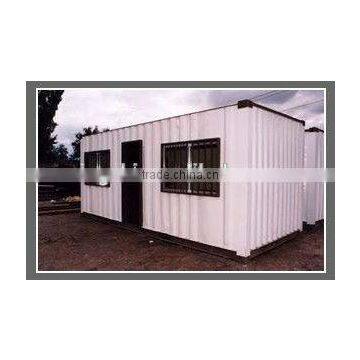

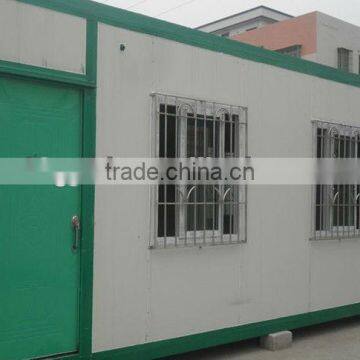

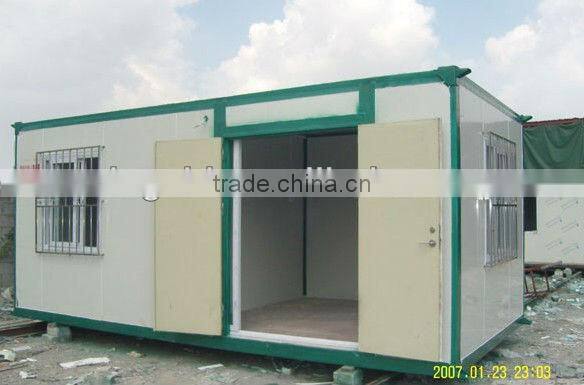

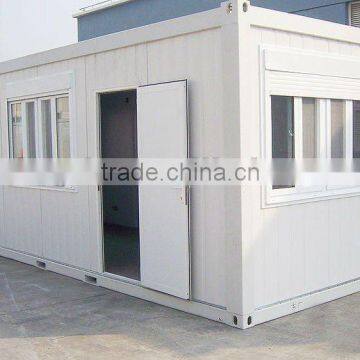

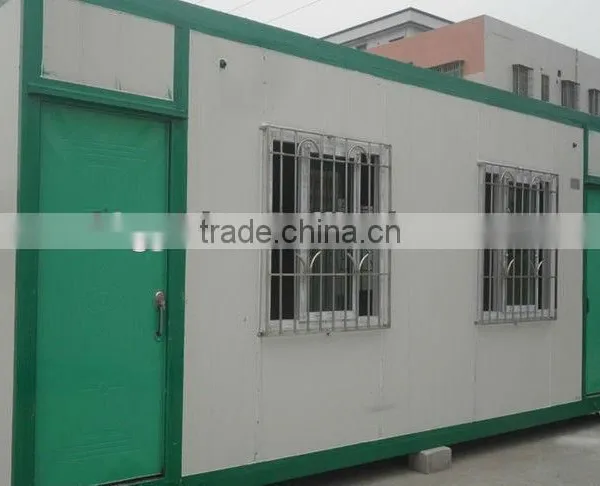

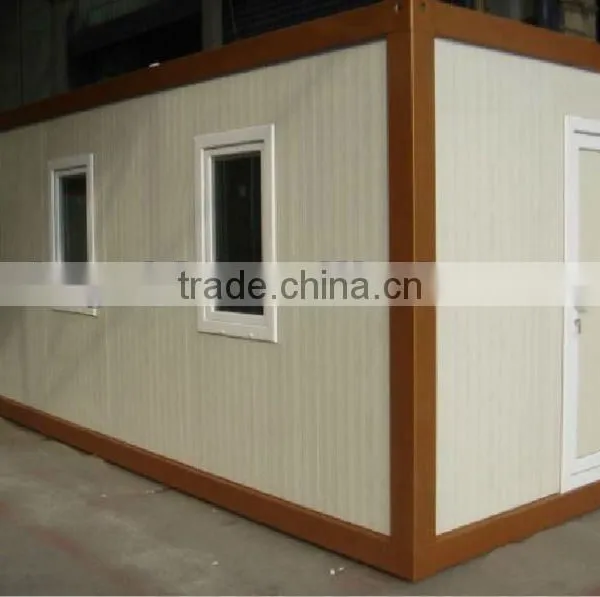

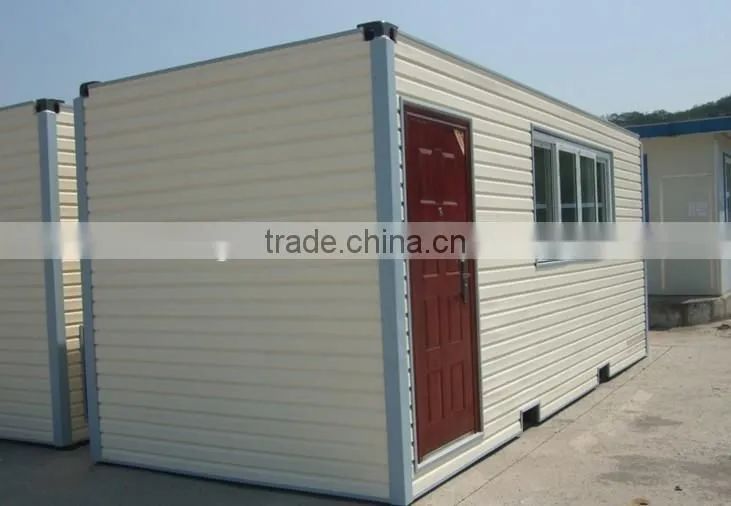

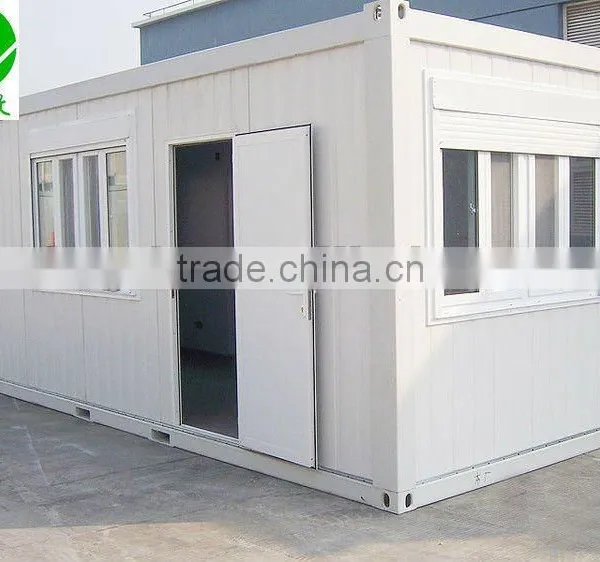

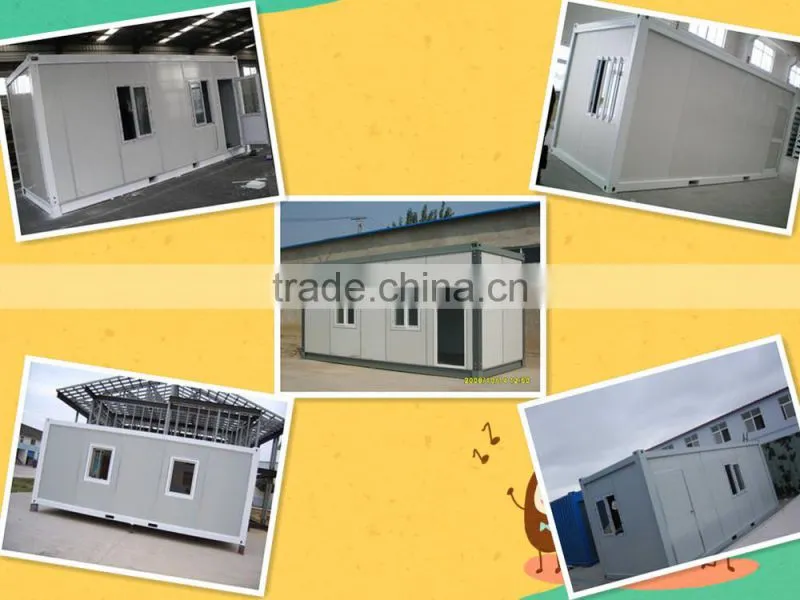

prefabricated modified shipping container homes

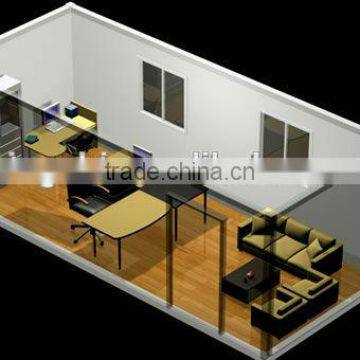

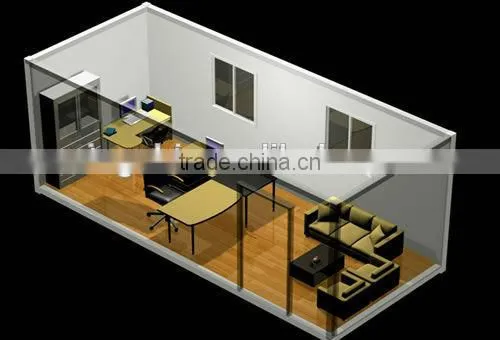

Mobile house is a flexible modular house. The size and layout can be designed as per customers’requirements and local climate. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and six common workers can finish 50m2 in 8 hours according to instruction and CD.
Usage:
The small container house has the following features: light weight, convenient and fast assembling and shipment, many-times disassembling, high rate of reuse. It can be applied to office, command posts, dormitories, meeting rooms,
warehouses, shops, additional storey on building roof and temporary houses in the field of building, railways, highways,
water conservancy projects, electric power, oil, business, tourism, and military use. And the houses are air-tight, heat-insulating, warm-keeping, waterproof and anti-corrosive.
The detail information is as follows,
No. |
Sort |
Name |
Specification |
1 |
Specification |
length |
No limited |
2 |
Width |
Less than 15m |
|
3 |
Wall height |
3000mm |
|
4 |
Clear height |
2600mm |
|
5 |
Roof slope |
1:5 |
|
6 |
Standard accessory |
Wall board |
75mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
7 |
Roof board |
75mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
|
8 |
Outside door |
Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam. |
|
|
Inside door |
SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|
9 |
Window(W-1) |
PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. |
|
|
Window(W-2) |
PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen. |
|
10 |
Channel |
Galvanized Steel Plain Sheet press moulding Material: Painted steel |
|
11 |
Post |
Square steel tube, Material: Painted steel |
|
12 |
Purline |
C style steel Material: Painted steel |
|
13 |
Roof truss |
Gabled truss, Material: Painted steel |
|
|
Decoration and connection |
Color steel sheet, 0.35mm thick |
|
|
Elevated ceiling |
Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen |
|
20 |
Option |
Decorative floor |
PVC, laminated or ceramic tile |
21 |
Drainage system |
Provided plan, design and construction |
|
22 |
Electric system |
Provided plan, design and construction |
|
25 |
Technical parameter |
Bearing load |
50kg/m2, can be adjusted according to climate |
27 |
Wind pressure: |
0.5KN/M2, can be adjusted according to climate |
|
28 |
Fire proof |
B2 grade |
|
29 |
Resistant temperature |
-25 to 50 |
|
30 |
The resistant earthquake grade |
7 fission activate. |
