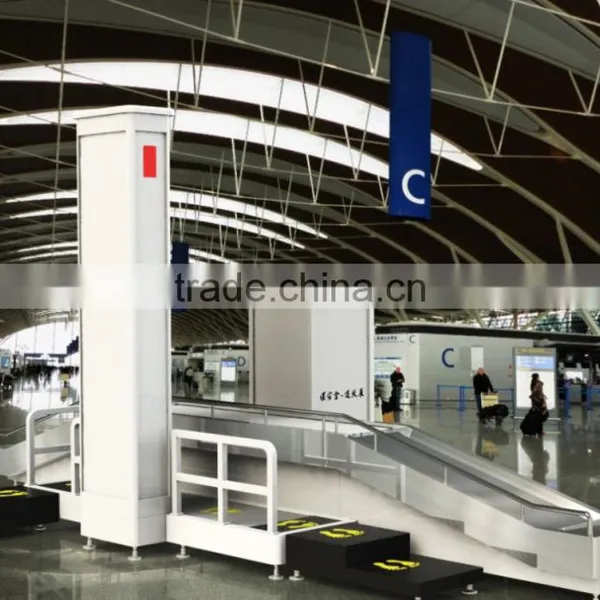

Double Channel Full Body Security X Ray Scanner JH-5010DC

Main Features:

1. Dual-channel,Human body with package synchronization.
2. Detecting the full ranges:can inspect the foreign matter concealed inside or outside of human body, but X backscatter and millimeter wave detector can only inspect the foreign matter and metal concealed outside of human body.
3. Protection of personal privacy:uses mini dose of x-ray radiation technology without showing human privacy, but X backscatter detectors and millimeter-wave detectors show human privacy, a definite invasion of privacy.
4. High inspection efficiency:time per inspection needs less than 2 seconds, but inspection times of other various brands need more than 10 seconds,suitable for places with a large flow of people to detect uninterruptedly, but other detectors do not have this function.
5. Inspection of low dose NB:Dose per inspection is less than 0.05,the Lowest inspection dose closely approximate to natural radiation.

Technical Specification:

1)     Per time detecting dose <0.05µGy,at present it is the lowest at the world.

2)     Non-closed micro-dose transmission type X-ray radiation protection of human safety testing equipment: Protective boundaries any leak smaller 0.69 μ Gy/h (better than the industry standard of 2.5 μ Gy).

3)     Time per inspection 1.5s-3.0s,better than the industry standard of 15s.

4)     Detection efficiency:up to 1200 times per hour.

5)     Wire display 40AWG,can distinguish single solid-core copper wires of diameter 0.0787mm (better than the industry standard 0.127mm).

6)     Spatial resolution: resolution is less than 1mm (better than the industry standard 1.3mm)

7)     Inspection method: continuous loop detection.

8)    Protective devices: the unique triple protective devices, leak dose only 1/4 of the industry safety standards, better protect the workers health and safety

Installation Data:

²  Power 1000W

²  Voltage 220VAC

²  Frequency 50Hz/60Hz

²  Weight 850KG

²  External dimension : 2600×2100×2600 mm

²  Passage way dimension :2600×500×260 mm

²  Baggage passage dimension:2600×500×900 mm

²  Operating temperature: -5℃~+40℃/10%~90%

Hardware systems:

Basic configuration:

²  the central control system of dual-channel,

²  dual-channel data transmission systems,

²  dual-channel data acquisition system,

²  dual circulation system,

²  security protection shield system,

²  leakage protection system,

²  dual protective bracket.

Optional configuration:

²  moisture-proof system,

²  UPS uninterruptible power supply systems,

²  dust control system,

²  corrosion protection system,

²  high temperature protection system,

²  Video guide shows system.

Software system:

Basic configuration:

²  WLP weak photon perspective systems,

²  WLC weak photon tomography systems,

²  single-image processing system,

²  safety interlocking brake system,

²  intelligent storage retrieval systems.

Optional configuration:

²  Remote management system,

²  intelligent inspection system,

²  user management systems,

²  face recognition systems,

²  automatic alarm systems,

²  identity RDIF identification systems,

²  multi-screen display system.
