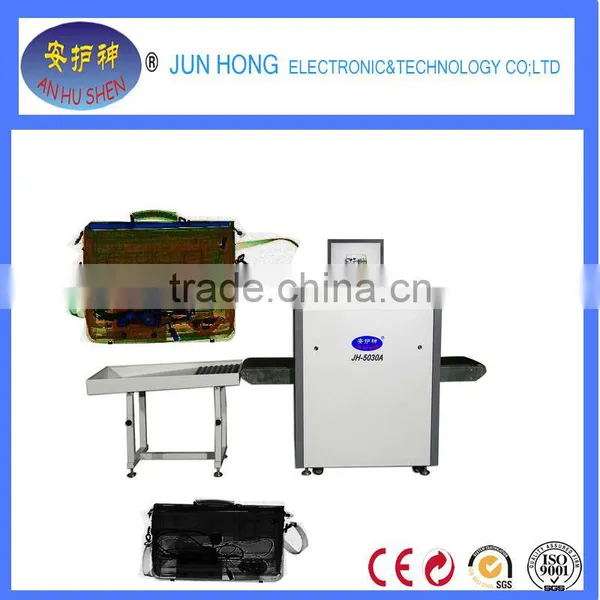

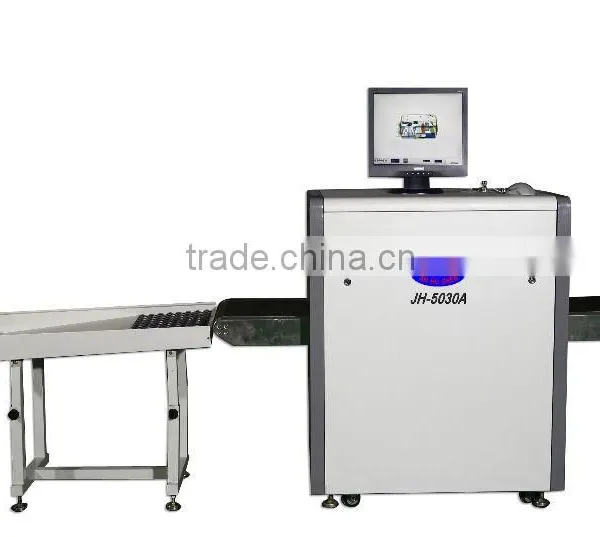

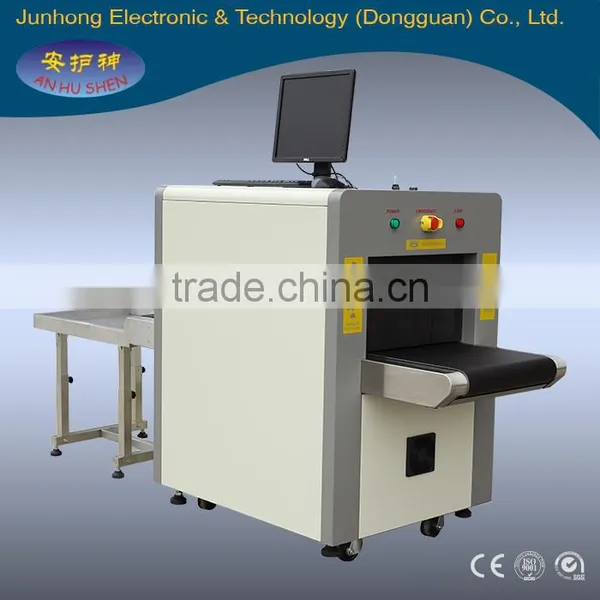

Small bag x-ray screening system, baggage scanning machine

welcome to>>Junhong Electronic & Technology (Dongguan) Co., Ltd.

TECHNICAL DATA:

Tunnel Size:                       500(W)×300(H)mm

Conveyor Speed:                  0.22 m/s

Conveyor Max Load:              20 kg

Single inspection dosage:       < 1.5µGy

Wire Resolution:                  0.1mm metal line

Steel Penetration:                8MM armor plate

Film Safety:                        For ISO 1600

Maximum leakage radiation:      <0.3µGY/H

X-RAY GENERATOR:

Orientation:                                 Vertically Upward

Tube Current:                               0.4~0.5MA(adjustable)

Anode Voltage:                             80 KV(adjustable)

Angle:                                       60°

Generator cooling/working periods:    Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM:

X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY

COLOR QUALITY: 24 BIT REAL COLORS

EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT

SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT

HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY

LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT

BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM

MULTI-ENERGY FUNCTION:

MULTI-ENERGY COLOR:DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN

HIGH ENERGY/LOW ENERCY: SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC

AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES: HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.

AUDIBLE & VISIBLE ALARM: GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION

OPERATING ENVIRONMENT:

Storage Temperature:             -20ºC to 60ºC

Operating Temperature:           0ºC to 45ºC

Relative Humidity:                  20 to 95% non-condensing

System Power:                     220 VAC (±10%) 50±3HZ

Power wastage:                   1.0 KW (Max)

Noise:                              <65DB

Any of your kind inquiry would be replied within 12 hours.
Well-trained and experienced sales staffs will reply all your concerns in fluent English.
OEM services are available with us, our professional designer would make your private idea into being.

Protection of your sales area, ideas of design and all your private information.
Delivery by air mail or ship for your orders.
With years of manufacture and promotion experience in global market, brings you profit and great success!

 1. Are you manufacturer or trade Company?
We are a factory founded in 2007 with trade team for international service

2. What terms of payment you usually use?
T/T 30% deposit and 70% against document, Western Union, L/C at sight

3. what is your lead time for your goods?
Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season ( Jan to March).

4. Do you attend any Show?
We attend SPOGA show in Germany, Canton fair in China and many other special furniture shows.

5. Do you have any instant chat ?
Skype:
Whats app:
EMail:
