Foldable Portable Walk Through Metal Detector Security Door Frame Metal Detector

welcome to>>Junhong Electronic & Technology (Dongguan) Co., Ltd.

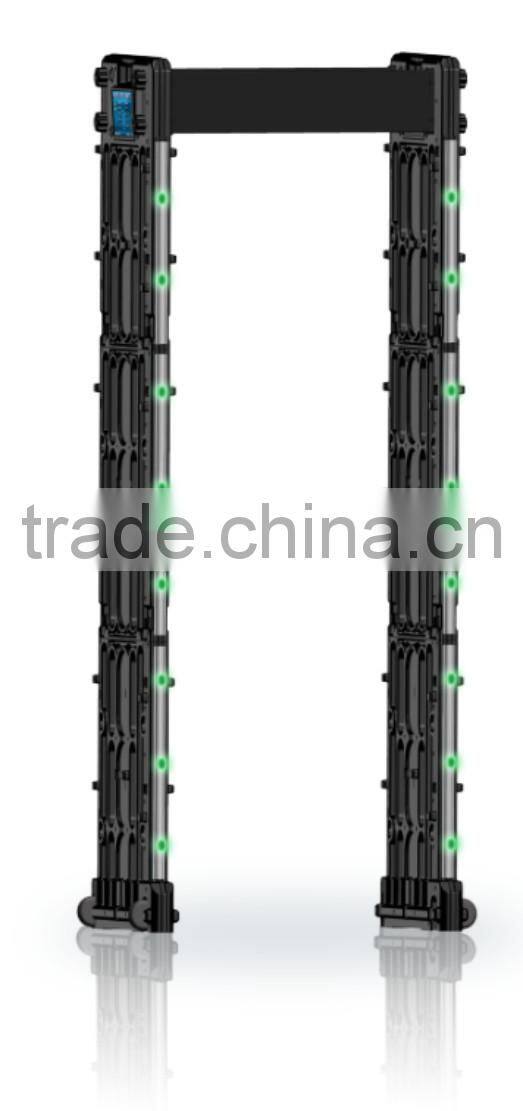

JH-6S Portable walk trough metal detector adopts advanced techniques ,with a number of patents and certificates on material, the appearance, technology and structure .

It is a lightweight ,high-performance walk through scanner with high sensitivity ,portable,waterproof ect features,One operator can transport it easily to any locations and finish installation within 5mins , Ideal for security checks at stadiums, conferences, schools and other events. The unit is easy to operate and settings are self explaining. .

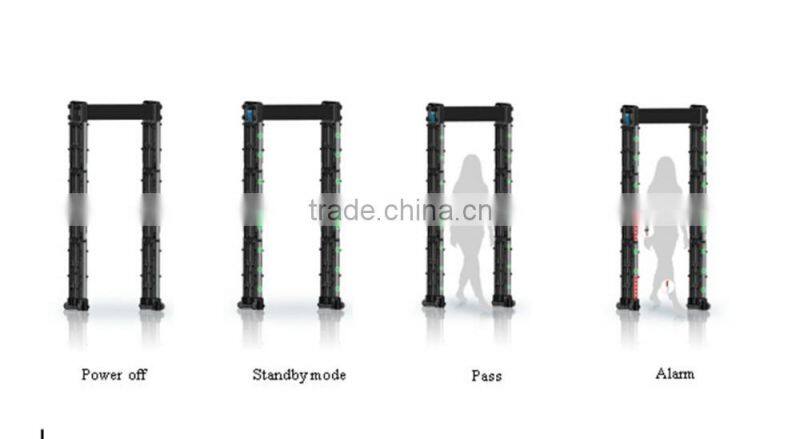

The gate adopt an electromagnetic field to detect metal objects through sound & light alarm. The gate consist of the host , the high-frequency signal generator, signal receiver , infrared sensors and other components , with super metal detection function, the unique internet remote control management system, and can be taken apart to 8 components, It is easy for you to carry and transport .

Advanced Technology

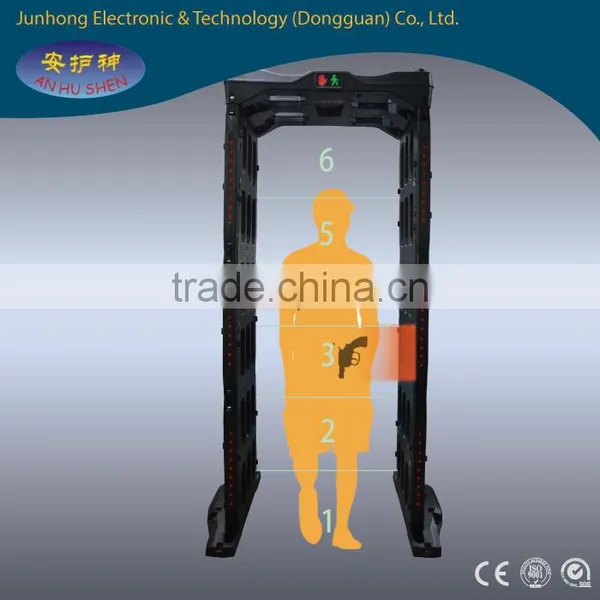

Multi-zone technology: 8,16,24 detection zones,can change detection zones intelligently (upgrade technology of each zone can be provided).

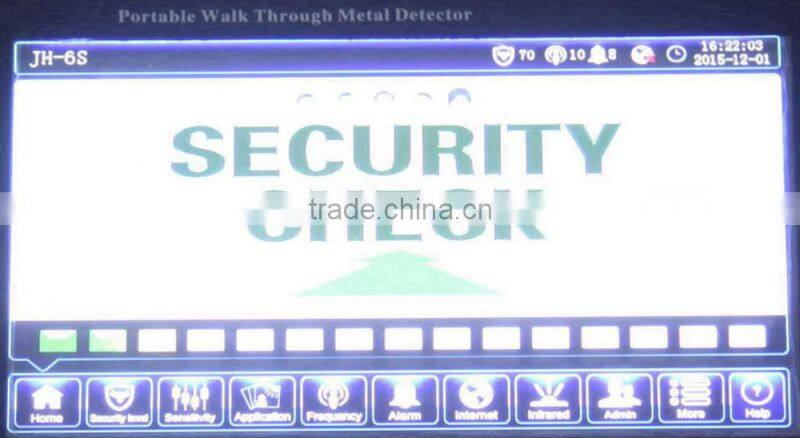

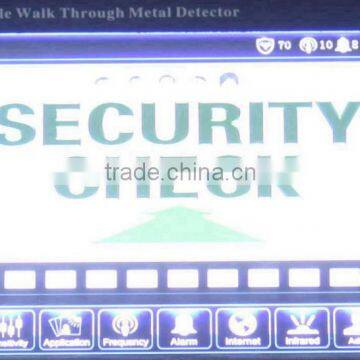

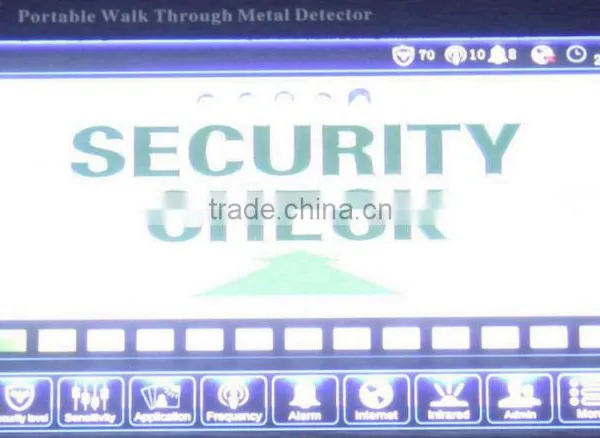

Touch screen: 7-inch HDMI LCD touch screen,iPad interface style,easy to operate and understand.

Mobile connection technology: realize mobile APP remote control

IP Grade: IP67 superior waterproof performance

Self calibration once power on

Self diagnostic, it will inform the user when exit the system

Start-stop technology:infrared devices with automatic start-stop technology.

Features and Functions

Adjustable sensitivity of each detection zone

Multi-alarm sounds to choose

Operating frequency can be adjusted manually or automatically

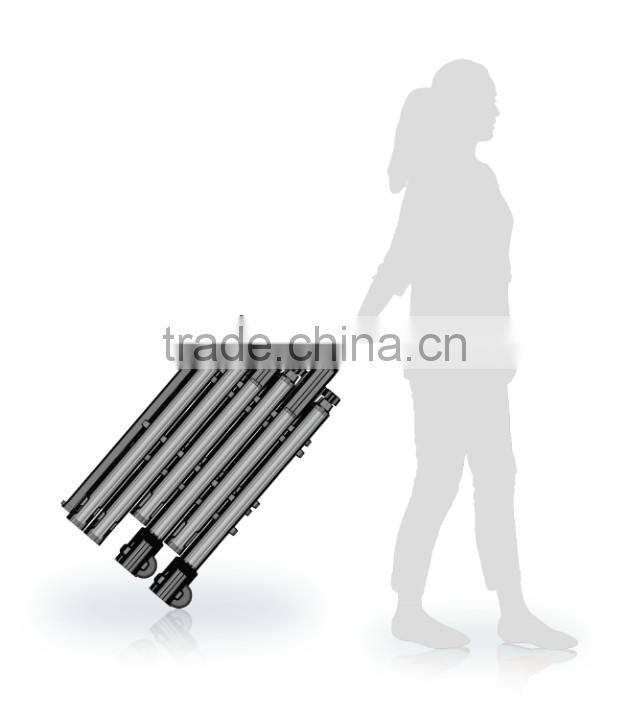

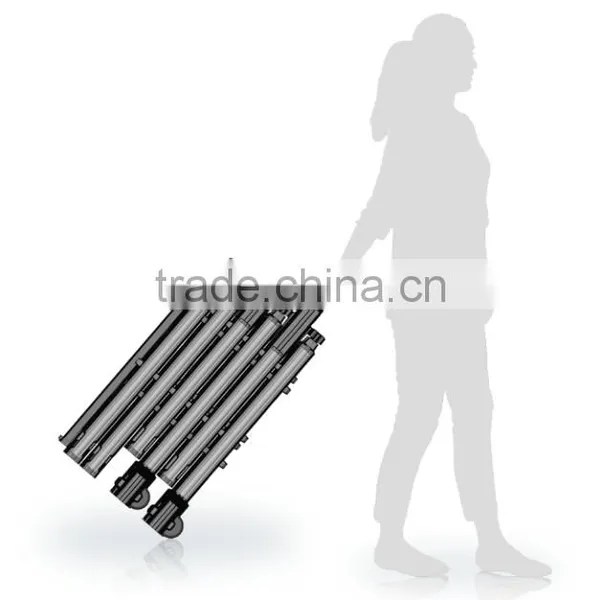

Move after folded or installation(two move methods to choose)

Detection technology: Even detection technology,no blind spot

Internet technology:Remote upgrade system and remote control system

Working band: 120 working bands

Sensitivity of each detection zone:355 level

Statistics: Record the pass and alarm numbers

Query function: The system has real-time information query function

Intelligent Standby: The system has intelligent standby operation alerts

Detection speed: more than 60 people pass and detect in 1 minute

Optional functions

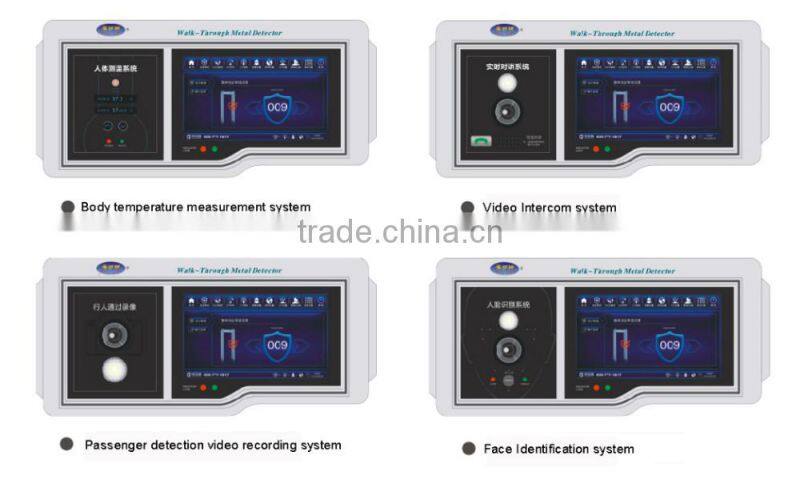

In order to meet different customers requirements the device can be equipped with some optional functionality, for instance a body temperature detector, video intercom, internal CCTV and recording, face recognition etc. Additional features on request.

Technical Parameters

Detection objects: knives,guns,coins

External Dimension:2250x850x500mm

Passage Dimension: 2051x710x500mm

Fold Dimension:889x606x484mm

Packing Dimension: 948x666x525mm

Humidity: 99%, non-condensing

Working environment: -40 ℃~85 ℃

Weight: NW 42KG, GW 50KG

Input : AC 110V~240V/50Hz~60Hz

Output : DC 12V/5A 12W

Power supply: the whole system is equipped with polymer battery, life time 8,16,24,48,72 hours optional.

Any of your kind inquiry would be replied within 12 hours.
Well-trained and experienced sales staffs will reply all your concerns in fluent English.
OEM services are available with us, our professional designer would make your private idea into being.

Protection of your sales area, ideas of design and all your private information.
Delivery by air mail or ship for your orders.
With years of manufacture and promotion experience in global market, brings you profit and great success!

1. Are you manufacturer or trade Company?
We are a factory founded in 2007 with trade team for international service.

2. What terms of payment you usually use?
T/T 30% deposit and 70% against document, Western Union, L/C at sight

3. what is your lead time for your goods?
Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season ( Jan to March).

4. Do you attend any Show?
We attend SPOGA show in Germany, Canton fair in China and many other special furniture shows.

5. Do you have any instant chat ?
Skype:
Whats app:
EMail:

Best wishes!
