2014 New Security Checking Hand Held Bomb Detector

Specifications

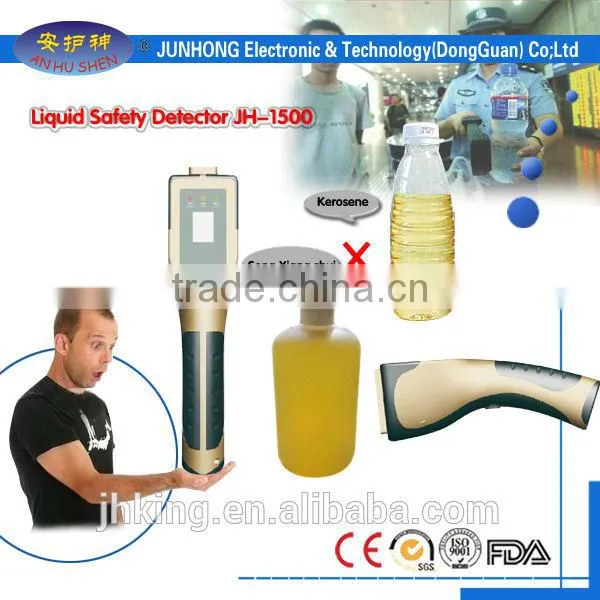

JH-1500 Hand Held Liquid Security Detector

Introduction

An Hu Shen JH-1500 Hand Held Liquid Security Detector. It’s a security instrument designed to detect flammable and explosive liquid. JH1500 is small, analysis fast, easy to use, the ability to quickly identify flammable and explosive liquid without contact with liquid. Hand Held Liquid Security Detector is widely used in stations, subways, airports, courts government agencies, large-scale sports games and other places.

Technical Index

Formation: Host, charging base

Main size and weight: L216*W50*H79mm, approx200g(battery included)

Boot time:1 second

Analysis of testing time: approx 1 second

Test of container size: no less than 5.5cm*1.5cm, Minimum Capacity:50ml

Alarm mode: audible alarm and LCD alarm.

Human-computer interface: provide a full English interface, spontaneous light OLED screen display.

Data storage: provide test results of Liquid Storage and Retrieval Functions, the amount not less than 10000 tests, and can export data though the USB interface.

Operating temperature range: -10°C - +55 °C

Types of detectable: gasoline, kerosene, diesel oil, aether, isopropyl ether, mineral ether, glycol , nitrobenzene ,propylene epoxide , turpentine, acetone, benzene, toluene, xylene, ethyl chloride, two ethyl chloride, isopropanol, octane, carbon disulfide, methanol, nitromethane, n-hexane, chloroform, paint thinner (nitro thinner solvents ) paint, styrene, cyclohexanone. Cyclopentane, two triethylamine, n-pentane, tert butyl alcohol, acrylic acid methyl ester, propyl alcohol, cyclohexane, methyl tert butyl ether, 1-4- two oxygen six ring, dipentene, acetaldehyde. More than 40 kinds of inflammable and explosive dangerous liquid.
