EJH-28 DIGITAL ATUO-CONVEYING ALL-METAL DETECTOR
Introduction
Advanced technique of electrical & mechanism designs is adopted for EJH series digital intelligent auto-conveying metal detector which have reasonable structure, beautiful appearance, highly detection sensitivity and stable behaviors. It is characterized by high detecting sensitivity and stable & reliable performance.
Comparing with traditional simulation detector , the function is more complete , the capability is more stable and dependable. It accord with the demand of certification-HACCP, QS, ISO9001, FDA.
Feature
- LCD display, DSP digital signal processing technology, OSD menu in Chinese and English
- Recording and memory function: able to store up to 20 kinds of different products.
- Dual- channel and dual-frequency detecting to detect Fe and non-ferrous metals like stainless steel respectively.
- 360 degree phase identifying technology adopted to decrease product effect and improve sensitivity in non-ferrous metal detecting.
- With high stability: no alarm even being hammered.
- The Food industry conveys belt confirms to FDA standard and can be used to convey unpacked food directly.
- Can be integrated into production line or automatic equipment.
Way of alarming: sound and light alarm, stop running automatically.
Performance
Detection style: digital intelligent with LCD display
Language : English,
Motor power: 200w/400w
The main material: SUS 304
Speed of transmission: 18-40 meter/minute
height of inspection window(cm):10
width of inspection window(cm):40
Highest Sensitivity: Ferrous 0.5mm diameter ball
Non-ferrous:1.0mm diameter ball
SUS: 1.2 mm diameter ball
Alarm: Audible and visual with automatic stop can install with the auto-rejection equipment according customer’s requirement.
Power: AC110V/220V/380V 50/60Hz.
Table of Sensitivity
|
25*8cm |
30*10cm |
40*15cm |
50*20cm |
60*30cm |
FE |
≥0.5mm |
≥0.8mm |
≥0.8mm |
≥1.0mm |
≥1.5mm |
SUS |
≥1.2mm |
≥1.5mm |
≥2.0mm |
≥2.5mm |
≥3.0mm |
Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on condition of different products being tested.

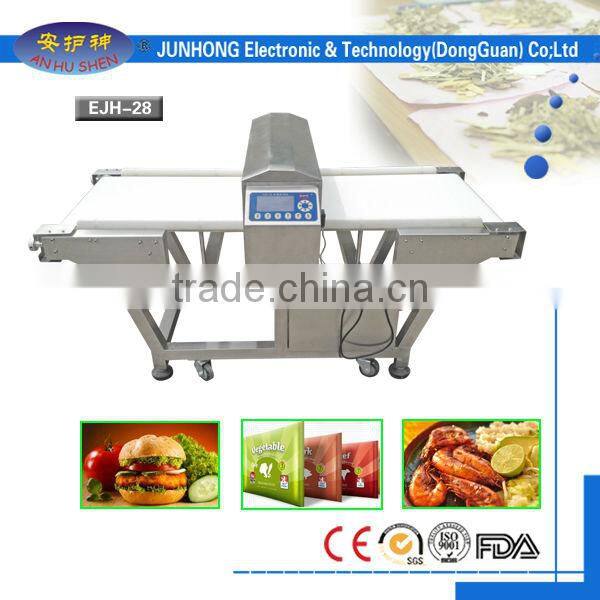

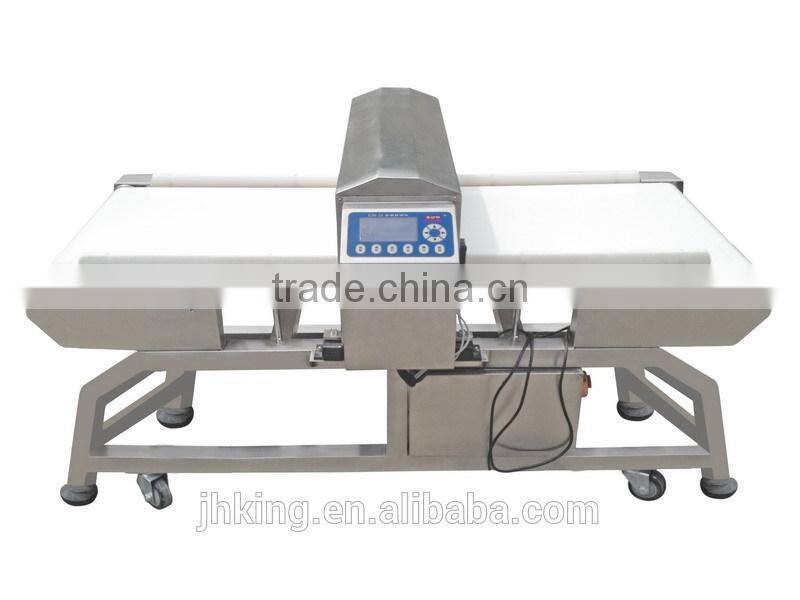

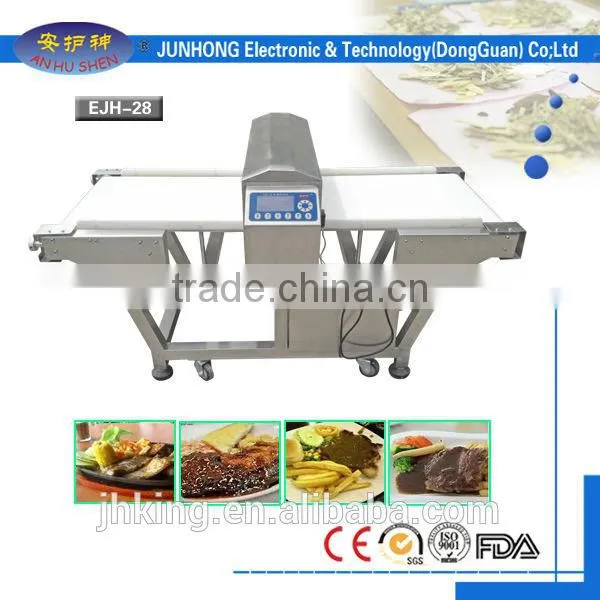

Product Photo:

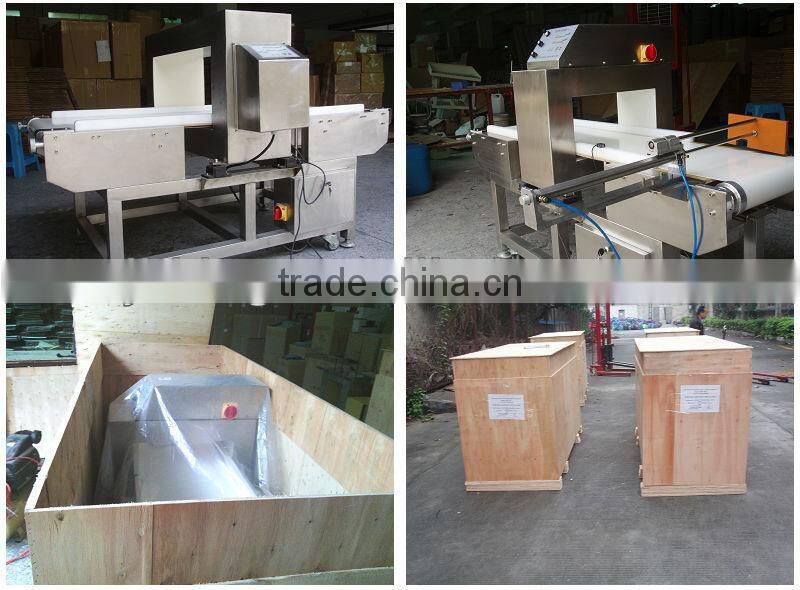

Product Packing

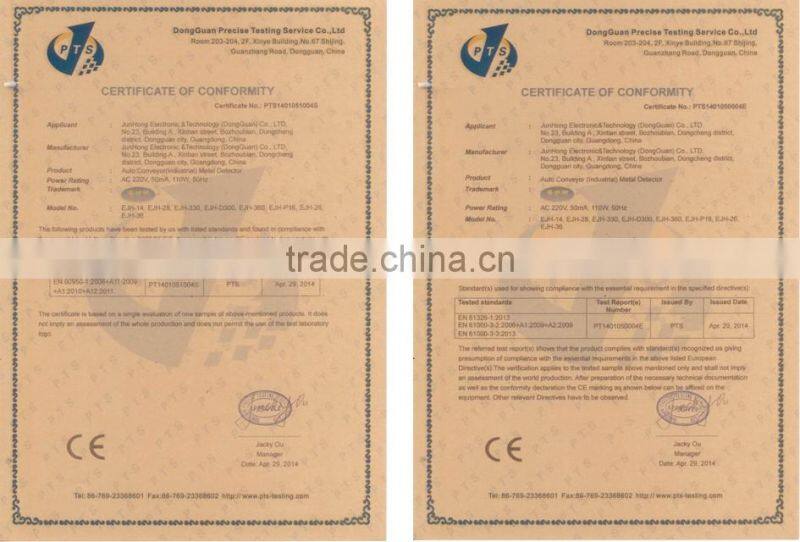

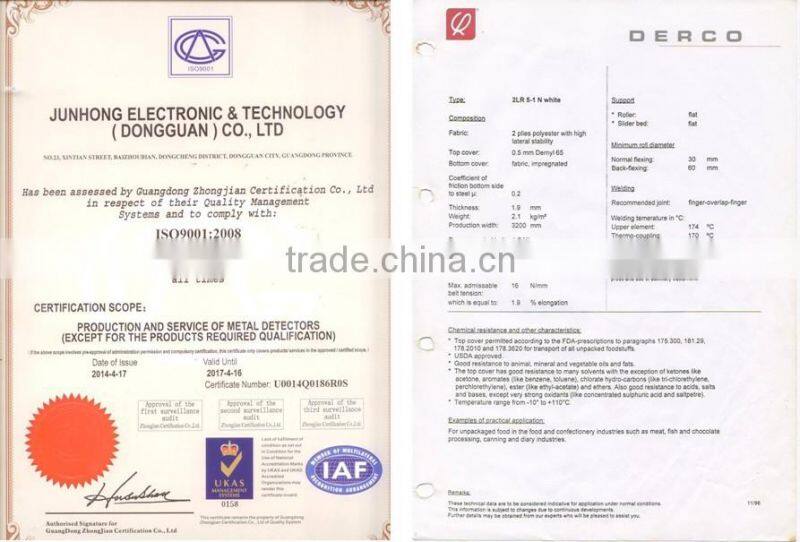

Certificates:

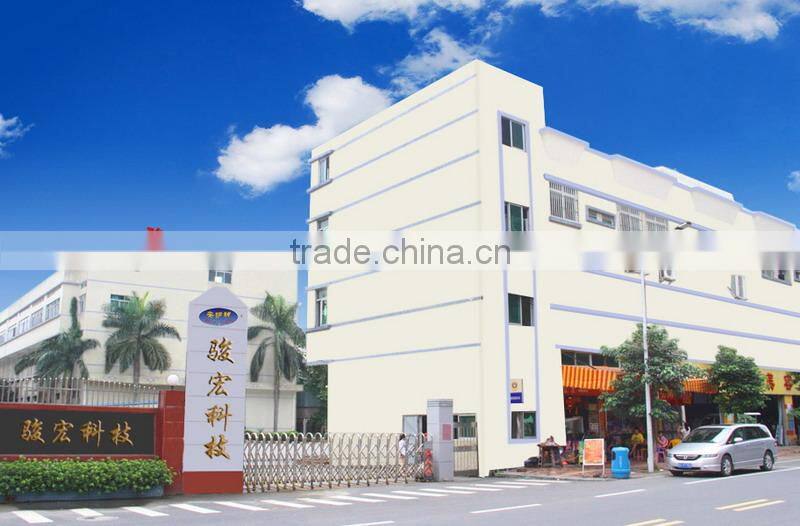

Factory
