Help CenterStainless Steel Wire Mesh; Stainless Steel Wire Cloth; Stainless Steel Wire Window Screen
Related Products
Specifications
Material:SUS302,304,316,304L,316L,etc.Weave: Plain weave, twilled weave and dutch weave.

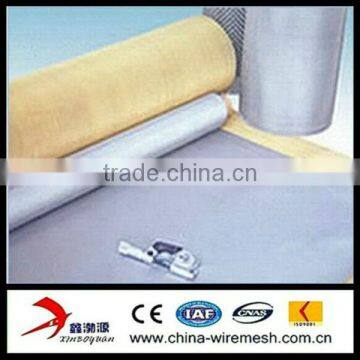

Stainless steel wire mesh is also known as stainless steel wire cloth or stainless steel cloth.
Material:SUS302,304,316,304L,316L,etc.
Types of Weave: Plain weave, twilled weave and dutch weave. Dutch weave includes plain dutch weave and twilled dutch weave.
Specs:Square wire mesh ranges from 1 mesh to 635mesh; dutch wire mesh ranges from 8 mesh X 85mesh to 400 mesh X 2800 mesh.We can also custom make stainless steel wire mesh for you.
Standard roll size: Standard width of stainless steel wire mesh: 1m or 48"standard roll length of stainless steel wire mesh: 30m or 100'.
Wire Mesh Packing: wrapped with moister-proof paper, then in wooden cases.
Applications: Widely used for screening and sieving of solid materials, liquid filtration and solid-liquid separation, etc. in petroleum, chemical engineering, foodstuff, pharmaceutical and machine building industries.
|
Stainless Steel Woven Wire Mesh(Plain Weave) | ||||||
mesh/inch |
wire diameter |
aperture |
|
mesh/inch |
wire diameter |
aperture |
2mesh |
1.80 |
10.90 |
60mesh |
0.15 |
0.273 |
|
3mesh |
1.60 |
6.866 |
70mesh |
0.14 |
0.223 |
|
4mesh |
1.20 |
5.15 |
80mesh |
0.12 |
0.198 |
|
5mesh |
0.91 |
4.17 |
90mesh |
0.11 |
0.172 |
|
6mesh |
0.80 |
3.433 |
100mesh |
0.10 |
0.154 |
|
8mesh |
0.60 |
2.575 |
120mesh |
0.08 |
0.132 |
|
10mesh |
0.55 |
1.990 |
140mesh |
0.07 |
0.111 |
|
12mesh |
0.50 |
1.616 |
150mesh |
0.065 |
0.104 |
|
14mesh |
0.45 |
1.362 |
160mesh |
0.065 |
0.094 |
|
16mesh |
0.40 |
1.188 |
180mesh |
0.053 |
0.088 |
|
18mesh |
0.35 |
1.060 |
200mesh |
0.053 |
0.074 |
|
20mesh |
0.30 |
0.970 |
250mesh |
0.04 |
0.061 |
|
26mesh |
0.28 |
0.696 |
300mesh |
0.035 |
0.049 |
|
30mesh |
0.25 |
0.596 |
325mesh |
0.03 |
0.048 |
|
40mesh |
0.21 |
0.425 |
350mesh |
0.03 |
0.042 |
|
50mesh |
0.19 |
0.318 |
400mesh |
0.025 |
0.0385 |
|
Stainless Steel Woven Wire Mesh (Twill Weave) | |||
mesh |
wire diameter(mm) |
aperture(mm) |
material(AISI) |
250mesh |
wire dia.0.040mm |
0.063 |
304 or 316 |
300mesh |
wire dia.0.040mm |
0.044 |
304 or 316 |
325mesh |
wire dia.0.035mm |
0.043 |
304 or 316 |
350mesh |
wire dia.0.030mm |
0.042 |
304 or 316 |
400mesh |
wire dia.0.030mm |
0.033 |
304 or 316 |
Stainless Steel Wire Cloth (Plain Dutch Weave) | ||||
Mesh |
Wire Diameter(mm) |
Aperture |
||
Vertical |
Horizontal |
Vertical |
Horizontal |
Microns |
12mesh |
64mesh |
0.62mm |
0.42mm |
270-290um |
14mesh |
80mesh |
0.50mm |
0.30mm |
220-240um |
24mesh |
110mesh |
0.38mm |
0.25mm |
115-125um |
30mesh |
160mesh |
0.23mm |
0.18mm |
95-100um |
40mesh |
200mesh |
0.18mm |
0.14mm |
70-75um |
50mesh |
250mesh |
0.14mm |
0.11mm |
60-63um |
Stainless Steel Wire Cloth (Twill Dutch Weave) | ||||
Mesh |
Wire Diameter(mm) |
Aperture |
||
Vertical |
Horizontal |
Vertical |
Horizontal |
Microns |
20mesh |
250mesh |
0.25mm |
0.23mm |
110-120um |
32mesh |
360mesh |
0.23mm |
0.15mm |
100-110um |
40mesh |
400mesh |
0.18mm |
0.14mm |
90-110um |
50mesh |
500mesh |
0.14mm |
0.11mm |
70-90um |
50mesh |
600mesh |
0.14mm |
0.09mm |
60-70um |
80mesh |
800mesh |
0.12mm |
0.07mm |
45-65um |
165mesh |
800mesh |
0.07mm |
0.05mm |
24-26um |
120mesh |
1000mesh |
0.08mm |
0.055mm |
27-28um |
165mesh |
1450mesh |
0.07mm |
0.04mm |
16-18um |
325mesh |
2300mesh |
0.038mm |
0.025mm |
8-9um |
