Specifications
fiberglass wire meshmesh:5x 5mm,10x 10mm
specification:1x 50m,0.16x 300m
weigt:60-145g/m2
ISO9001:2008

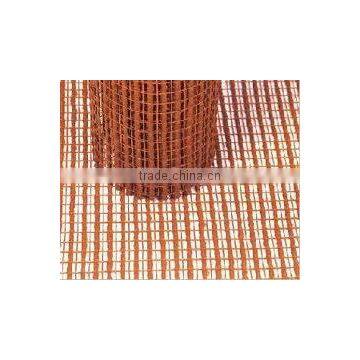

Fiberglass wire mesh
Application: wall materials
Material: Fiberglass mesh fabric is made by c or e-glass platinum crucible roving, the tensile strength is higher, and the quality is excellent. We got certificate of ISO 9001:2008.
We supply hard, medium hard and soft mesh, high strength mesh, and fireproof mesh.
As the product is high in alkali-resistant, strength, chemical stability and position setting, it is wide used to reinforce cement, marble, mosaic, stone, plastic, pitch, wall materials and waterproof. It is an ideal engineering material for construction field.
Colors available: white, red, yellow, green, blue, etc.
NO. | Specifications | Mesh size (mm) | Yard density (tex) | Mass (g/m2) | Tensile Strength (N/5X 20CM) | |||
wrap | weft | wrap | weft |
| wrap | weft | ||
1 | FG4X 4-75 | 4 | 4 | 48/2 | 200 | 75±3 | 700 | 850 |
2 | FG4X 4-90 | 4 | 4 | 67/2 | 200 | 90±3 | 950 | 1100 |
3 | FG4X 4-145 | 4 | 4 | 134/2 | 240 | 145±5 | 1500 | 1500 |
4 | FG4X 4-160 | 4 | 4 | 134/2 | 300 | 160±5 | 1500 | 1650 |
5 | FG4X 5-110 | 4 | 5 | 100/2 | 360 | 110±5 | 1100 | 1200 |
6 | FG4X 5-125 | 4 | 5 | 100/2 | 280 | 125±5 | 1200 | 1300 |
7 | FG4X 5-145 | 4 | 5 | 134/2 | 300 | 145±5 | 1400 | 1400 |
8 | FG4X 5-160 | 4 | 5 | 134/2 | 360 | 160±5 | 1500 | 1600 |
9 | FG5X 5-90 | 5 | 5 | 67/2 | 240 | 90±3 | 950 | 1150 |
10 | FG5X 5-125 | 5 | 5 | 100/2 | 340 | 125±5 | 1100 | 1300 |
11 | FG5X 5-145 | 5 | 5 | 134/2 | 360 | 145±5 | 1450 | 1600 |
12 | FG5X 5-160 | 5 | 5 | 134/2 | 430 | 160±5 | 1500 | 1700 |
13 | FG10X 10-90 | 10 | 10 | 200/2 | 300 | 90±3 | 900 | 1200 |
14 | FG10X10-110 | 10 | 10 | 250/2 | 450 | 110±5 | 1000 | 1400 |
Packaging: packed in shrink film then packed in cartons with pallets or without pallet.
30 rolls/carton or 6 rolls/carton. 75g/m2 170000 m2/40’ HC. 145g/m2 110000m2/40’HC. 160g/m2 110000/40’HC
