Fiberglass Mesh Cloth

Specifications

sh size: 4X4 5X5 10X10 2X2 etc
2.Roll size: 1x20m /50m-300m
3.Grams weight: 60-300g
4.Various colors & good strength

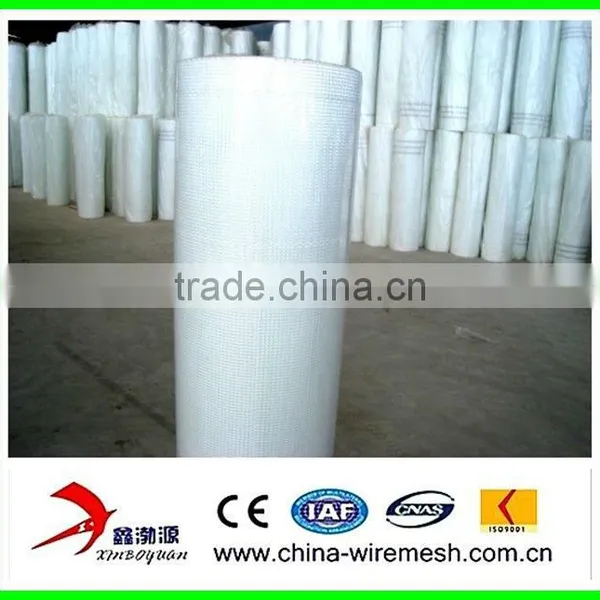

Fiberglass mesh



Application: wall materials



Material: Fiberglass mesh fabric is made by c or e-glass platinum crucible roving, the tensile strength is higher, and the quality is excellent. We got certificate of ISO 9001:2000.

We supply hard, medium hard and soft mesh, high strength mesh, and fireproof mesh.

As the product is high in alkali-resistant, strength, chemical stability and position setting, it is wide used to reinforce cement, marble, mosaic, stone, plastic, pitch, wall materials and waterproof. It is an ideal engineering material for construction field.



Colors available: white, red, yellow, green, blue, etc.

NO.	Specifications	Mesh size (mm)		Yard density (tex)		Mass (g/m2)	Tensile Strength (N/5X 20CM)
		wrap	weft	wrap	weft		wrap	weft
1	FG4X 4-75	4	4	48/2	200	75±3	700	850
2	FG4X 4-90	4	4	67/2	200	90±3	950	1100
3	FG4X 4-145	4	4	134/2	240	145±5	1500	1500
4	FG4X 4-160	4	4	134/2	300	160±5	1500	1650
5	FG4X 5-110	4	5	100/2	360	110±5	1100	1200
6	FG4X 5-125	4	5	100/2	280	125±5	1200	1300
7	FG4X 5-145	4	5	134/2	300	145±5	1400	1400
8	FG4X 5-160	4	5	134/2	360	160±5	1500	1600
9	FG5X 5-90	5	5	67/2	240	90±3	950	1150
10	FG5X 5-125	5	5	100/2	340	125±5	1100	1300
11	FG5X 5-145	5	5	134/2	360	145±5	1450	1600
12	FG5X 5-160	5	5	134/2	430	160±5	1500	1700
13	FG10X 10-90	10	10	200/2	300	90±3	900	1200
14	FG10X10-110	10	10	250/2	450	110±5	1000	1400





Packaging: packed in shrink film then packed in cartons with pallets or without pallet.

  30 rolls/carton or 6 rolls/carton. 75g/m2  170000 m2/40’ HC. 145g/m2  110000m2/40’HC. 160g/m2 110000/40’HC
