Specifications
galvanized razor wire1.Razor thickness:0.5mm,0.6mm
2.Wire diameter:2.5mm,3.0mm
3.Razor width: 15 mm
1.Material:
a.Core wire material: galvanized wire and stainless steel wire.
b.Blade material: galvanized sheet and stainless steel sheet.
2. Specification:
1.Razor thickness:0.5mm,0.6mm
2.Wire diameter:2.2mm,2.5mm,3.0mm
3.Razor width : 15 mm
4.Razor length: 22 mm
5.barb spacing: 26mm
6.Outside diameter of roll: can be :450mm,500mm,600mm,730mm,900mm,1000m, or as customers' specific
request.
7.Number of loops:33--102
8.Standard spreading length per roll:8m --16m
9.Razor barbed type : cross type

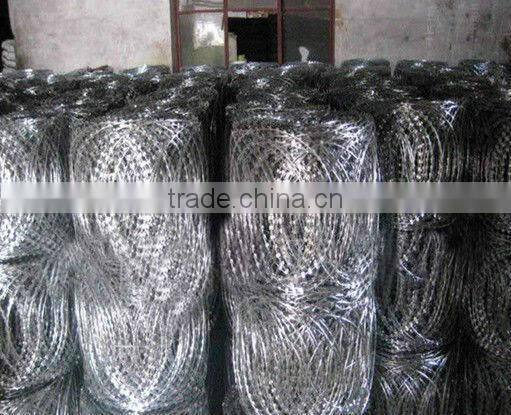

10.Packing : compression rolls,water-proof paper inside, woven bag outside or in carton
11.Surface treatment: Galvanized or PVC coated
3.Application:
(1)This product has great deterrent effect,it can play a warning role

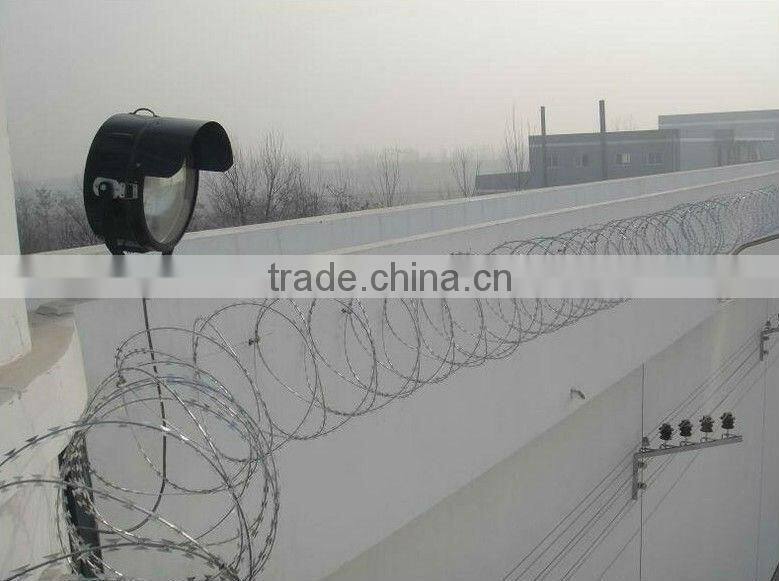

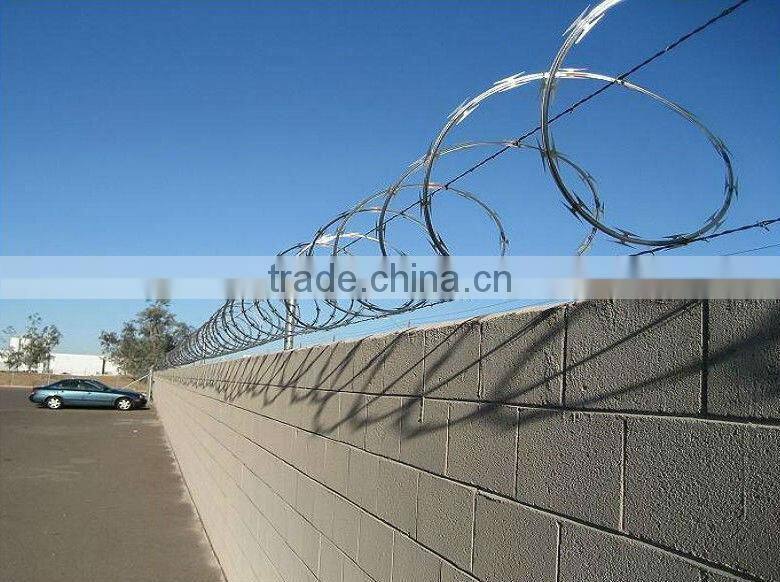

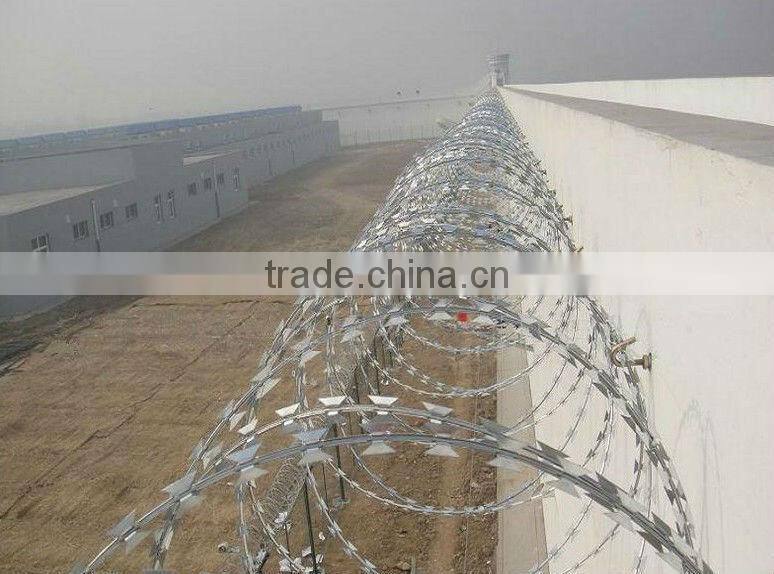

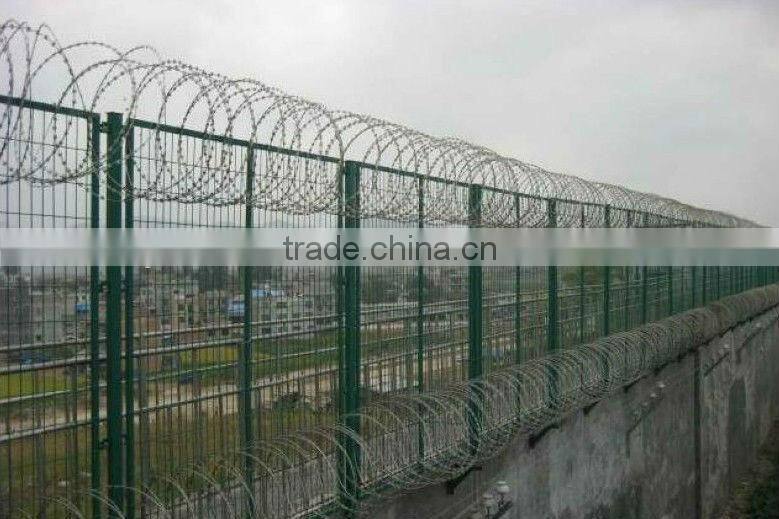

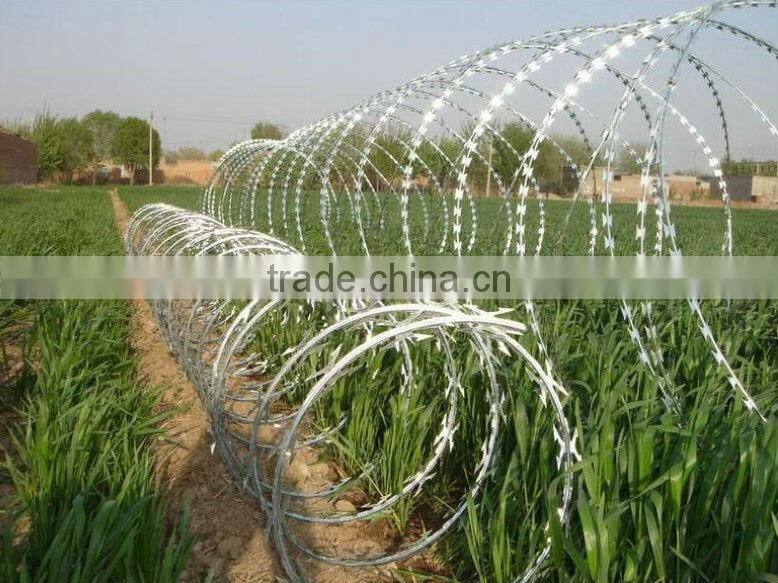

(2)Razor wire is widely used by in military field, prisons, detention houses, government buildings and other
national security facilities; it is also used as fence for cottage and society fence, and other private buildings
|
Reference number |
Thickness |
Wire diameter |
Barb length |
Barb width |
Barb Spacing |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
CBT-60 |
0.5±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
CBT-65 |
0.5±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Gauge of strand and Barb in BWG |
Approximate length per Kilo in Meter |
|||
|
Barbs spacing 3” |
Barbs spacing 4” |
Barbs spacing 5” |
Barbs spacing 6” |
|
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15x15 | ||||
