PVC Coated Nylofor 3D Panel Mesh Fencing
Product Discribtion
The fencing system is a modern welded mesh system. The panel benefits from two different edges; barbed and flush. Providing good see-through visibility this system will not only blend into its environment but is also extremely rigid with up to three horizontal profiles.
- Wire Mesh Fence heights available in 1.0m, 1.2m,1.5m, 1.8m, 2.0m & 2.4m.
- Wire Mesh Fence panels suit post centres of 2.0m,2.5m&3.0m
- The Wire Mesh Fence panels are manufactured using 5.0mm thick wires.Galvanized 4.0mm and after PVC coating 5.0mm thick.
- The mesh is configured to 50mm x 200mm and is welded at every intersection.
- The system utilises our unique patented Hexaclip fixing which comprises and anti-tamper bolts.
- To achieve additional security the panel can be installed so that the barbed edge is at the top of the fence so that it acts as a deterrent to would-be climbers.
- Where safety is key, particularly on lower height systems used in a playground setting, the panel can be installed so the flush edge is at the top of the fence so there are no sharp hazards. If opting to install barb-down inverted clips need to be ordered.
Common Specification:
Popular Sizes of Wire Mesh Fence | |
Wire | 3.00-8.00mm |
Mesh Opening | 50x200mm,50x100mm,75x150mm,50x150mm & 50x50mm |
Height(mm) | 1030,1230,1500,1530,1700,1730,1800,1830,1900,1930,2000,2030,2430 |
Width(mm) | 2000,2250,2500,2900 |
Post style | square post, rectangle post, peach post,holland post& round post |
Special size is available | |
Surface Treatment: electric galvanized/hot dipped galvanized, then PVC coating/powder painting
Wire Mesh Fence Panel:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and strong ultraviolet radiation.
Fastenings:
The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking. This also can be designed as the special clients requests.
Common Applications:
- Schools
- Hospitals
- General Industrial
- General Commercial
- Prestige
- Utilities
- House
Some Photos of Welded Wire Mesh Fence

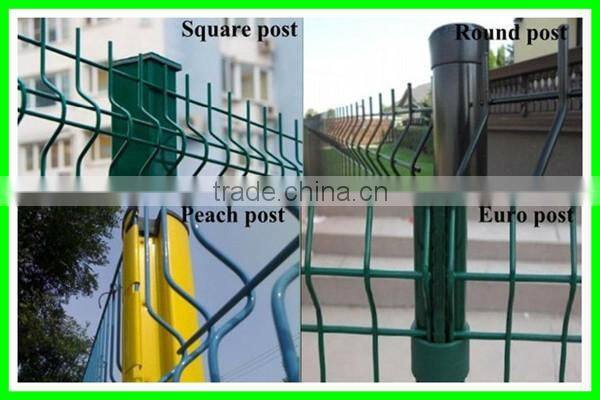

Styles of Fence Posts For Welded Wire Mesh Fences

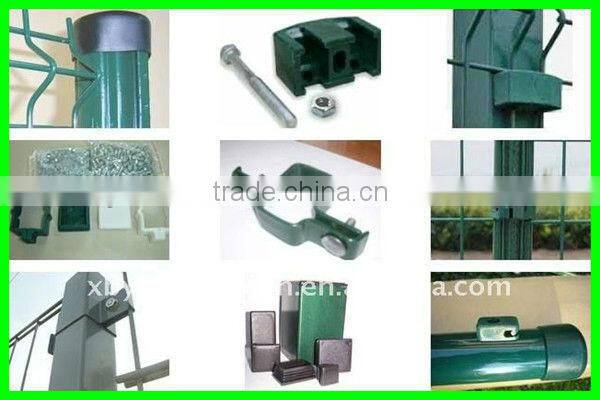

Related Accessories For the Welded Wire Mesh Fences
Welded Wire Mesh Fence Panels
Welded Wire Mesh Fence Packages
