slope protection network
- 100000 Square Meter / Square Meters per Month
- Tianjin port
- T/T Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | XinBoYuan | Model Number: | xby-14082010 |
Material: | Other, steel wire,iron wire, Galvanized Iron Wire | Type: | Other, woven mesh | Application: | Fence Mesh |
Hole Shape: | Other, Diamond | Aperture: | 30x30cm,32x32cm,33x33cm | Wire Gauge: | 8mm |
Product Description

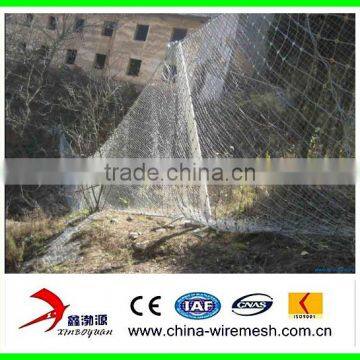

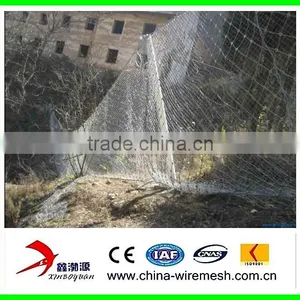

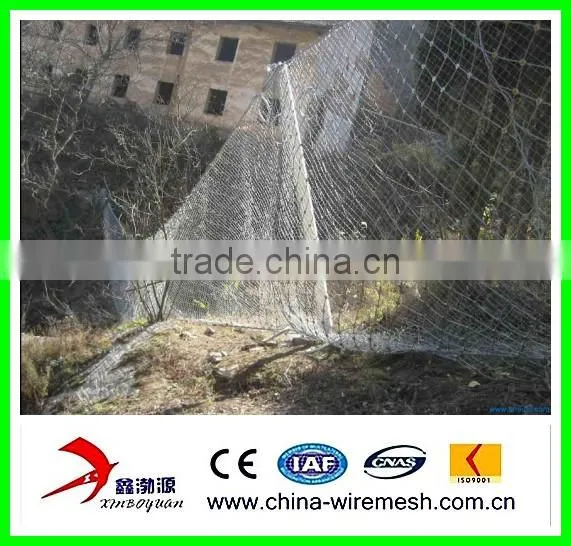

SNS Protecting Wire Mesh
SNS (safety netting system) active protection is an open system to reinforce slopes. Considering it's merits-easy to install, high efficiency, low cost and artistic effect on slopes, it has been widely used in many fields of domestic industries, such as hydropower station, civil transportation and mining engineering. The SNS flexible protection mesh overcomes the inconvenience of traditional ways to reinforce slopes, improves the effect of the vegetation, and becomes a developing method with ecological and social benefits.
Features:
- Flexible, local-global connection
- High strength light section steel structure, easy to transportation, open netting structure, favore the groundwater flow
- Line products with different requirement
- Widely used in some complicated physical characteristic area
- Simple installation
- Easy repair
Slope Stabilization Mesh System Component & Characteristic | |||
Type | Mesh Type | Structure Configure | Function |
GAR1 Common Simple Type | Steel Wire Netting | Edge Steel Wire Anchor Rope+ Support Rope t + Oversewed Rope(D0/08/300 Steel netting + Anchor Rope+ Horizontal Supported Rope | Protection, Restriction on the slope of rocks movement,Against the collapse |
GAR2 Common Type | Steel Wire Netting | System Steel Anchor Rope+ Support Rope + Oversewed Rope,Concave Orifice+ Anchor fixed + Horizontal Support Rope (2-16)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8) | Slope Reinforcement,Protect from collapse and weathering. |
GPS1 Common Use | Steel Wire Netting+ Steel Wire Grid | Same to GAR1+ Steel Wire Grid | Same To GAR1, When there are small rocks. |
GPS2 Common Use | Steel Wire Netting+Steel Wire Grid | Same To GAR2+Iron Grid + Fixed Anchor + Horizontal Support Rope2-16+ Steel Wire Netting(08/300/4*4+ SO/2.2/50 Steel Wire Grid+System Anchor | Same To GAR2, With small unstable rocks or terrene slope. |
GER1 | Steel Wire Grid | Same To GAR1, But Steel Wire Oversewed Along The Support Rope. | Same to GAR1, But the falling rock is small,mainly protect from broken rock falling. |
GER2 | Steel Wire Grid | Same To GAR2, But Steel Wire Oversewed Along The Support Rope. | Same To GAR2,But the fall rock is small. |
GTC-65A | High-Strength Steel Wire Grid | Prestressed Reinforcing Steel Bar+ Concave Orifice + Oversew Rope | Same To GPS2,Guaranteed more than 100 years, but it is not suitable that the vol. of fallrock is bigger than 1 m³. |
GTC-65B | High-Strength Grid | Reinforcing Steel Bar Anchor Rope | Same To GAR1, Guaranteed more than 100 years,But it is not suiable that the Vol. Of fallrock is bigger than 1m³. |
MG-GPS2 | Steel Wire Netting+Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope | Same To GPS2, Steel Wire Grid+ Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope + Horizontal Support Rope (16/12)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8)+SO/2.2/50 Iron Wire Grid + System Anchor fixing | Slope Reinforcement,Protect from collapse and weathering, Restrict the coast and local fallrock.It can be used for small unsafe rock or soil or soil mixed rock. |
MG-GPS2-L | Same to MG-GPS2 | Same To MG-GPS2+Landscaping of Slope | Same To MG-GPS2+ Landscaping of Slope |
1.SNS Active Wire Mesh :
2.Passive slope protection wire mesh
3.production line:
A quick look of our factory :
Some of our certifications:
1) we have a group of people with rich experience
2) we have high efficent productive equipments and technology from Germany
3) We are local producer,not company,price will be very competitive.
4) We stick to customers' request, we believe good price and high quality are not conflict .
loyalty and quality are the key points of business, Excellent product, reasonable price and timely delivery is our service objective
5) Your requirements will get our best and prompt attention.
Our company has more than 10 years' export experience in wire mesh production. Every week we will get order from customers from all over the world and load more than 5 containers goods.
Middle East( Saudi Arabia, Iraq, Jordan, Iran, Dubai, Turkey etc.),
Euro (UK, Spain,Greece etc.)
South America (Brazil, Mexico, Chile, Peru. Colombia, Paraguay, Costa Rica, etc.),
Australia,
America
Canada.
please contact to us at anytime. And welcome to visit our company!
Contact: Ms.Angel
Phone: 0086-152 3219 0527
Skype: agneljie81
TradeManager:cn209689668
