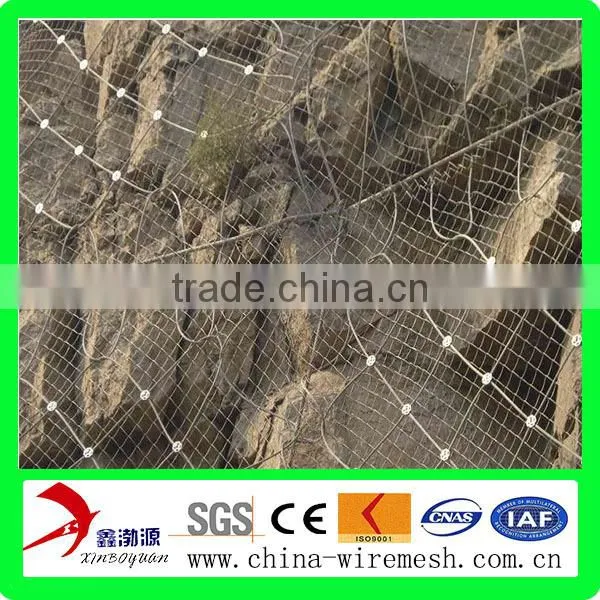

china anping active wire mesh for slope protection

Slope Stabilization Mesh System Component & Characteristic

Type

Mesh Type

Structure Configure

Function

GAR1 Common Simple Type

Steel Wire Netting

Edge Steel Wire Anchor Rope+ Support Rope t + Oversewed Rope(D0/08/300 Steel netting + Anchor Rope+ Horizontal Supported Rope

Protection, Restriction on the slope of rocks movement,Against the collapse

GAR2 Common Type

Steel Wire Netting

System Steel Anchor Rope+ Support Rope + Oversewed Rope,Concave Orifice+ Anchor fixed + Horizontal Support Rope (2-16)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8)

Slope Reinforcement,Protect from collapse and weathering.

GPS1 Common Use

Steel Wire Netting+ Steel Wire Grid

Same to GAR1+ Steel Wire Grid
GAR1+SO/2.2/50 Iron Grid

Same To GAR1, When there are small rocks.

GPS2 Common Use

Steel Wire Netting+Steel Wire Grid

Same To GAR2+Iron Grid + Fixed Anchor + Horizontal Support Rope2-16+ Steel Wire Netting(08/300/4*4+ SO/2.2/50 Steel Wire Grid+System Anchor

Same To GAR2, With small unstable rocks or terrene slope.

GER1

Steel Wire Grid

Same To GAR1, But Steel Wire Oversewed Along The Support Rope.

Same to GAR1, But the falling rock is small,mainly protect from broken rock falling.

GER2

Steel Wire Grid

Same To GAR2, But Steel Wire Oversewed Along The Support Rope.

Same To GAR2,But the fall rock is small.

GTC-65A

High-Strength Steel Wire Grid

Prestressed Reinforcing Steel Bar+ Concave Orifice + Oversew Rope

Same To GPS2,Guaranteed more than 100 years, but it  is not suitable that the vol. of fallrock is bigger than 1 m³.

GTC-65B

High-Strength Grid

Reinforcing Steel Bar Anchor Rope

Same To GAR1, Guaranteed more than 100 years,But it is not suiable that the Vol. Of fallrock is bigger than 1m³.

MG-GPS2

Steel Wire Netting+Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope

Same To GPS2, Steel Wire Grid+ Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope + Horizontal Support Rope (16/12)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8)+SO/2.2/50 Iron Wire Grid + System Anchor fixing

Slope Reinforcement,Protect from collapse and weathering, Restrict the coast and local fallrock.It can be used for small unsafe rock or soil or soil mixed rock.

MG-GPS2-L

Same to MG-GPS2

Same To MG-GPS2+Landscaping of Slope

Same To MG-GPS2+ Landscaping of Slope
