Specifications
Hexagonal wire mesh roll:Material: Low carbon iron wire
Wire diameter:2.0-4.0mm, Regular Mesh: 8*10, 10*12,14*16cm
W*L:2*50m

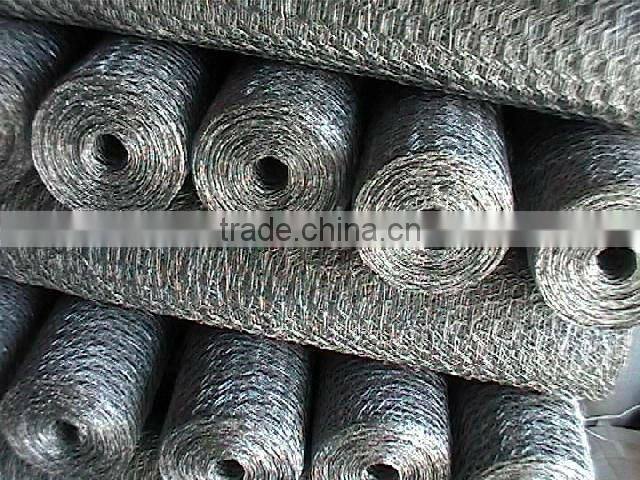

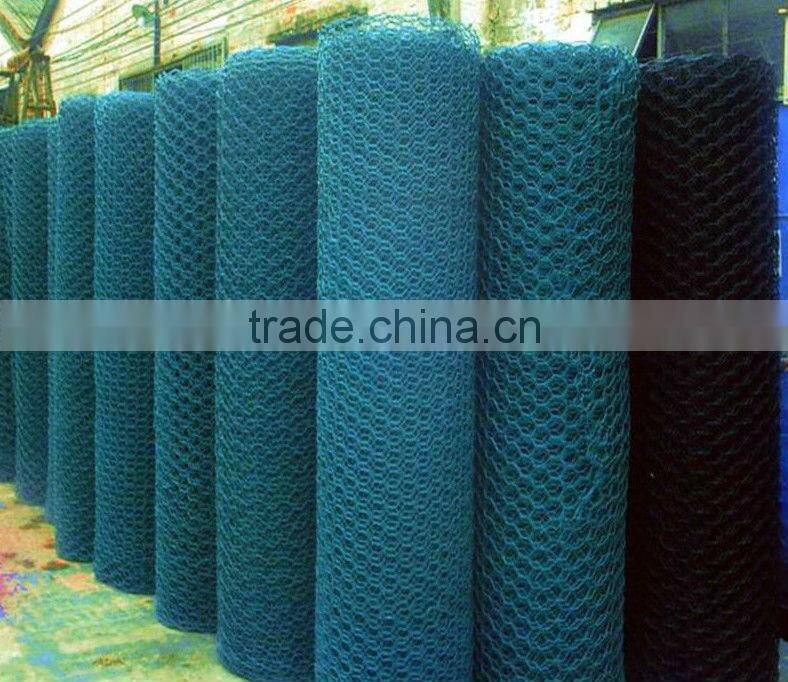

Hexagonal wire mesh/Hexagonal Animal cages------ True manufacture
Part 1: The specifcation of the hexagonal wire mesh:

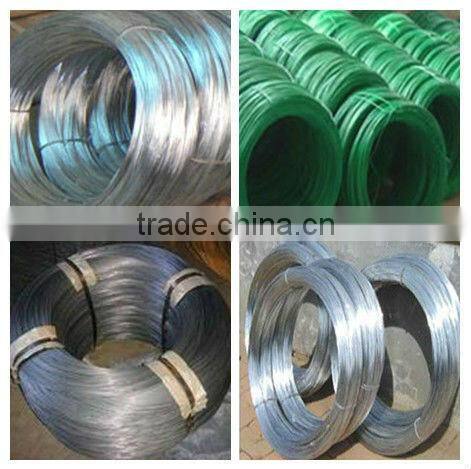

1) Material: Galvanized wire, pvc coated wire, PE wire, GALFAN wire
2) Wire diameter: 2.0-4.0mm
3) Mesh: 6*8, 8*10, 10*12, 12*15, 18*20, 21*24 (cm)
4) Roll Size: 1*20m, 2*20m, 2*50m or according to your request
5) Weaving character: Positive, anti-twist, double twist, galvanized after weaving, weaving after galvanized
6) Detail specifcation of hexagonal wire mesh:
hex. wire netting in normal twist | ||
Mesh | Wire Gauge (BWG) | |
Inch | mm | |
3/8" | 10mm | 27,26,25,24,23,22,21 |
1/2" | 13mm | 25,24,23,22,21,20, |
5/8" | 16mm | 27,26,25,24,23,22 |
3/4" | 20mm | 25,24,23,22,21,20,19 |
1" | 25mm | 25,24,23,22,21,20,19,18 |
1-1/4" | 32mm | 22,21,20,19,18 |
1-1/2" | 40mm | 22,21,20,19,18,17 |
2" | 50mm | 22,21,20,19,18,17,16,15,14 |
3" | 75mm | 21,20,19,18,17,16,15,14 |
4" | 100mm | 17,16,15,14 |
Roll Width: 0.5M-2.0M | ||
Roll Length: as the customer’s demands | ||
The specific sizes can be done according to customers request. | ||
hex. wire netting in reverse twist | ||
Mesh | Wire Gauge(BWG) | |
Inch | mm | (BWG) |
1" | 25mm | 22,21,20,18 |
1-1/4" | 32mm | 22,21,20,18 |
1-1/2" | 40mm | 20,19,18 |
2" | 50mm | 20,19,18 |
3" | 75mm | 20,19,18 |
Roll Width: 0.5M-2.0M | ||
Roll Length: as the customer’s demands | ||
The specific sizes can be done according to customers request | ||

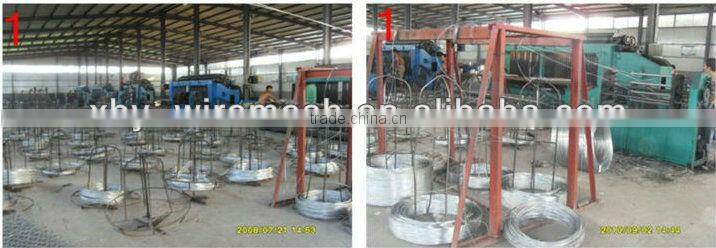

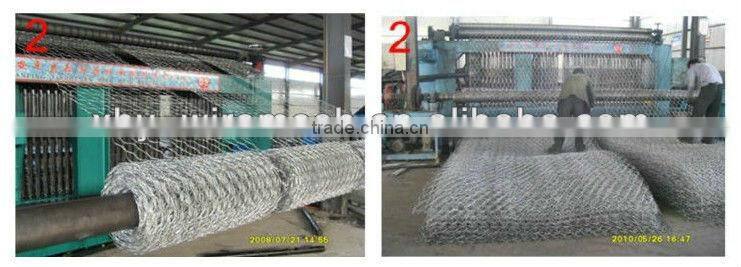

Part 2: The manufacture process of the hexagonal wire mesh:
Part 3: The application of thehexagonal wire mesh: used for feeding Chicken, ducks, gooses, rabbits and the fence of zoo,machinery protection, speedway's fencing, stadium' purse net, the evanescence belt protection
Part 4: An introduction of our company:
1. Foundation time: 1990
2. Location: Anping County, Hebei Provience (the land of wire mesh)
3. Staff: More than 200
4. Our certificates: ISO9001:2008; CE; SGS; BV
5. Our products: Gabions, fences, metal wires, etc
6. Our main markets: USA, Germany, Japan, Canada, Southeast Asia, the Middle East, Africa and all over the world.
We highly welcome the customers both domestic and abroad to visit our company and do mutual business. ----- Quality first, Customers most!
You could contact us at any time at:
Tel:86-318-8558666
Fax:86-318-8558001
Cell:86- 158 3383 9065
Trade manager: cn1500456029
E-mail: ap(at)
MSN: qiao11(at)
Web: .
