fashionable welded chain link fence

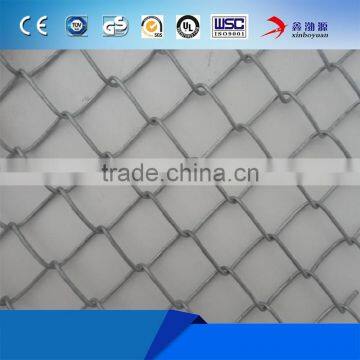

Chain link fence is named of diamond wire mesh.Color chain link fence is sometimes called vinyl or color-coated. In this process, steel wire is first coated with zinc and then covered with a vinyl polymer coating that helps prevent rust and adds color. The vinyl is generally added to both the framework and the fabric of the fence.
Some chain-link fence products use an aluminized coating to cover the steel in place of the zinc that creates a highly reflective finish. Regardless of the finish, all chain-link products offer a durable, economical fence system.
Types of the Chain Link Mesh
Classified by the surface treatment
Electro galvanized chain link mesh
Hot-dipped galvanized chain link mesh
PVC coated chain link mesh
PE coated chain link mesh
Stainless chain link mesh
Specifications/Special Features of Chain link fence:
Chain Link Fence | |
Material |
low carbon steel wire,stainless steel wire |
Process |
woven |
Wire diameter |
2mm,3mm,4mm,5mm |
Opening/Hole |
30mm*30mm,40mm*40mm,50mm*50mm,60mm*60mm, 65x65mm,75x75mm,etc |
|
1”(25mm),1.5”(40mm),2”(50mm),2-1/4”(57mm), 2-3/8”(60mm),2-1/2”(64mm),2-5/8”(67mm),3”(75mm), 4”(100mm) |
Height |
0.5m-6m,such as 1.2m,1.5m,1.8m,2m,2.1m,2.4m,2.5m,3m,3.6m,etc |
Standard roll |
15m/roll,and also 10m,15m,18m,20m,25m,30m,etc |
Selvage |
Common/Twisted edge(barb end),Flat edge,wrap edge(knuckle edge)
|
Round post size |
32mm*1.5mm,42mm*2.0mm,48mm*2.0mm,60mm*2.5mm,89mm*3.0mm |
Surface treatment |
Electro galvanized,hot dipped galvanized,PVC coated,galvanized +PVC coated |
Fittings |
Post cap,clip,tension bar,tension band,sleeve,barb wire arm etc. |
Finish of fittings |
Hot dipped galvanized,PVC coated to ensure a long life |

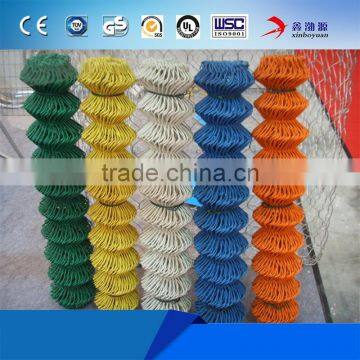

Color |
Green,white,black,brown,silver,grey,etc. |
Opening |
1” |
1.5” |
2” |
2-1/4” |
2-3/8” |
2-1/2” |
2-5/8” |
3” |
4” |
25mm |
40mm |
50mm |
57mm |
60mm |
64mm |
67mm |
75mm |
100mm |
|
Wire Diameter |
BWG 18# ~ 13# |
BWG 16# ~ 8# |
BWG 18# ~ 7# |
||||||
1.2mm ~ 2.4mm |
1.6mm ~ 4.2mm |
2.0mm ~ 4.6mm |
|||||||
Note:Materials and specifications can be made according to customers specific requirements
ANY INQUIRIES,WELCOME HERE!Tom Liu
Classifications:
Chain link fence,diamond mesh,rhombic net,chain mesh,chain link network,active network.
Chain Link Fence Uses/Usage:

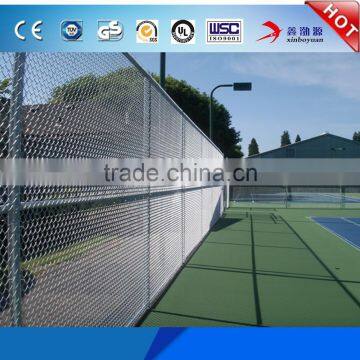

1) As fences for playground, gardens, super highway, railway, airport, residence, river banks etc.
2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.
3) Link chain fence is also used in animal fencing.
