Specifications
--- Independent R&D.--- durable performance.
--- excellent supplier with 30 years.

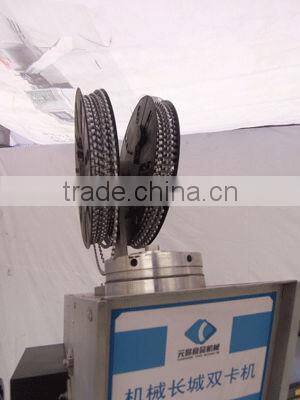

Mechanical Greatwall double Clipper JCSK –A
YC Mechanism Automatic Double Clipper JCSK-A is connected mechanically and electrically to the any vacuum stuffer or pneumatic stuffer. The voiding separator provides portions of precise weight, which are clipped as single sausage or rings. Trend-setting safety standards are guaranteed with the two-handed trigger operation required to start the first clip.
--- Tough stainless steel design construction guarantee extensive machine life.
--- Ensures resistance to aggressive cleaning.
--- Controlled electronically via a PLC and servo-frequency inverter.
--- Easy touch means simple and convenient machine operation.
--- Friendly user interface makes the machine control easier.
--- Operator is quided intuitively through the flat menu structure with informative and can easily control the complete machine at the touch of a finger.
--- Programs set of parameters easily managed screen and setting speed up product change rapidly
Automatic Double Clipper JCSK-A built with the Japan Panasonic servo motor as the drive system, the man-machine interface from Taiwan and the Japan Mitsubishi PLC. It is designed with the stated-of-the-art forced wire-feed mechanism, featuring precise and clear action.
Model |
Clip speed (Times/min.) |
Applicable Clipping |
Casing Range (mm) |
Power (KW) |
Rated Voltage (V) |
Weight (Kg) |
Dimensions (mm) |
JCSK –A |
1-80 |
15-6/15-7/15-8/15-9 |
32-130 |
2.7 |
220 |
502 |
1450*1100*2100 |
