Specifications
1.Capacity(Kg/time):100/250/500/800/1000/15002.Clinder volume(L):250
3.Cylinder speed(r/min):7
4.vacuum level(Mpa):-0.085

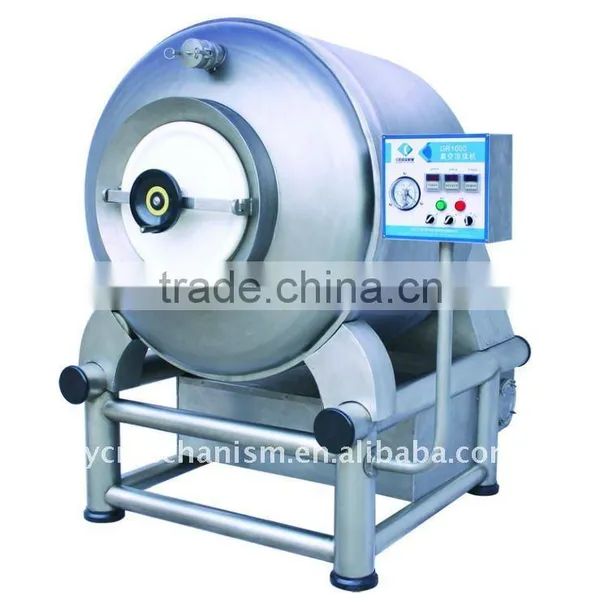

With the incorporation of physical impact principle, the meat slice and various ingredients can move upwards and downwards inside the rolling and kneading machine, through the impacting amidst them, a uniform massage and pickling can be achieved, subsequently, the affinity between the meat and the accessories, and the elasticity and productivity of the products can be greatly improved.
This Machine is super sealing effect, designed with multi-functions intermittently moving and lung respiration. The vacuum level can be automatically controlled during the processing, except Model GR500. Meanwhile the vacuum intake system and powder materials loading port are designed with the Machine.
Application of innovative technical solutions, super quality materials and components and also their accurate mounting by high-skilled employees guarantees the long life and reliability of the tumblers produced by YC Mechanism.
| Model | Capacity | Power | CylinderSpeed | VacuumLevel | Voltage | Weight | Dimensions | |
| (KW) | (Mpa) | (Kg) | (mm) | |||||
| GR-500 | 250 | 1.65 | 7 | -0.085 | 380 | 380 | 1650*1230*1420 | |
| GR-1000 | 500 | 3.3 | 7 | -0.085 | 380 | 790 | 1975*1515*1810 | |
| GR-1600 | 800 | 4.5 | 8.9/18 | -0.085 | 380 | 880 | 2080*1620*1890 | |
| GR-2000 | 1000 | 6.4 | 6 | -0.085 | 380 | 1200 | 2100*1780*2012 |
