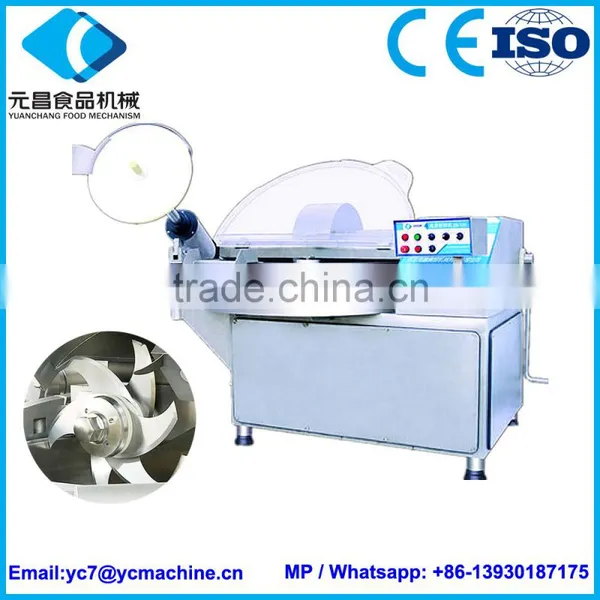

High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter

High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter photo-1
US$ 20,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
YUANCHANG
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hebei, China
Brand Name YUANCHANG
Model Number ZB-80
Voltage 380V
Power(W) 12 KW
Weight 1020 KGS
Dimension(L*W*H) 1800x1100x1200MM
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

The ZB-80 High Speed Bowl Cutter is the best choice for meat processing, because:



1. Bowl cutting is the answer for better product colour, appearance, bite, texture, quality and higher yields for linked sausages, formed meat products or other specialty processed meat.



2. Our stainless steel bowl cutter allows you to emulsify, coarse chop or fine chop while reducing your grinding time, clean up time, and labor costs.



3. The cutter also mixes while it chops and maximizes protein extraction by extracting up to 50% more protein than a grind/mix/grind system.



4. You can add the starch, sauce, water and other additive during chopping, increase the output.







Product Description



Here are the ZB Series Bowl Cutter Specification:



Model

Volume

Power

Cutter Speed

Pot Speed

Discharge Speed

Voltage

Weight

Size

ZB-80

80 L

12 KW

1110/2180/4360 R/Min.

10/16 R/Min.

85 R/Min.

380 V

1020 KGS

1800x1100x1200 MM

ZB-125

125 L

32 KW

200-4200 R/Min.

8/10 R/Min.

130 R/Min.

380 V

2500 KGS

2000x1300x1300 MM

ZB-200

200 L

64 KW

300-4000 R/Min.

0-19 R/Min.

50 R/Min.

380 V

4500 KGS

3410x2400x1320 MM

ZB-330

330 L

100 KW

300-3600 R/Min.

0-12 R/Min.

Stepless Speed

380 V

5000 KGS

3810x3000x1550 MM

ZB-420

420 L

120 KW

128-3600 R/Min.

0-9 R/Min.

Stepless Speed

380 V

5800 KGS

3900x3030x1550 MM

ZB-530

530 L

146 KW

360-3600 R/Min.

0-9 R/Min.

160 R/Min.

380 V

6800 KGS

4200x3300x1950 MM







All stainless steel construction.



Extra hard solid stainless steel bow l& vibration free.



The most sanitary design for easy, fast clean up and the latest safety features.



Improves product output and profit for increased revenue.



Sharp curved high speed knives cut rather than crush the meat under pressure.



Better color during shelf life is also evident in cut product, improve product defination, enhances eye appeal and sales.

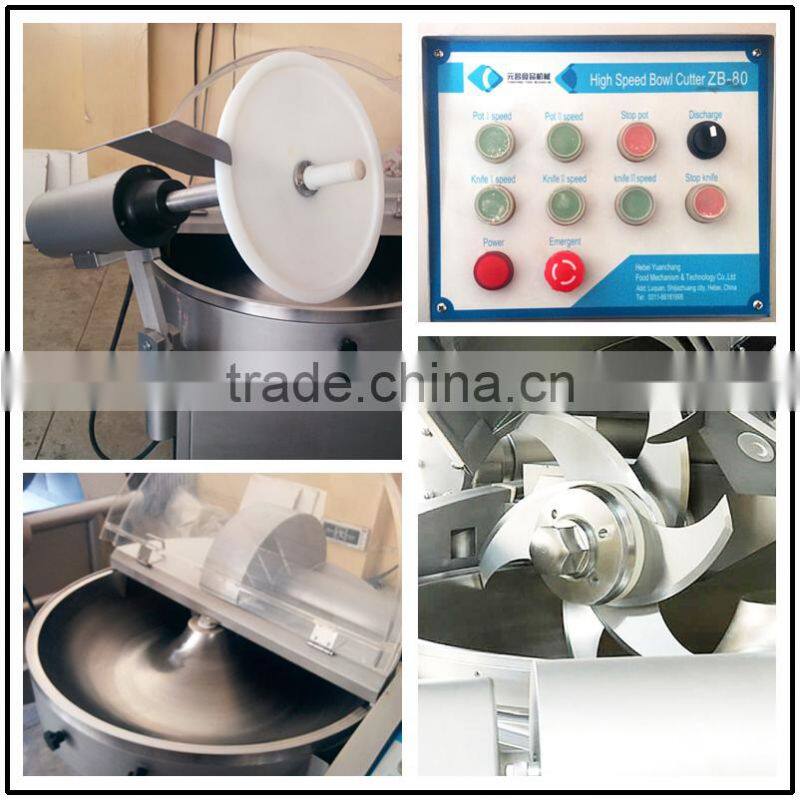

Here are ZB Series Bowl Cutter Details:



High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter





All elements and parts are use reliable and famous brand that work with us over 20 years!





High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter





Our Services



 The ZB Series Bowl Cutter can work with vacuum / Mechanical / Pneumatic sausage stuffer as a part of sausage poduction line:



High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter









We still make other machines for sausage making and meat process:



High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter





Company Information



 Yuanchang Food Mechanism & Technology co.Ltd established in 1986, processes a group of excellent technicians and qualified professionals. Distinguished ourselves through our quality and reliability.We specialized in producing various kind of meat sausage processing machines for sausage playing the Leading Role in the China’s meat machinery industry dealing with most Meat Industry Owners for many years. We invented new style pneumatic aluminum-coil dual clipper & Mechanical Greatwall dual clipper which have replaced the old ones, consider originator of the whole machine‘s movement. Designing different requirements of the machinery will be possible. The outstanding quality we made, advanced technique, abundant strength, it holds advanced professional technology in domestic meat produce as well as customer‘s high praise. Hence occupies the excellent economic and social efficiency for customers and enterprise.



High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter



 High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter







Packaging & Shipping



High Speed 80L Bowl Cutter For Meat Chopping Automtatic Bowl Cutter







FAQ



1. Are you a factory or trading company?

We are the leading factory of Meat Machine in China. We welcome you visit us!



2. How about the product quality?

The stainless steel we adopt excellent SUS304.

Each machine will be tested more than 24 hours after finishing.

All elements are use reliable and famous brand that work with us over 20 years.



3. What about the warranty and after-sale service?

Our machine has 12 months guarantee, electrical parts and air parts has 6 months guarantee.

Our engineers are available to serve oversea.



4. Are you providing training about machine installation and operation?

Yes, our engineer can teach your worker in our factory OR give them a class in your factory.



5. Is it possible to use our LOGO or special custom design?

Yes, no problem.. We have a professional technology team for new research and development.



6. How long the lead time is?

Usually 25-30 Days is enough.



7. What is the price term and payment method?

We can quote EXW, FOB, CIF and CNF price. You can pay us by T/T, L/C or Western Union.



8. How I contact you?

Skype: peterishere86;  Mob / Whatsapp / Wechat / Viber: 0086-13930187175
