Product Details
Place of Origin: | Henan, China | Brand Name: | Batte | Model Number: | ZB-DSP-120 |
Product Description

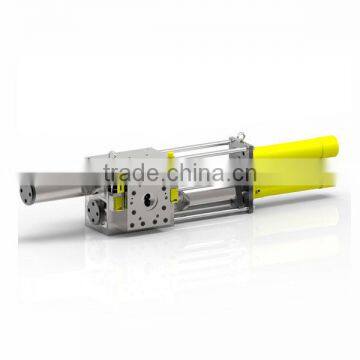

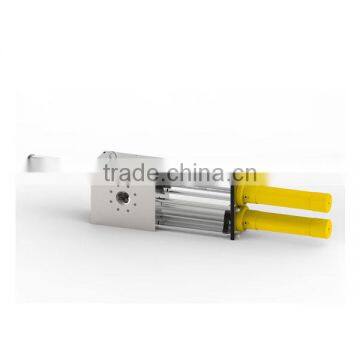

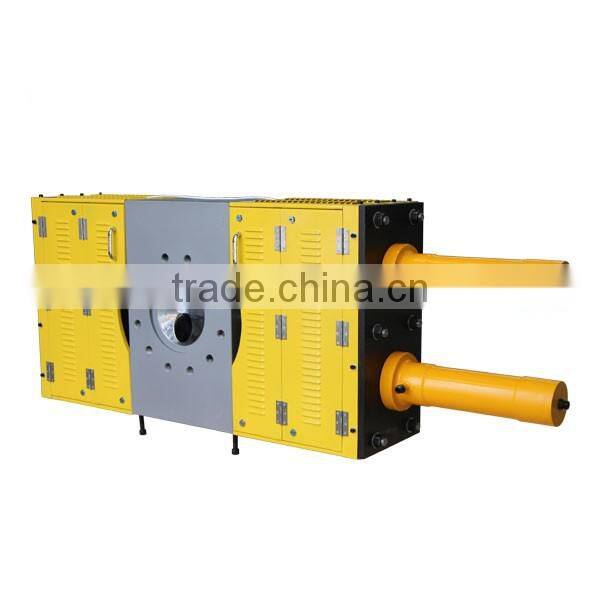

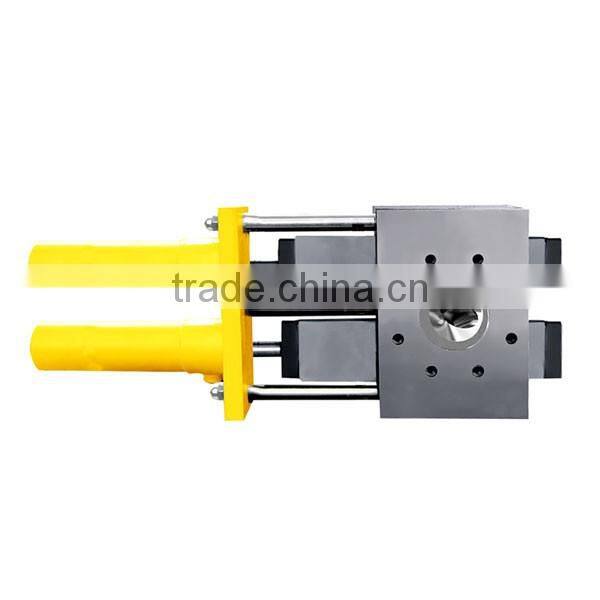

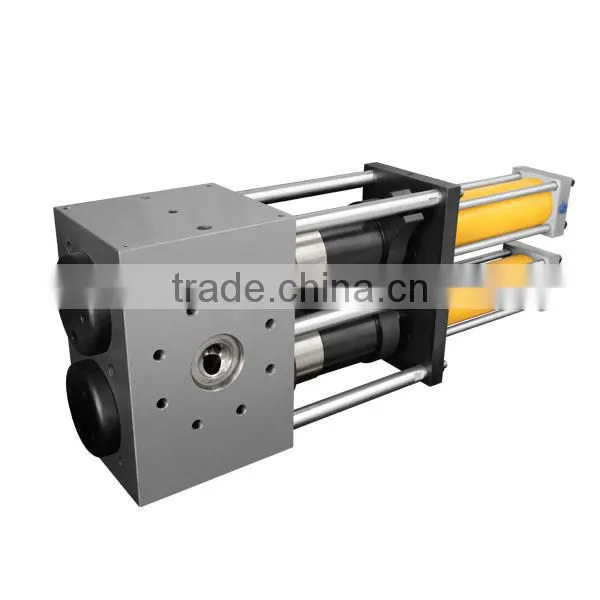

China professional automatic double plate screen changer for extruder non stop
1. Introduction of ZB-DSP-120 screen changer for extruder
Batte screen changer has excellent performance and reasonable price. It can quickly change filter
within 0.4 second. Since the screen changing process is fast, the material flow changes little, and the material will not leak out. It is widely applied in the filed of plastic sheet, plate, film, pipe, pelletizing extrusion etc.
2. Application of ZB-DSP-120 screen changer for extruder
1).Non-woven.
2).Granulation.
3).Pipe.
4).Plate.
5).Sheet.
6).Cast film.
3. Main paits of ZB-DSP-120 screen changer for extruder
1). Screen Changer Main Body, including Oil Cylinder and Heater;
2). Hydraulic Station;
3). Electric Control System;
4. Features of ZB-DSP-120 screen changer for extruder
1). No need to stop the working machine when changing the screen, no material explosion, noiseless, no material leakage, or production interrupt while working.
2). This screen changer (self-owned patent) is characterized by the convenience and safety to change the filtering screen with it. It is time-saving to install the filtering screen with the screen changer, and there is no need to manually disassemble the machine, adjust the para-position screen, or install the lock pact between different screens, thus the screen changing operation will be reduced by 90%.
3). Simple construction, reliable operation; Easy maintenance, lower running cost.
5. Parameters of ZB-DSP-120 screen changer for extruder
Model | Output (kg/h) | Filter dimension (mm) | Filter Area (mm2) | Voltage (V) | Heating Power (kw) | Working Pressure (Mpa) |
ZB-DSP-80 | 110-130 | 80 | 2*50 | 220/400 | 3500/5900 | 25/30 |
ZB-DSP-100 | 180-500 | 100 | 2*78 | 220/400 | 4500/6800 | 25/30 |
ZB-DSP-120 | 350-800 | 120 | 2*113 | 220/400 | 5500/7400 | 25/30 |
ZB-DSP-150 | 450-1250 | 150 | 2*176 | 220/400 | 6500/8600 | 25/30 |
ZB-DSP-180 | 500-1500 | 180 | 2*254 | 220/400 | 7600/9500 | 25/30 |
ZB-DSP-200 | 800-2500 | 200 | 2*314 | 220/400 | 8500/10700 | 25/30 |
ZB-DSP-250 | 1400-3700 | 250 | 2*490 | 220/400 | 9500/11700 | 25/30 |
ZB-DSP-300 | 2500-5000 | 300 | 2*706 | 220/400 | 13000/18000 | 25/30 |
1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
1. Which screen changer model we should use
Before recommending our proper screen changer model for you, we want to confirm with you the points as follows:
1.1. Do you use the extruder during production? Is it single screw extruder or twin screw one?
1.2. The materials you use, are they raw materials or recycled ones?
1.3. The hourly output;
1.4. The final products;
1.5. Do you use screen changer before? If it is, please tell us the filtration fitness and screen diameter;
1.6. How often you need to change screen;
1.7. The max. Operating pressure;
2. What is your MOQ;
At present, our MOQ is 1 set;
3. How long is the delivery time?
In general, the delivery time is 4-5 weeks.
4. What is your guarantee term?
The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free damageable parts , while the buyer pays for freight.
5. How about the oversea installation and debugging?
Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry 4.0.
