Specifications
1.15 years production experience2. germany technology
3.high quality after-sale service
4.easy operation&competitive pric

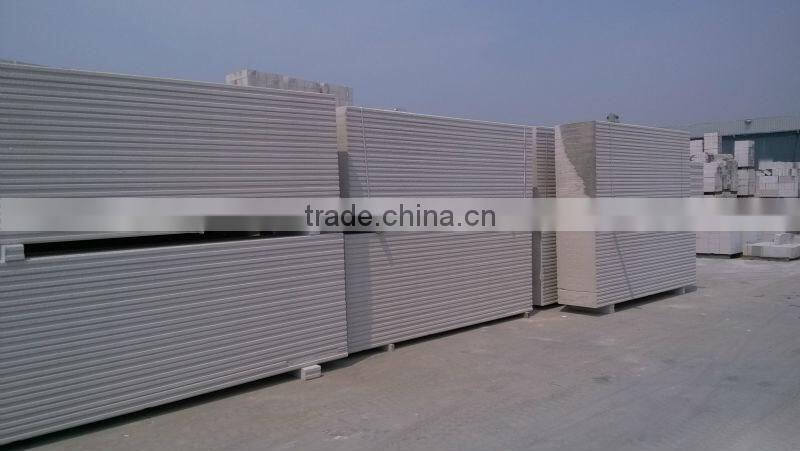

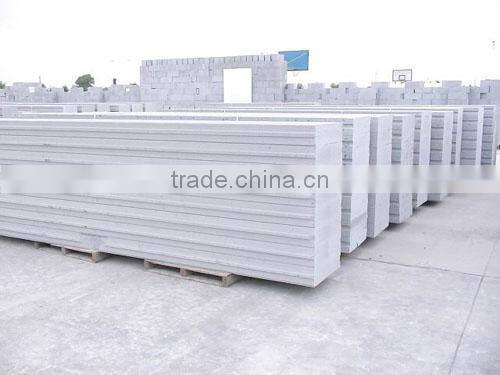

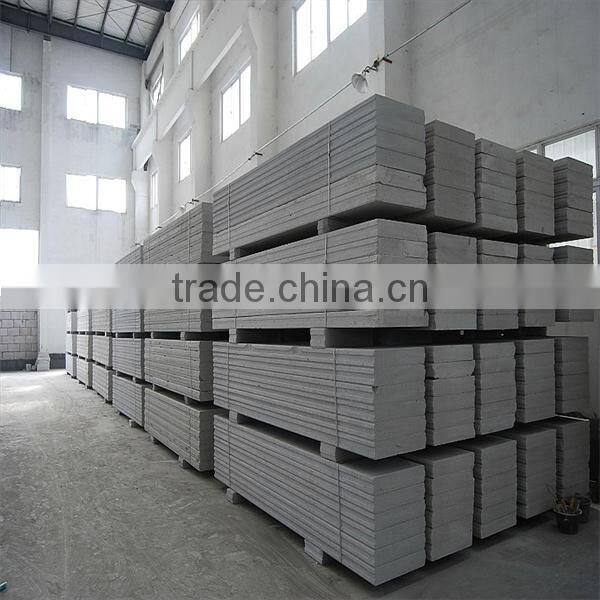

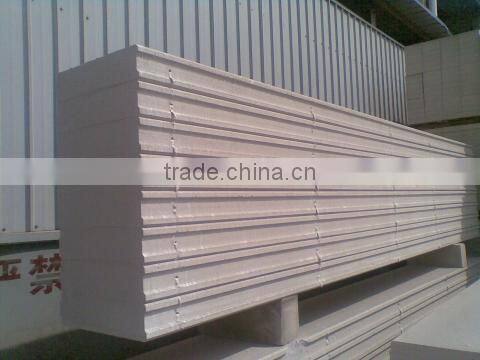

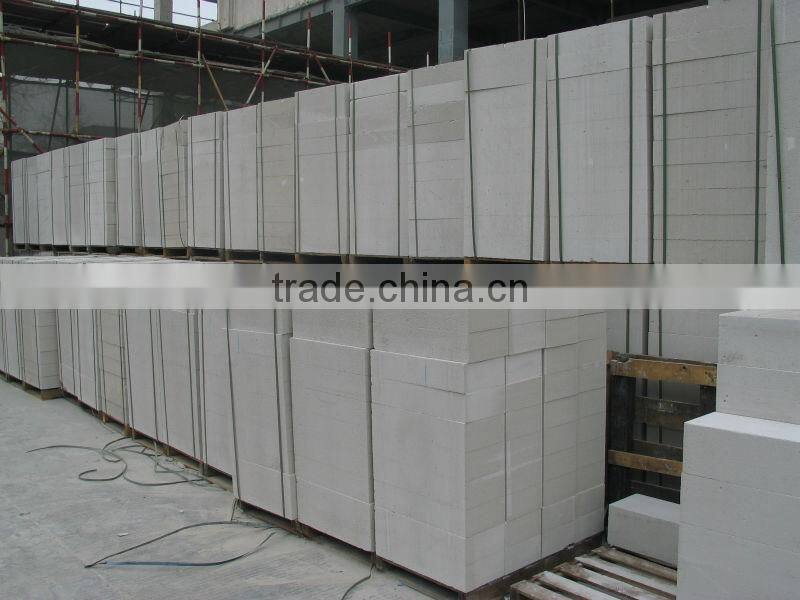

Autoclaved Aerated Concrete AAC Panel
Introduce:
AAC panel is a kind of lightweight materials with superior performance and good insulation. The raw materials is cement, lime, silica sand and so on. Adopting two-way and welded steel reinforcement mesh processed by special antirust liquid. Produce in high temperature, high pressure and steam curing.
Internal wall panel
Specification (mm) | Grade | Interface | Strength grade (Mpa) | Measured dry density (kg/m³) |
| ≤3000×600×75 | B05 | T/Flat shape | 3.5 | 486 |
| ≤4000×600×100 | B05 | T/Flat shape | 3.5 | 486 |
| ≤5000×600×125 | B05 | T/Flat shape | 3.5 | 486 |
| ≤6000×600×150 | B05 | T/Flat shape | 3.5 | 486 |
External wall panel
Specification (mm) | Grade | Interface | Strength grade (Mpa) | Min design load (kn/m²) | Measured dry density (kg/m³) |
| ≤3600×600×100 | B05 | T shape | 3.5 | ≥1.2 | 486 |
| ≤4200×600×125 | B05 | T shape | 3.5 | ≥1.2 | 486 |
| ≤5200×600×150 | B05 | T shape | 3.5 | ≥1.2 | 486 |
| ≤6000×600×175 | B05 | T shape | 3.5 | ≥1.2 | 486 |
| ≤6000×600×200 | B05 | T shape | 3.5 | ≥1.2 | 486 |
Roof&Floor panel
Specification (mm) | Grade | Interface | Strength grade (Mpa) | Min design load (kn/m²) | Measured dry density (kg/m³) |
| ≤2600×600×100 | B05 | T/L shape | 3.5 | ≥1.4 | 486 |
| ≤3100×600×125 | B05 | T/L shape | 3.5 | ≥1.4 | 486 |
| ≤3700×600×150 | B05 | T/L shape | 3.5 | ≥1.4 | 486 |
| ≤4600×600×175 | B05 | T/L shape | 3.5 | ≥1.4 | 486 |
| ≤5600×600×200 | B05 | T/L shape | 3.5 | ≥1.4 | 486 |

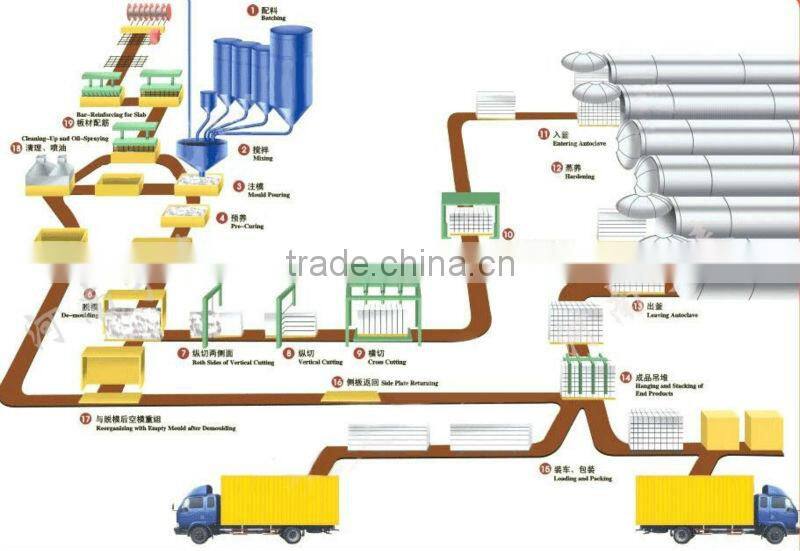

AAC PANEL PRODUCTION PROCESSING

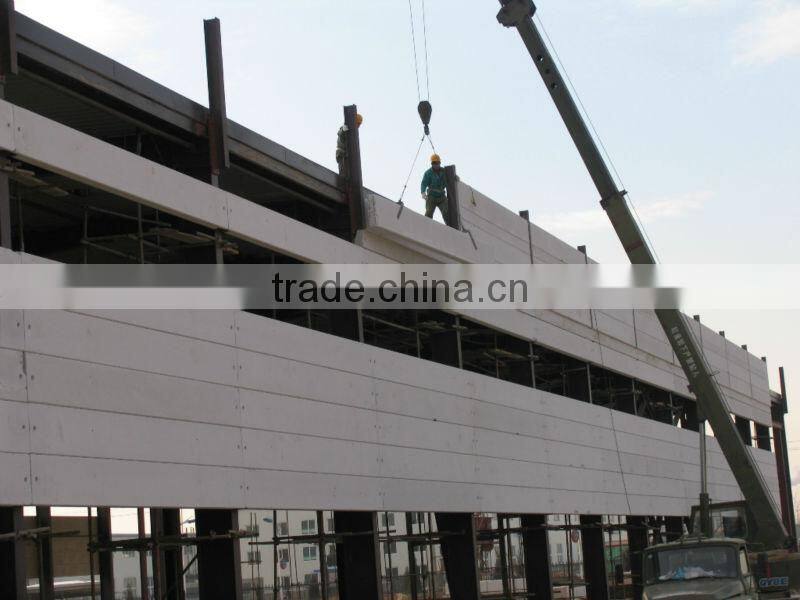

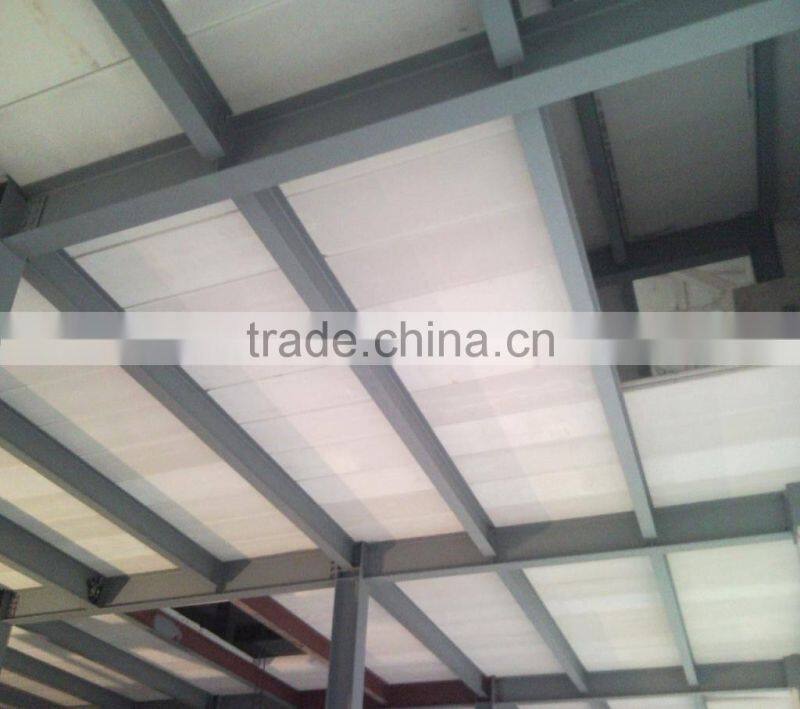

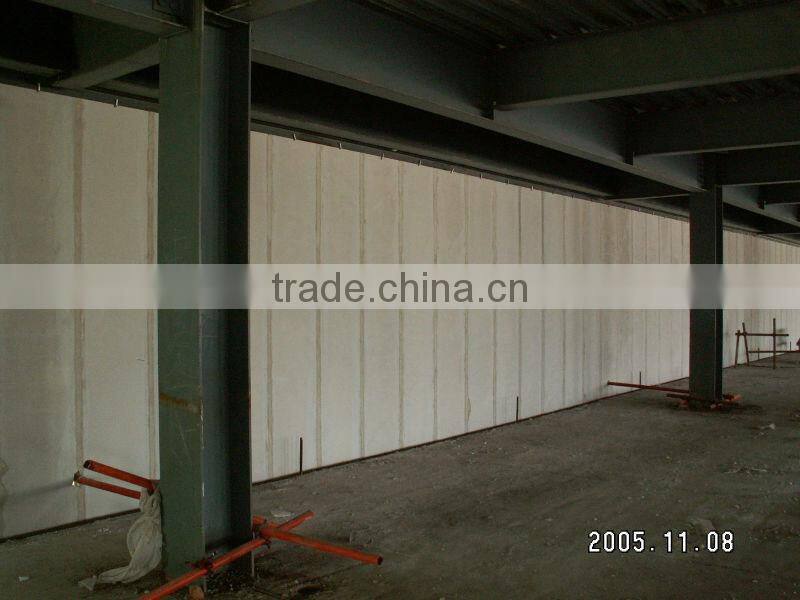

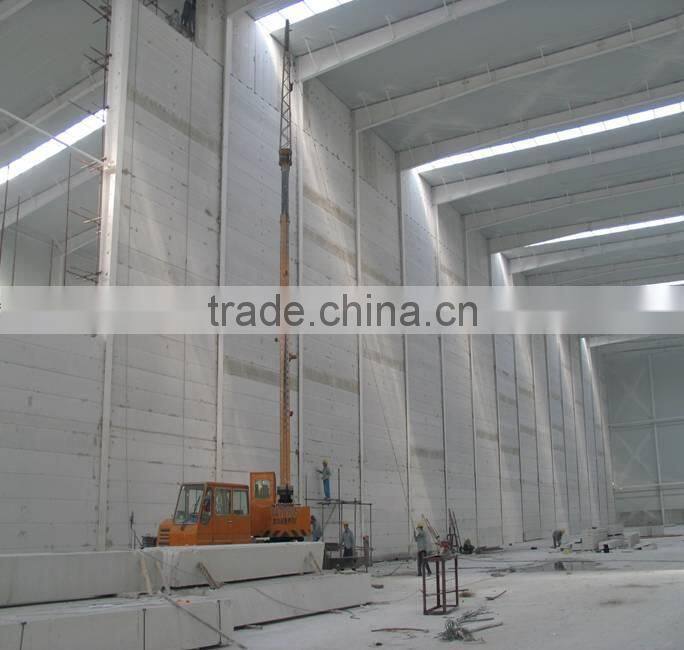

Application
Welcome to visit our company
DONGYUE MACHINERY GROUP(LINYI DONGYUE IMP&EXP CO.,LTD)
Tell/Fax: 0086 539 8025589 Website:
