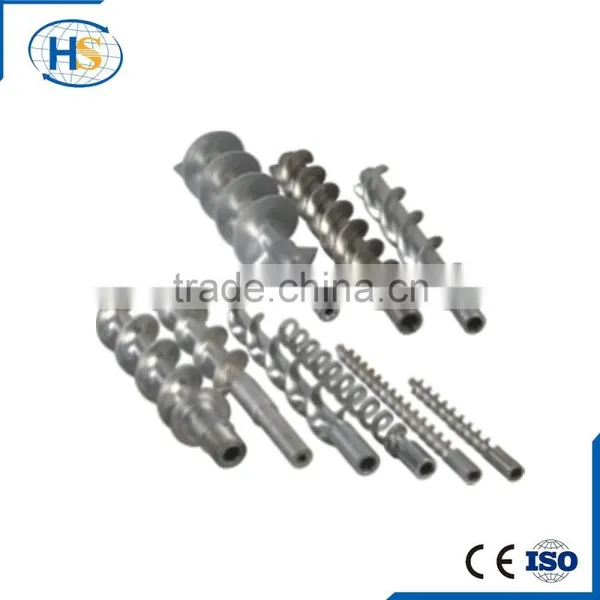

Screw Element Wholesale
Material :
>38CrMoAlA material screw: Ordinary working conditions
>Cr12MoV material screw: Abrasive conditions like glass fiber reinforcement
>W6Mo5Cr4V2 material screw: Abrasive conditions like glass fiber reinforcement
Technical data:
Model |
Screw Diameter D (mm) |
TSE-20 |
22 |
TSE-30 |
31 |
TSE-35 |
35.6 |
TSE-40 |
41 |
TSE-52 |
51.5 |
TSE-65 |
62.4 |
TSE-75 |
71 |
TSE-95 |
93 |
TSE-135 |
133 |
Introduction:
>Powder alloy hot isostatic pressure(PW+HIP) is a special technology for preparing high-performance materials, which has become a proinent representative for the twi screw extruder high-end abrasion resistance and corrosion resistance material system.wich high density,non-segregation and pore defects.
Company introduction:
Screw element match on technical data of TSE twin screw extruder
| Mode |
Diameter (mm) |
L/D |
Screw rotary speed (r/min) |
Motor power(kw) | Torque(N.m) | Capacity(kg/h) |
| TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 1-10 |
| TSE-30A | 31 | 32-48 | 500 | 11 | 105 | 5-30 |
| TSE-35B | 35.6 | 32-48 | 600 | 18 | 119 | 20-60 |
| TSE-40A | 41 | 32-52 | 600 | 15 | 119 | 65-110 |
| TSE-40B | 41 | 32-52 | 400 | 22 | 263 | 90-150 |
| TSE-52B | 51.5 | 32-64 | 600 | 75 | 597 | 225-250 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-300 |
| TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
| TSE-75D | 71 | 32-64 | 600 | 220-250 | 1990 | 500-1000 |
| TSE-95A | 93 | 32-64 | 500 | 250 | 2387 | 600-1000 |
| TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |
| TSE-135 | 133 | 32-64 | 500 | 750 | 7162 | 1500-2250 |
CE SIO9001 TUV Certification
Good service engineers can speak english for machine errection in the world.
Develivery for customer
