Industrial heat exchanger price rotary heat recovery with high efficiency
Specifications of rotary heat exchanger
2.Made of aluminum coating 3A molecular sieve
3.Double Sealing System
4.Eurovent and CE certified
5. 3A molecular sieve coating for total heat type.
6. Both sensible and total type are available.
7.saving Installation space
Working principle of Eurovent certified 3A molecular sieve ERV rotary exchanger
The aluminum covering 3A molecular sieve rotor diameter 500-5000mm hygroscopic heat wheel is composed of alveolate heat wheel, case, drive system and sealing parts. The exhaust and outdoor air pass through half of the wheel separately, when the wheel rotates, the heat and moisture are exchanged between the exhaust and outdoor air. The energy recovery efficiency is up to70% to 90%.
Professional Selection Program for rotary heat exchanger to mare sure accurate selecting.
We have developed a calculation program for simple selection of a rotary heat exchanger model. It can not only be used as a single design selection program, but can also be combined into your program by DLL. We can add it to your program upon your request, too. Please contact us for the selection program.
Selection Chart
Specifications and dimensions of rotary heat exchanger
| Model | Rotor diameter(mm) | Wheel length(mm) | Wheel width(mm) | Wheel height(mm) | Vot./Hz | Power(Kw) | Kg |
| HRT-500 | 500 | 600 | 340 | 600 | 380v/50Hz | 0.09 | 42 |
| HRT-600 | 600 | 700 | 340 | 700 | 380v/50Hz | 0.09 | 59 |
| HRT-700 | 700 | 800 | 340 | 800 | 380v/50Hz | 0.09 | 71 |
| HRT-800 | 800 | 900 | 340 | 900 | 380v/50Hz | 0.09 | 82 |
| HRT-900 | 900 | 1030 | 340 | 1030 | 380v/50Hz | 0.09 | 102 |
| HRT-1000 | 1000 | 1130 | 340 | 1130 | 380v/50Hz | 0.09 | 130 |
| HRT-1100 | 1130 | 1230 | 340 | 1230 | 380v/50Hz | 0.09 | 151 |
| HRT-1200 | 1230 | 1330 | 340 | 1330 | 380v/50Hz | 0.18 | 169 |
| HRT-1300 | 1330 | 1430 | 340 | 1430 | 380v/50Hz | 0.18 | 190 |
| HRT-1400 | 1430 | 1530 | 340 | 1530 | 380v/50Hz | 0.18 | 205 |
| HRT-1500 | 1530 | 1630 | 340 | 1630 | 380v/50Hz | 0.18 | 220 |
| HRT-1600 | 1630 | 1730 | 340 | 1730 | 380v/50Hz | 0.18 | 239 |
| HRT-1700 | 1730 | 1830 | 340 | 1830 | 380v/50Hz | 0.25 | 266 |
| HRT-1800 | 1830 | 1930 | 340 | 1930 | 380v/50Hz | 0.25 | 293 |
| HRT-1900 | 1930 | 2030 | 340 | 2030 | 380v/50Hz | 0.25 | 320 |
| HRT-2000 | 2030 | 2130 | 340 | 2130 | 380v/50Hz | 0.25 | 370 |
| Model | Rotor diameter(mm) | Wheel lengt(mm) | Wheel width(mm) | Wheel height(mm) | Vot./Hz | Power(Kw) | Weight(Kg) |
HRT-2200 |
2230 |
2400 |
340 |
2400 |
380v/50Hz |
0.37 |
420 |
| HRT-2400 | 2430 | 2600 | 340 | 2600 | 380v/50Hz | 0.37 | 500 |
| HRT-2600 | 2630 | 2800 | 340 | 2800 | 380v/50Hz | 0.37 | 570 |
| HRT-2800 | 2830 | 3000 | 340 | 3000 | 380v/50Hz | 0.37 | 860 |
| HRT-3000 | 3030 | 3200 | 340 | 3200 | 380v/50Hz | 0.55 | 950 |
| HRT-3200 | 3230 | 3400 | 340 | 3400 | 380v/50Hz | 0.55 | 1039 |
| HRT-3400 | 3430 | 3600 | 340 | 3600 | 380v/50Hz | 0.55 | 1110 |
| HRT-3600 | 3630 | 3800 | 340 | 3800 | 380v/50Hz | 0.55 | 1220 |
| HRT-3800 | 3830 | 4000 | 340 | 4000 | 380v/50Hz | 0.55 | 1360 |
| HRT-4000 | 4030 | 4200 | 340 | 4200 | 380v/50Hz | 0.75 | 1500 |
| HRT-4200 | 4230 | 4400 | 340 | 4400 | 380v/50Hz | 0.75 | 1645 |
| HRT-4400 | 4430 | 4600 | 340 | 4600 | 380v/50Hz | 0.75 | 1750 |
| HRT-4600 | 4630 | 4800 | 340 | 4800 | 380v/50Hz | 1.1 | 1830 |
| HRT-4800 | 4830 | 5000 | 340 | 5000 | 380v/50Hz | 1.1 | 1980 |
| HRT-5000 | 5030 | 5200 | 340 | 5200 | 380v/50Hz | 1.1 | 2100 |
Application of rotary heat exchanger
Rotary heat exchanger (wheel) is mainly used in building ventilation or in the air supply/discharge system of air conditioning equipment. The wheel transfers the energy (cold or heat) contained in exhaust air to the fresh air supplied to indoor. It’s one important equipment and key technology in the field of construction energy-saving.

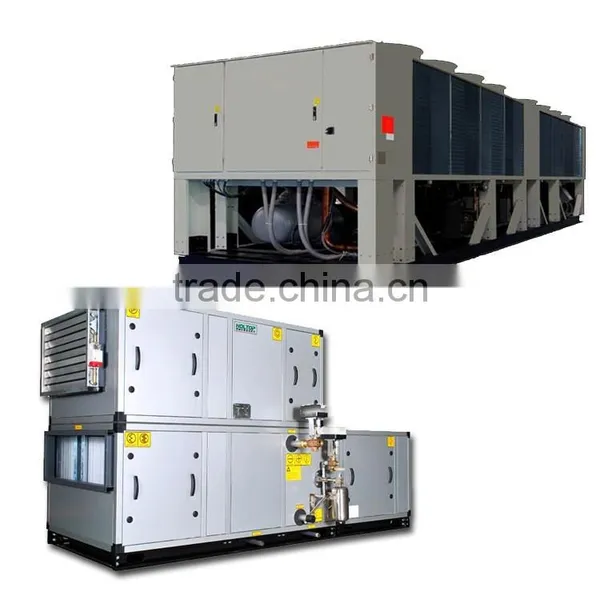

Rotary heat exchanger can built in air handling unit(AHU)as a main part of the heat recovery section. Usually
side panel of the exchanger casing is unnecessary, except that bypass has been set in AHU.
About Beijing Holtop Artificial Environment Technology Co., Ltd
1). Founded in 2002, Holtop is the leading and biggest Heat Recovery Ventilator manufacturer in China specializing in the production of air to air heat recovery equipments, its product range mainly covers:
1) Heat & Energy Recovery Ventilators.
2) Rotary & Plate Heat Exchangers.
3) Air Handling Units.
2) Covering an area of more than 30,000 square meters and annual production ability of heat recovery equipment reaches 100,000 sets, Holtop owns numeral control machines, national approved labs, and has successfully passed the certifications of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT.
3) Due to good quality and best service, Holtop wins cooperation with many big brands like Midea, LG, Hitachi, McQuay, York,Trane and Carrier, etc.,details as below. What is more, Holtop is the qualified supplier for Beijing Olympics 2008 and Shanghai World Exposition 2010.
A View to HOLTOP Factory.
Our Service Promise
1) Repy your enquiry within 24 hours.
2) Best quality and service.
3) Experienced sales manager answer all your questions smoothy in English.
4) Can offer professional technical support to clients.
5) Exclusive and unique solution can be provided by our experienced engineer.
6) Special discount will be offered to you.
More information, pls visit website:
Thanks for your visiting our website and wish you good business!
