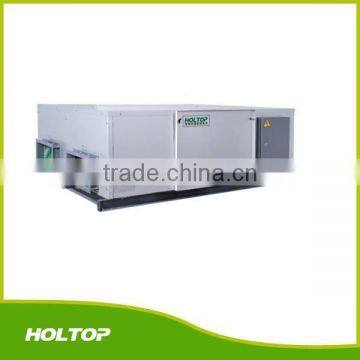

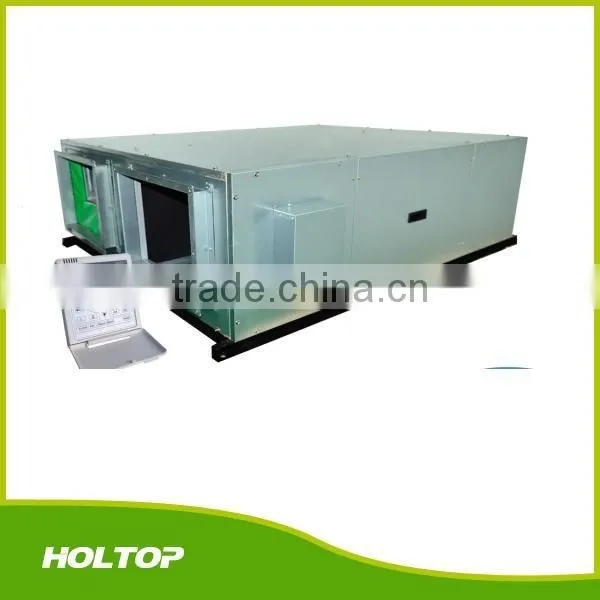

Middle airflow fresh air unit ventilation system with remote control
Features of XHBQ-D**TG series Heat recovery fresh air ventilation
1. 20mm double skin panel, lower noise and stronger structure.
2. 30%-40% lower power consumption.
3. New PU thermal insulation construction, heat-retaining capacity 5% increased.
4. New interior structure design to decrease wind drag, better whole performance.
5. New access door design & easier daily maintenance.
6. New HDK-20B backlit LCD controller with additional function.
Specifications of XHBQ-D**TG series Heat recovery fresh air ventilation
Controller of XHBQ-D**TG series Heat recovery fresh air ventilation
HDK-10 intelligent controller
- 3 speeds
- Temperature display
- Weekly timer
- Auto restart
- Optional CO2 sensor connection
- BMS system
Heat exchanger of XHBQ-D**TG series Heat recovery fresh air ventilation

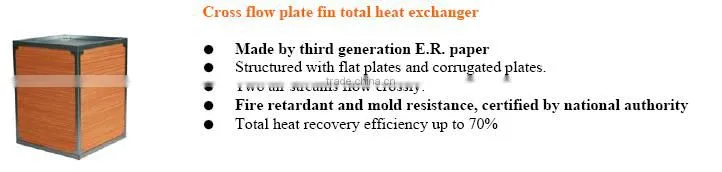

ER paper enthalpy heat exchanger (for XHBQ-TG series)
Heat exchanger of XHBQ(X)-TG series HRV is made of ER paper which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance. The clearance between the fibers is very small, so only the moisture molecules of small diameter can go through, the odor molecules of larger diameter are unable to pass through it. By this means, the temperature and humidity can be recovered smoothly, and prevent the pollutants infiltrating to the fresh air.

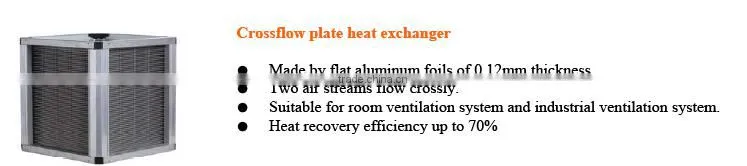

Aluminum sensible heat exchanger (for XHBX-TG series)
Sensible heat recovery air to air heat exchanger is used in comfortable air conditioning ventilation system and technical air conditioning ventilation system. Supply air and exhaust air totally separated, heat recovery in winter and cold recovery in Summer. Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the air streams flow crossly through the channels, and fresh air and exhaust air is totally separated.
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
Holtop is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 2002, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Beijing Olympic and Shanghai Expo 2010, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
Holtop certificate
Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, Eurovent, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
