Plate Air System ,heat Recovery Heat Exchanger

Working principle of plate heat exchanger

The flat plates and the corrugated plates form channels for fresh or exhaust air stream. When the two air steams passing through the exchanger crossly with temperature difference, the energy is recovered.

Main features of plate heat exchanger

1. Made of E.R. paper, which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance.
2. Structured with flat plates and corrugated plates.
3. Two air streams flow crossly.
4. Suitable for room ventilation and industrial ventilation system.
5. Heat recovery efficiency up to 70%

Material of plate heat exchanger

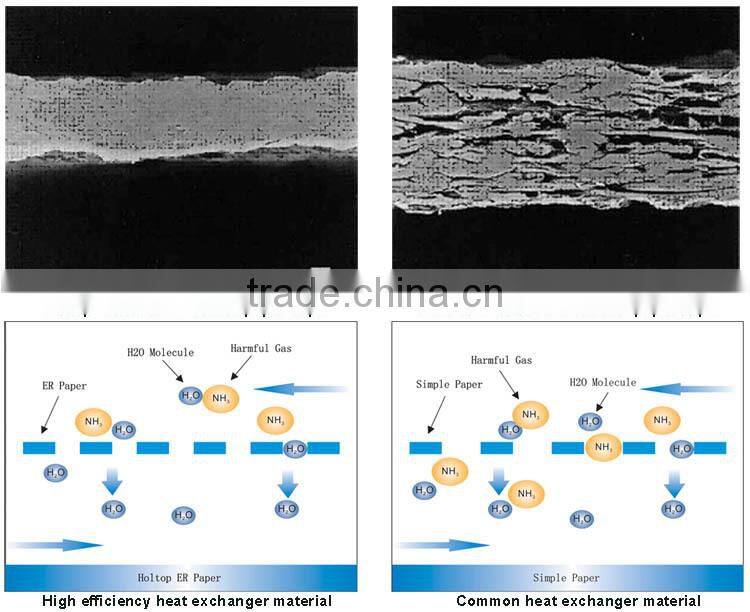

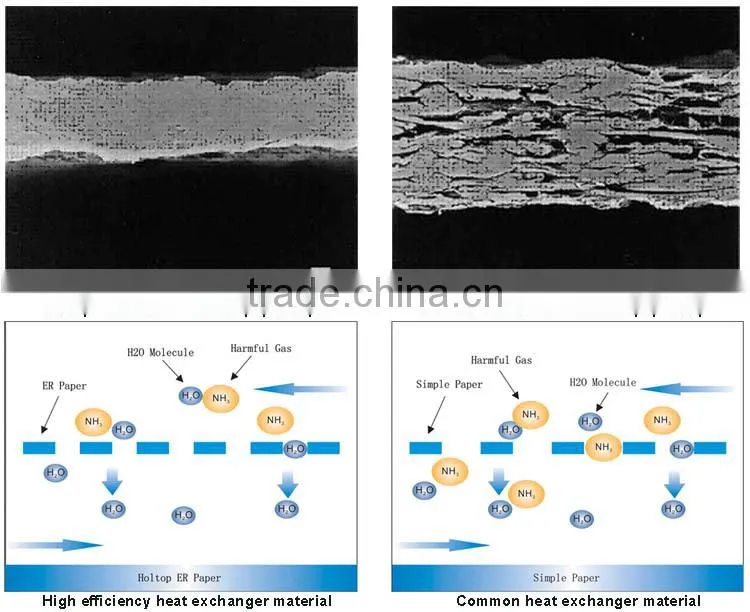

Total heat exchanger is made of ER paper which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance. The clearance between the fibers is very small, so only the moisture molecules of small diameter can go through, the odor molecules of larger diameter are unable to pass through it. By this means, the temperature and humidity can be recovered smoothly, and prevent the pollutants infiltrating to the fresh air.

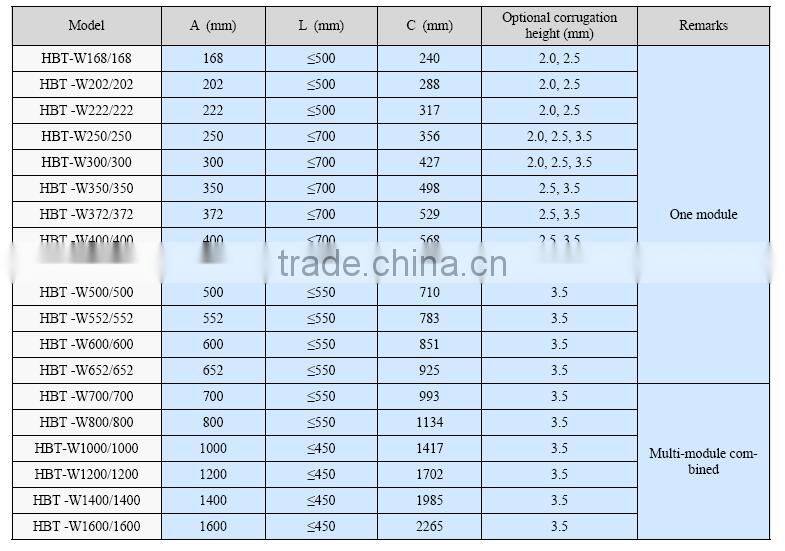

 Specifications of plate heat exchanger

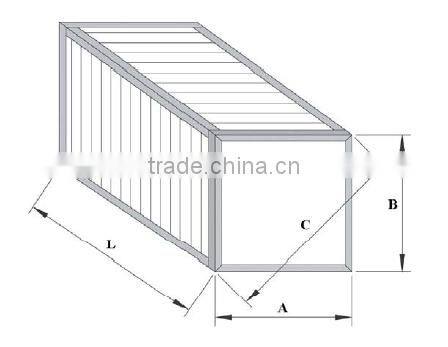

Size of plate heat exchanger

Please note that our model construct by heat exchanger profile size, optional length and optional corrugation (plate) spacing, for example HBT-W168/168-400-2.0B means profile size is 168*168mm, length is 400mm and spacing 2mm.
