Cheap Price Ventilator Unit for Home

      Cheap price ventilator unit for home

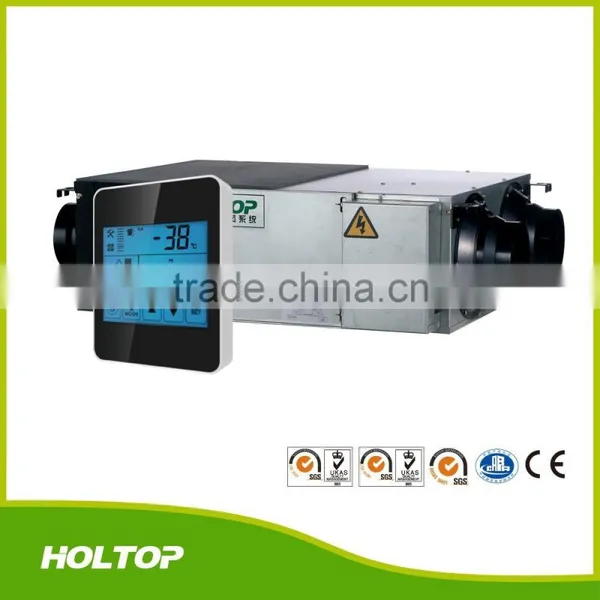

Features of Holtop ceiling type silent design enthalpy heat recovery ventilation unit
Perfect silence design
Airflow from 150-1300m3/h
Heat or energy recovery
Quiet operation
Double filters
Easy installation to ceiling
By-pass function

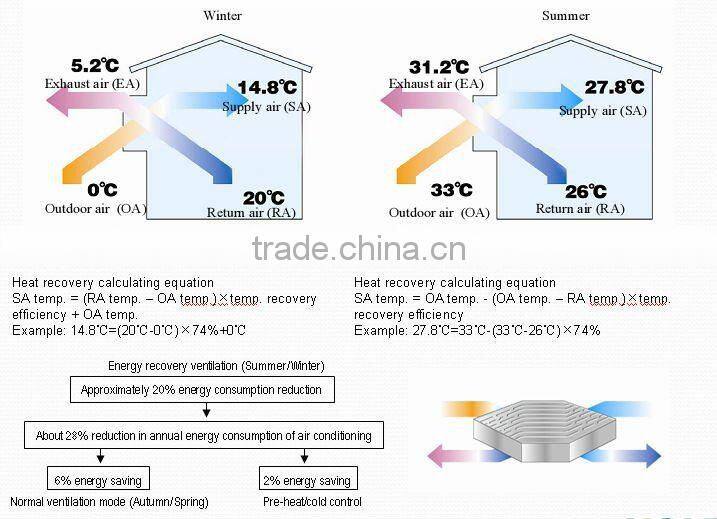

Energy saving principle  of  energy reclaim  ventilatopn system

It can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only smooth away the problem of indoor pollution, but also saving energy.

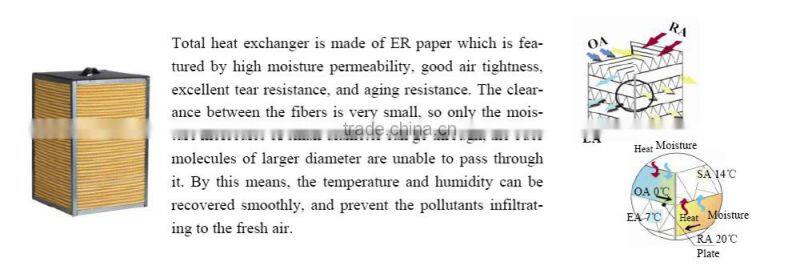

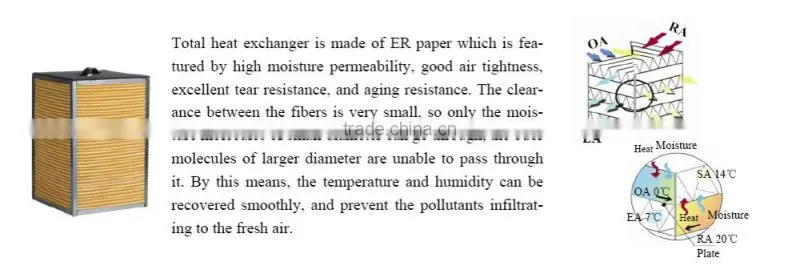

Working principle of crossflow heat exchanger
Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the partial air streams flow crossly and partial air streams flow counter through the channels, and fresh air and exhaust air is totally separated.

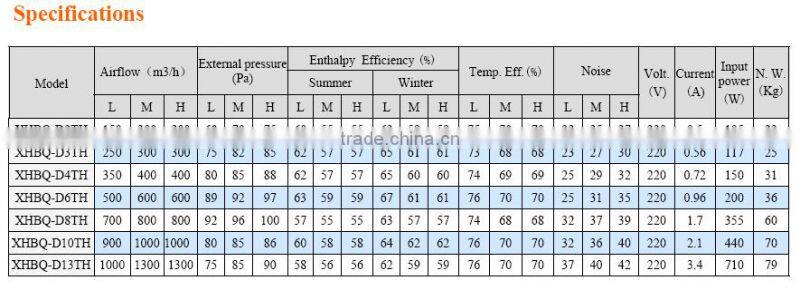

Specification of silent design enthalpy heat recovery ventilation unit

  Controller  of silent design enthalpy heat recovery ventilation unit

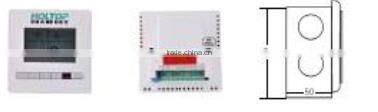

Standard Type- HDK-08

1. LED Display
2. 3 Speeds
3. Switch of normal ventilation and energy recovery
4. Indoor temperature measurement
5. Temperature value revision

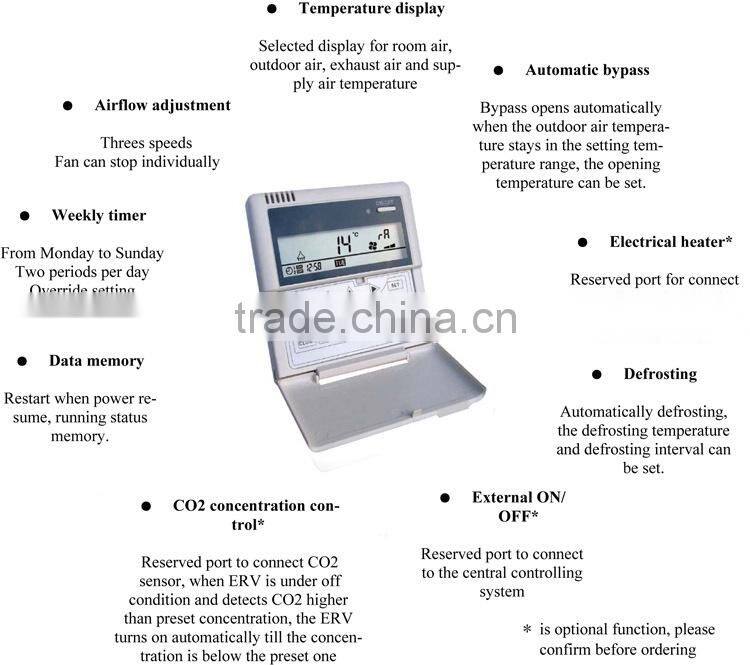

Intelligent Type(Optional)

1.Temperature LED display.

2.Automatic bypass
3.Electrical heater
4.Defrosting
5.External ON/OFF
6.CO2 concentration control
7.Smart alarm
8.Data memory
9.Weekly timer
10.Airflow adjustment
