festo pneumatic cylinder :

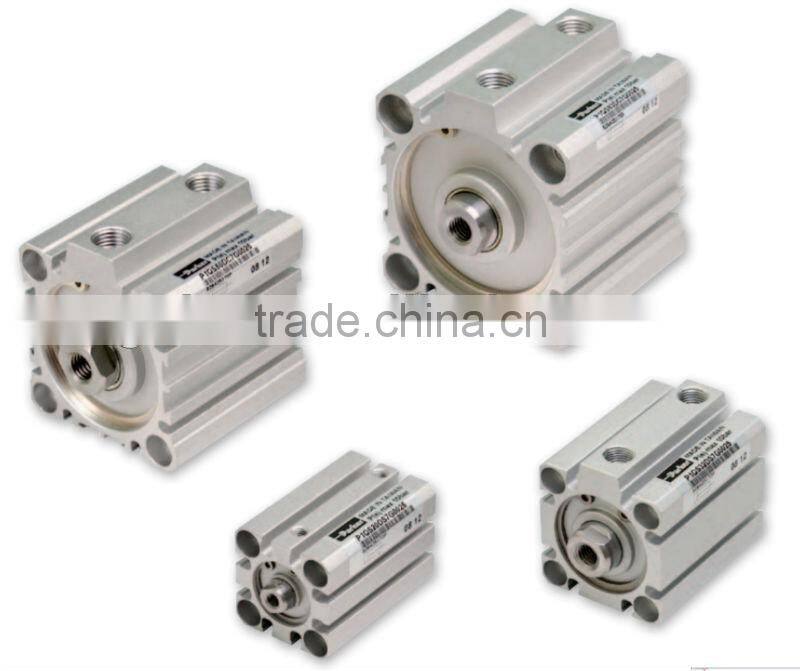

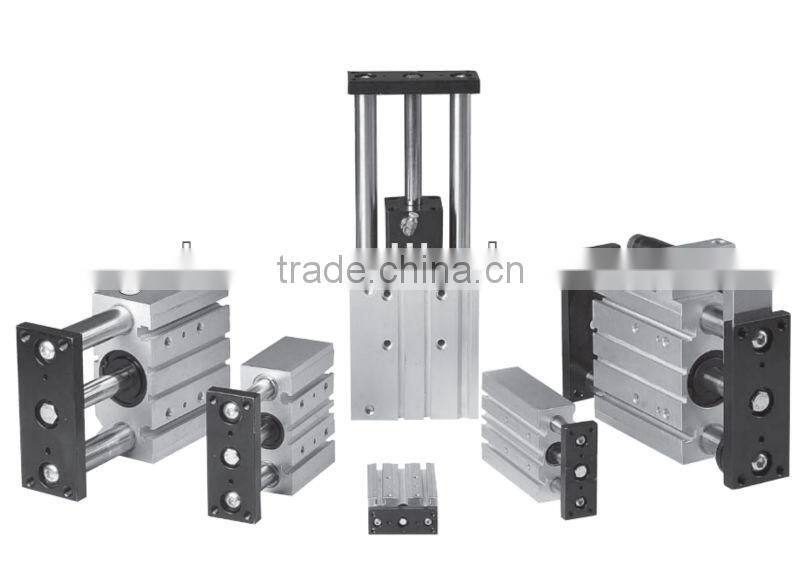

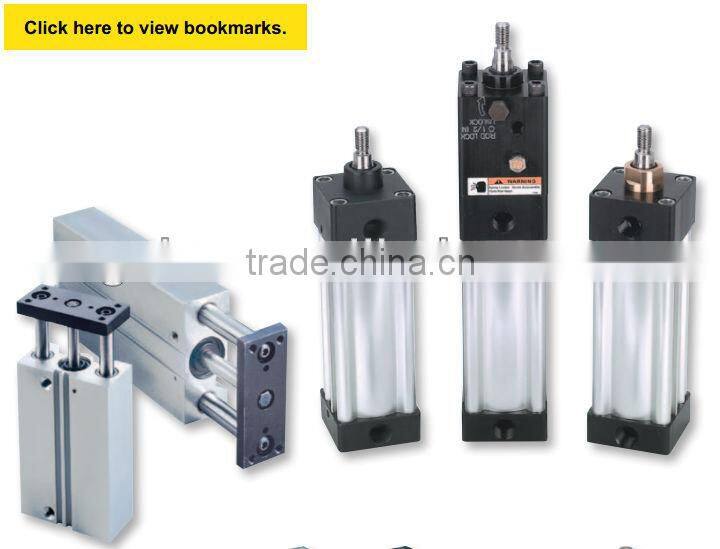

The pneumatic cylinder for Asia market and ISO6431/VDMA24562 standard pneumatic cylinder (both tie-rod and mickey mouse cylinder) for international market, also we have square cylinder according to DIN24335 standard, compact cylinder and ISO6432 round cylinders are in mass production, the double shaft, guided cylinder, slide cylinder, pen cylinder, needle cylinder are also provided as normal.
With more than 10 years sufficient expenrience and strong technique support, we also design different kind of pneumatic cylinders according to customers requirement. For any special pneumatic cylinder requirement please contact us freely.
High quality is always considered as one of the most important culture and team spirit style. From the cylinder end cover, to piston, seal, bolts...Every parts of our pneumatic cylinders are checked very strictly to make sure the quality is superior and can be supplied to any customer very proudly.
Specification:
| C Series Pneumatic Cylinder Specification | |||||||||||
| Bore Diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
| Rod Diameter(mm) | 12 | 16 | 20 | 20 | 25 | 25 | 32 | 40 | 40 | 50 | 63 |
| Thrust at 0.5Mpa (N) | 402 | 628 | 981 | 1559 | 2513 | 3927 | 6136 | 10053 | 15708 | 24544 | 40212 |
| Pull at 0.5Mpa(N) | 346 | 528 | 792 | 1369 | 2268 | 3682 | 5734 | 9425 | 15080 | 23748 | 37699 |
| Max Stroke Length(mm) | 1000 | 2000 | 3000 | ||||||||
| Working Medium | pure compressed air | ||||||||||
| Waorking pressure(MPa) | 0.05-0.98 | ||||||||||
| Max pressure(MPa) | 1.5 | ||||||||||
| Working Speed(mm/sec) | 50--700 | ||||||||||
| Working Temperature(°C) | 6--60 or -4--60 or 6--120 | ||||||||||
| EC Series Pneumatic Cylinder Specification | |||||||||||
| Bore Diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | |||||
| Rod Diameter(mm) | 12 | 16 | 20 | 20 | 25 | 25 | |||||
| Pull(N) | 402 | 628 | 981 | 1559 | 2513 | 3927 | |||||
| Thrust(N) | 346 | 528 | 792 | 1369 | 2268 | 3682 | |||||
| Max Stroke Length(mm) | 1000 | 2000 | |||||||||
| Working Medium | pure compressed air | ||||||||||
| waorking pressure(MPa) | 0.05-0.98 | ||||||||||
| Max pressure(MPa) | 1.5 | ||||||||||
| Working Speed(mm/sec) | 50--700 | ||||||||||
| Working Temperature(°C) | 6--60 or -4--60 or 6--120 | ||||||||||
Jinan Huachen Industrial Co.,Ltd established in 1997.Located in Jinan City Shandong Province.
Our factory has nearly 18 years producing history.From 2007,our hydraulic cylinder
has been exported to many countries all over the world.Canada,America,Australia,Bolivia,Thailand,
Korea is our main market.In the past years,our product get a very good feedback from our customer.
We focus on high quality,best after-sale service,win-win cooperation.
