professional Standard Specification 30-3000 Long Stroke Pneumatic Cylinder
- 1000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
Product Details
| Standard or Nonstandard: | Standard | Structure: | Piston Cylinder | Power: | Pneumatic |
| Body Material: | Steel | Maximum Stroke: | 3000mm | Shaft Diameter: | 12-63mm |
| Place of Origin: | Shandong, China | Model Number: | Pneumatic Cylinder | Brand Name: | HCIC |
Product Description

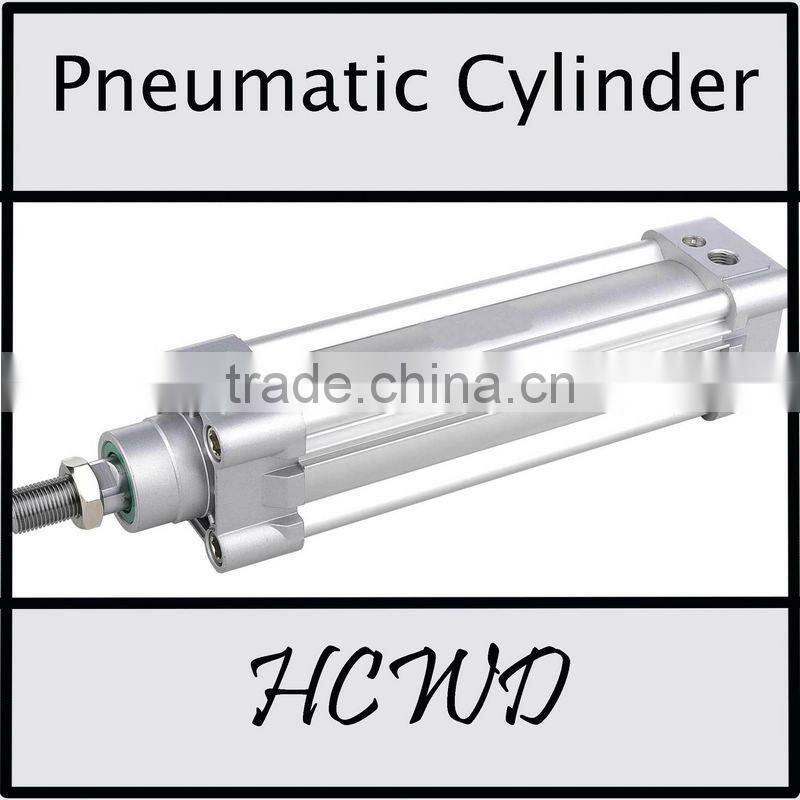

Pneumatic Cylinder
Our pneumatic cylinder mainly contains C series and EC series. It is both self-lubricating and can equip with cushion.
C series pneumatic cylinder complies with general standard and popular in Asian market. It has 4 subfamily:
1. NC series: it is symbolized with 4 tie rod circular alufer cylinder barrel. Barrel diameter: 32-250mm.
2. FC series: it is symbolized with quadrate alufer cylinder barrel. Barrel diameter: 23-100mm.
3. MC series: it is symbolized with rice pattern alufer cylinder barrel. Barrel diameter: 32-200m.

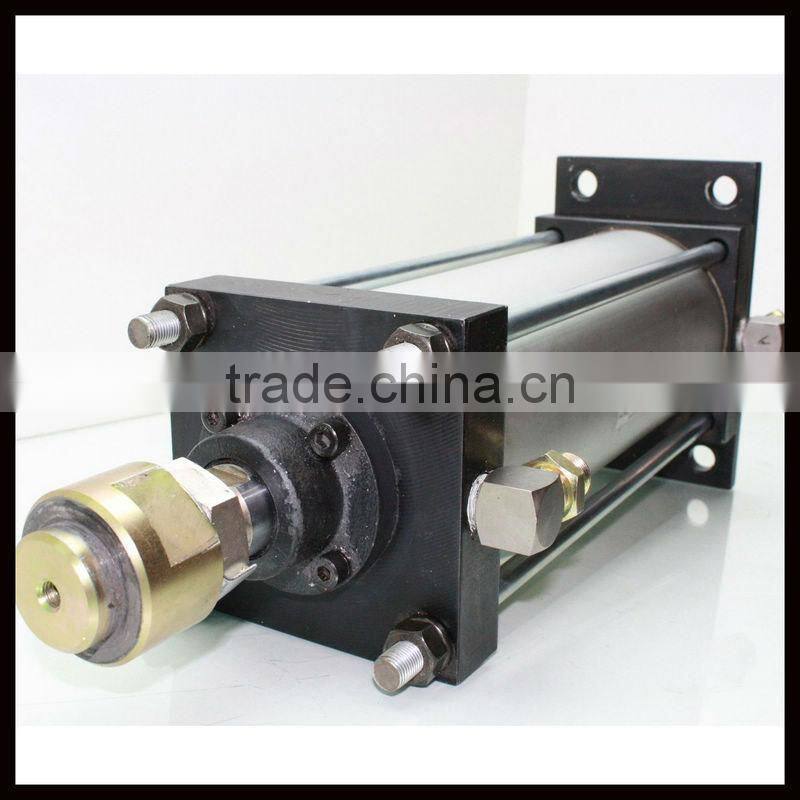

4. ZC series: it is symbolized with 4 tie rod steel structure. Barrel diameter: 32-400mm.
EC series pneumatic cylinder complies with ISO6431(ISO15552) standard and popular in European and North American market. It has 4 subfamily:
1. ENC series: it is symbolized with 4 tie rod circular alufer cylinder barrel. Barrel diameter: 32-100mm.
2. EFC series: it is symbolized with quadrate alufer cylinder barrel. Barrel diameter: 23-100mm.
3. EMC series: it is symbolized with rice pattern alufer cylinder barrel. Barrel diameter: 32-100m.
4. EZC series: it is symbolized with 4 tie rod steel structure. Barrel diameter: 32-320mm.
Difference between C and EC series is Bore diameter and mounting dimension. Afer you tell us the model you are interested in, we will send all specification to you.
Specification:
| C Series Pneumatic Cylinder Specification | |||||||||||
| Bore Diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
| Rod Diameter(mm) | 12 | 16 | 20 | 20 | 25 | 25 | 32 | 40 | 40 | 50 | 63 |
| Thrust at 0.5Mpa (N) | 402 | 628 | 981 | 1559 | 2513 | 3927 | 6136 | 10053 | 15708 | 24544 | 40212 |
| Pull at 0.5Mpa(N) | 346 | 528 | 792 | 1369 | 2268 | 3682 | 5734 | 9425 | 15080 | 23748 | 37699 |
| Max Stroke Length(mm) | 1000 | 2000 | 3000 | ||||||||
| Working Medium | pure compressed air | ||||||||||
| Waorking pressure(MPa) | 0.05-0.98 | ||||||||||
| Max pressure(MPa) | 1.5 | ||||||||||
| Working Speed(mm/sec) | 50--700 | ||||||||||
| Working Temperature(°C) | 6--60 or -4--60 or 6--120 | ||||||||||
| EC Series Pneumatic Cylinder Specification | |||||||||||
| Bore Diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | |||||
| Rod Diameter(mm) | 12 | 16 | 20 | 20 | 25 | 25 | |||||
| Pull(N) | 402 | 628 | 981 | 1559 | 2513 | 3927 | |||||
| Thrust(N) | 346 | 528 | 792 | 1369 | 2268 | 3682 | |||||
| Max Stroke Length(mm) | 1000 | 2000 | |||||||||
| Working Medium | pure compressed air | ||||||||||
| waorking pressure(MPa) | 0.05-0.98 | ||||||||||
| Max pressure(MPa) | 1.5 | ||||||||||
| Working Speed(mm/sec) | 50--700 | ||||||||||
| Working Temperature(°C) | 6--60 or -4--60 or 6--120 | ||||||||||

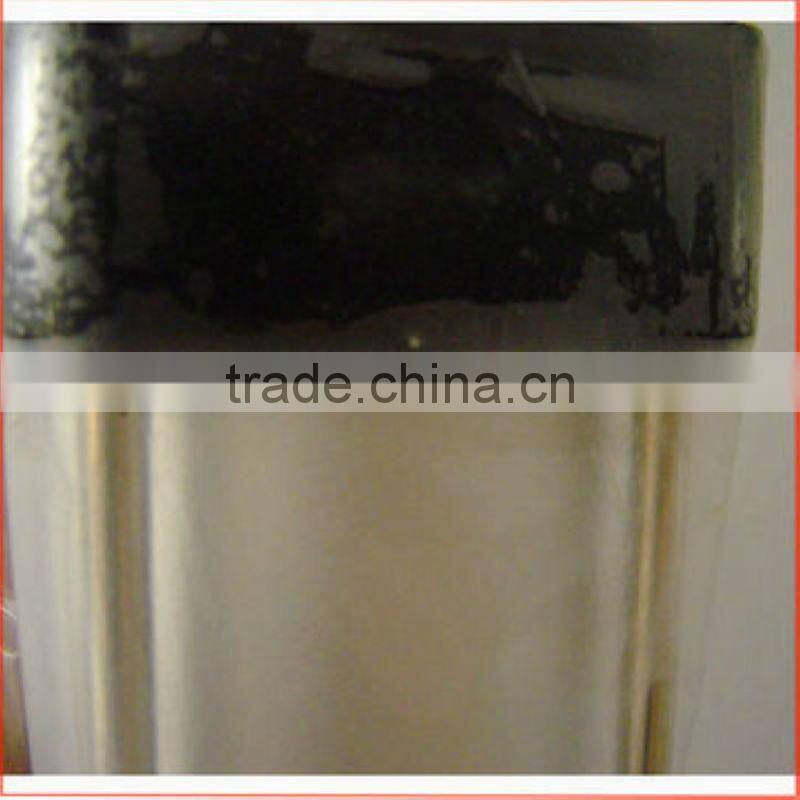

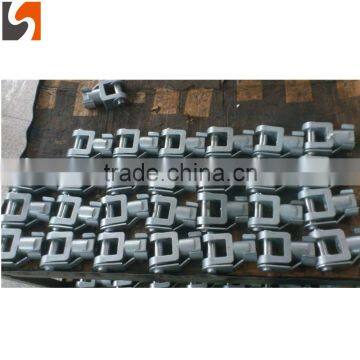

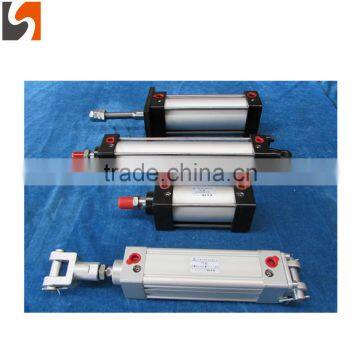

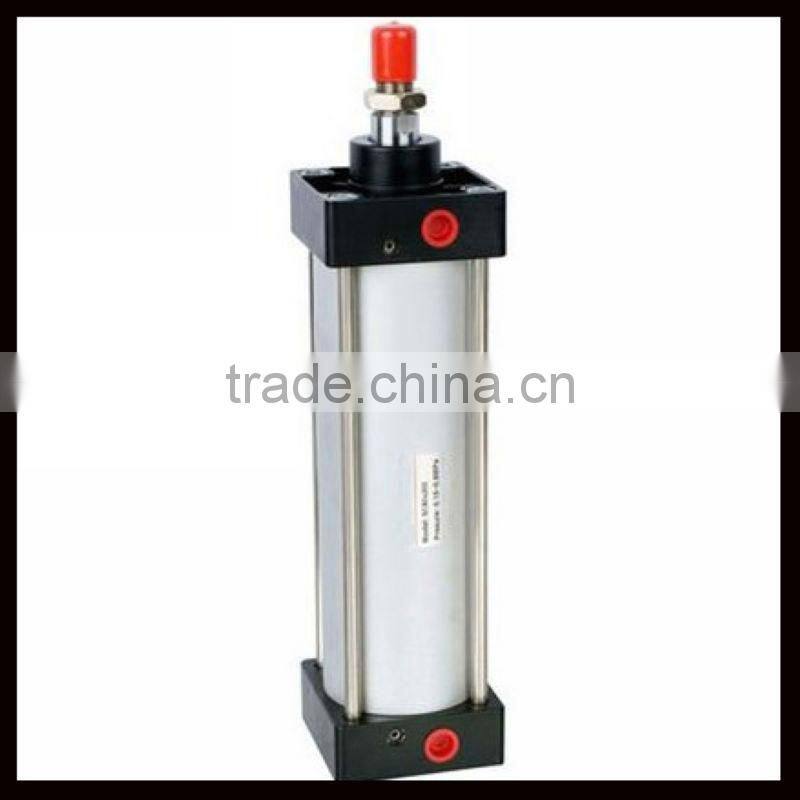

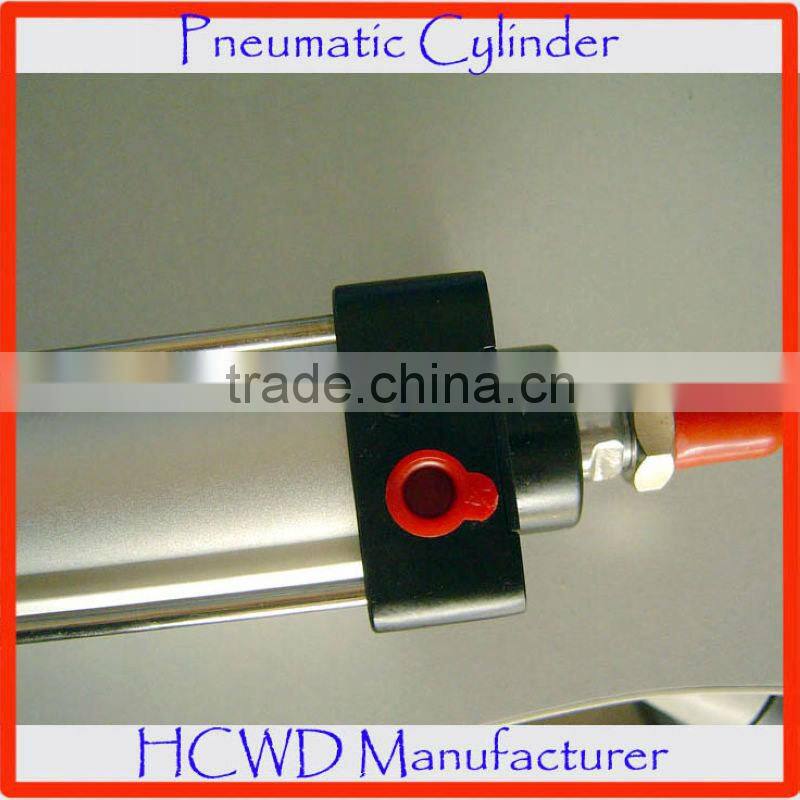

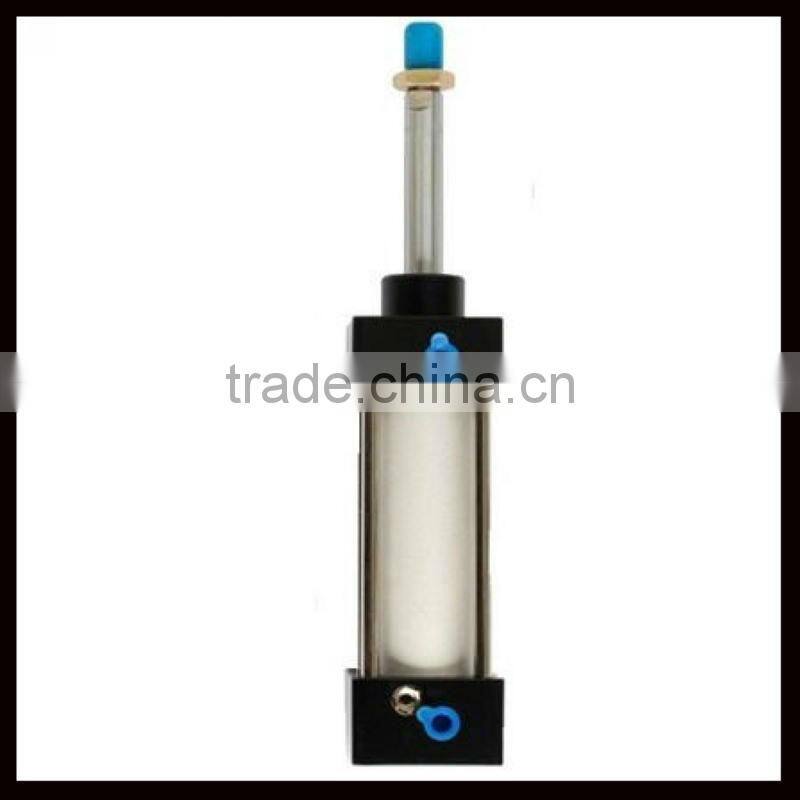

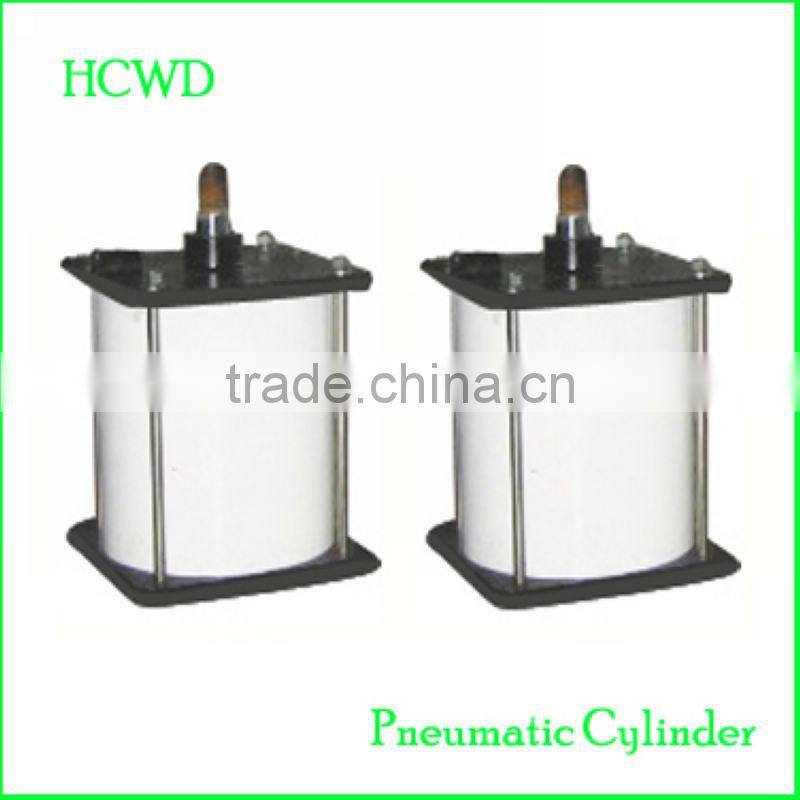

Pictures:
