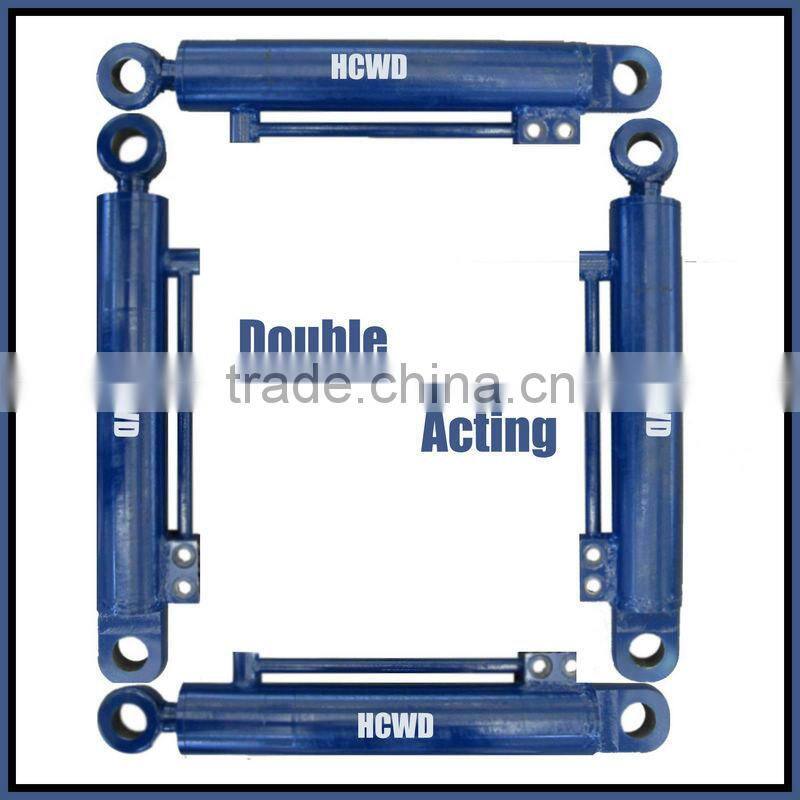

Help CenterCompetitive Small Competitive Price Hydraulic Cylinder for Engineering Machine
Related Products
-
Professional Hydraulic Ram Cylinder for ExcavatorUS$ 1,000 - 5,000MOQ: 1 Piece -
Professional Hydraulic Ram CylindersUS$ 1,000 - 5,000MOQ: 1 Piece
-
Good Price Tie Rod Hydraulic Cylinder/hydraulic Cylinder for Press Made in ChinaUS$ 99 - 3,000MOQ: 2 Pieces
-
Good Price Excavator Hydraulic Cylinder With Good Seals Made in ChinaUS$ 99 - 3,000MOQ: 4 Pieces
-
Double Action Hydraulic Cylinder for SaleUS$ 200 - 1,000MOQ: 5 Pieces
Small Hydraulic Cylinder
We work hard and try our best to provide our customers reliable quality and competitive price, with fast response to all end users and distributors, to make sure our customers go ahead in every competitive market, now GXHN has become the pioneer of excellent Hydraulic Cylinders and Pneumatic Cylinders in China.
Our raw material is high quality steel, seamless honed tubes. They are produced with BKS & SRB conditions, and we process them with CNC lathe. The sleeve of cylinder is very smooth, the surface finish can be 0.02μm and the seal kits are Parker imported from USA. So the working life is long and the using frequency can be high.
Before paint, we will process the cylinder tubes with ball blast, so that the painting can be absorbed tightly. Then we will paint the cylinder with one lick of anti-rust paint and two lick of finish paint. Every lick of our paint is thick, so that can protect the cylinder well.
For the package, we will use corrugated paper for each cylinder and use plastic film for several cylinders. At last, use steel case to package them.
Specification:
Model |
Working Pressure (Mpa) |
Piston Rod Diameter (mm) |
Cylinder Inner Diameter (mm) |
Cylinder Outer Diameter (mm) |
Mounting Distance (mm) |
Stroke (mm) |
DG-J40C- E1- Y3 |
16 Mpa |
22 |
40 |
50 |
226 |
150 |
DG-J50C- E1- Y3 |
28 |
50 |
60 |
276 |
190 |
|
DG-J63C- E1- Y3 |
35 |
63 |
73 |
317 |
220 |
|
DG-J80C- E1- Y3 |
45 |
80 |
95 |
359 |
250 |
|
DG-J90C- E1- Y3 |
50 |
90 |
104 |
396 |
290 |
|
DG-J100C- E1- Y3 |
55 |
100 |
115 |
427 |
310 |
|
DG-J110C- E1- Y3 |
63 |
110 |
127 |
462 |
345 |
|
DG-J125C- E1- Y3 |
70 |
125 |
140 |
496 |
380 |
|
DG-J140C- E1- Y3 |
80 |
140 |
159 |
522 |
405 |
|
DG-J150C- E1- Y3 |
85 |
150 |
168 |
566 |
450 |
|
DG-J160C- E1- Y3 |
90 |
160 |
184 |
603 |
485 |
|
DG-J180C- E1- Y3 |
100 |
180 |
208 |
687 |
570 |
|
DG-J200C- E1- Y3 |
110 |
200 |
232 |
777 |
660 |

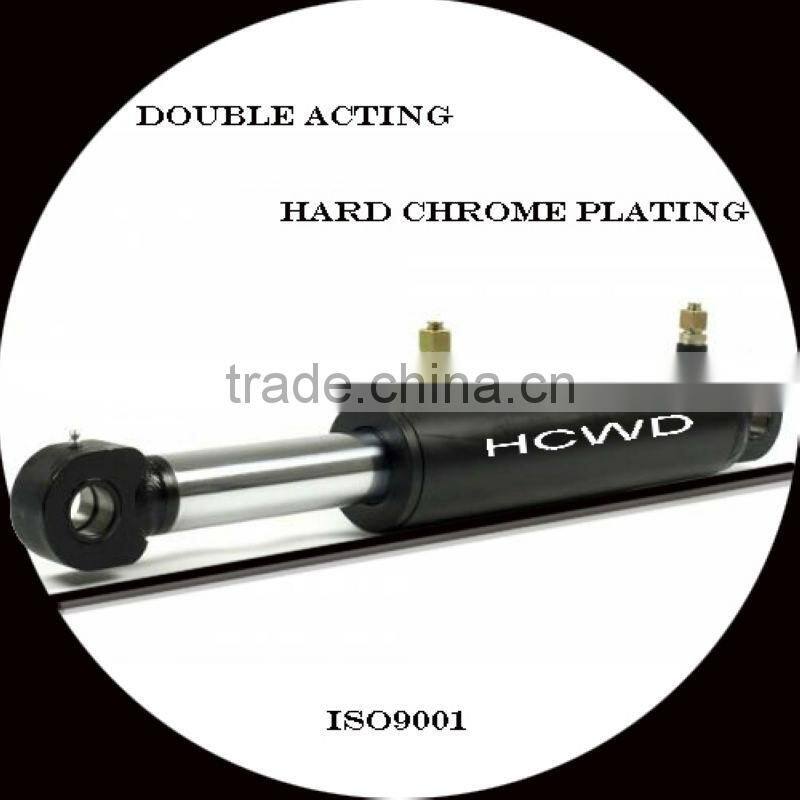

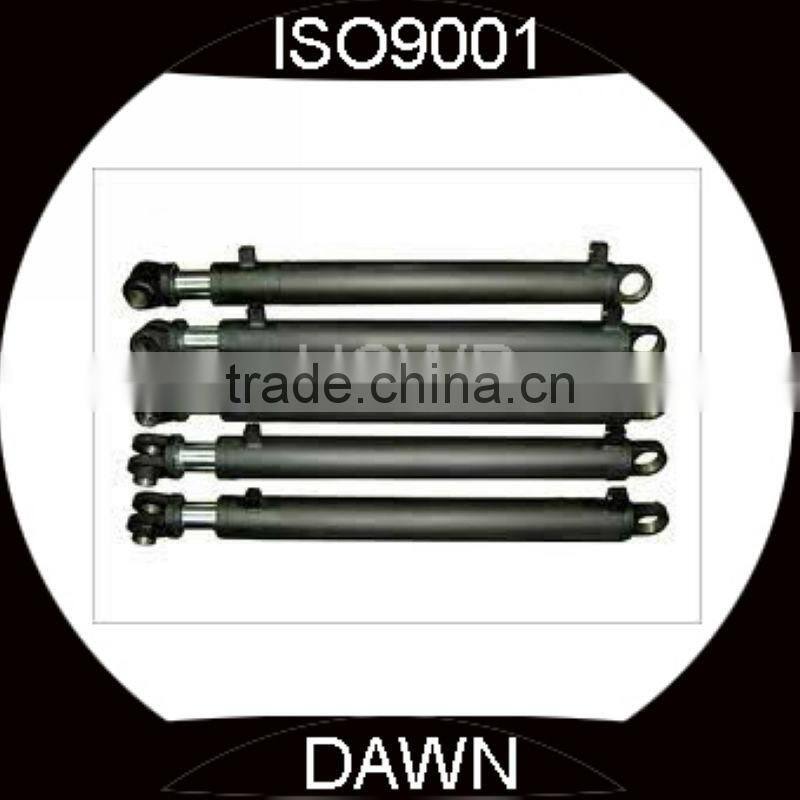

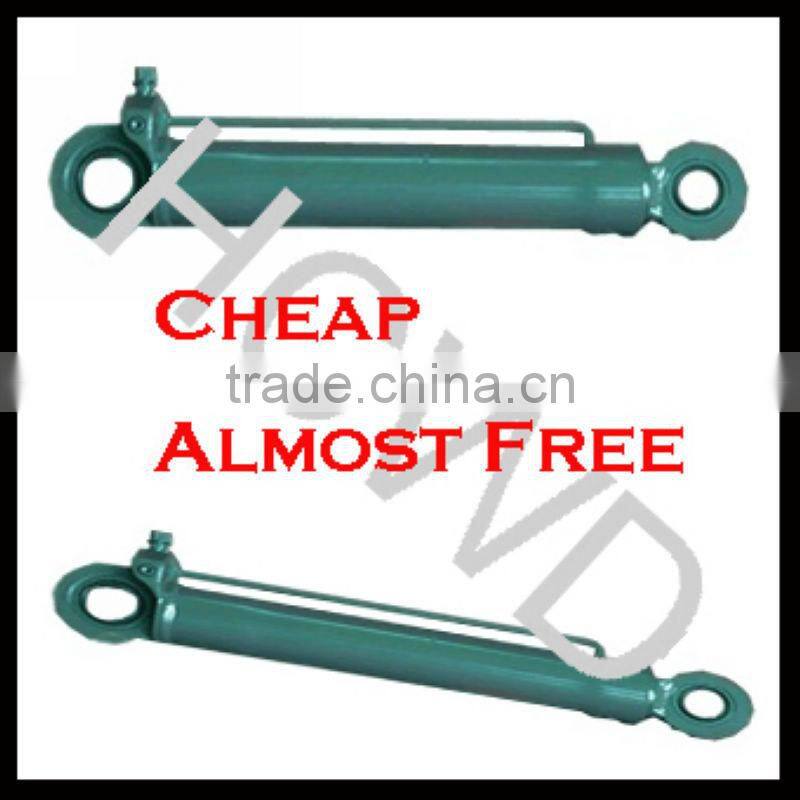

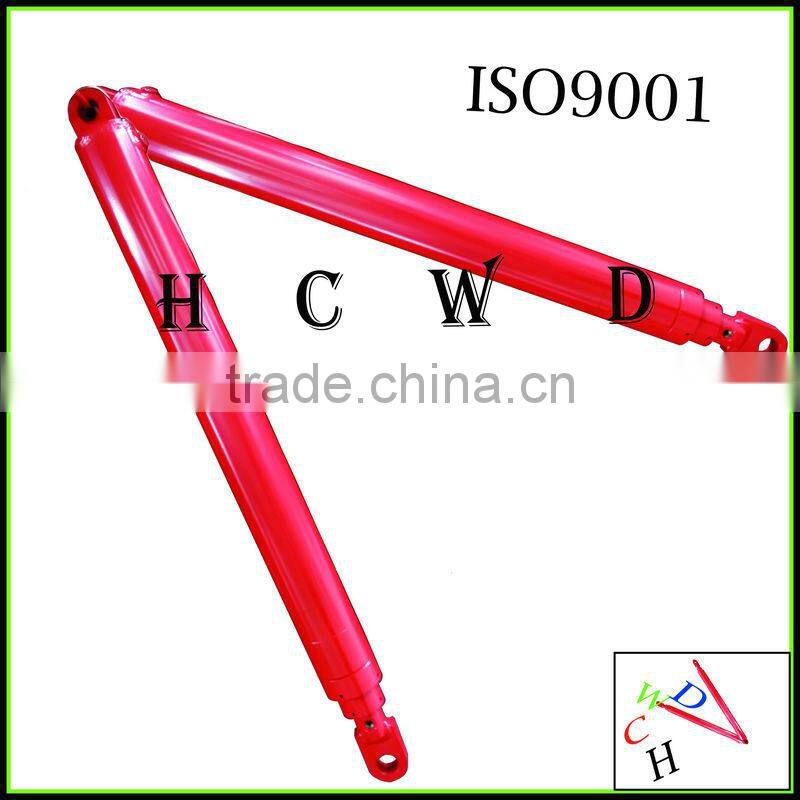

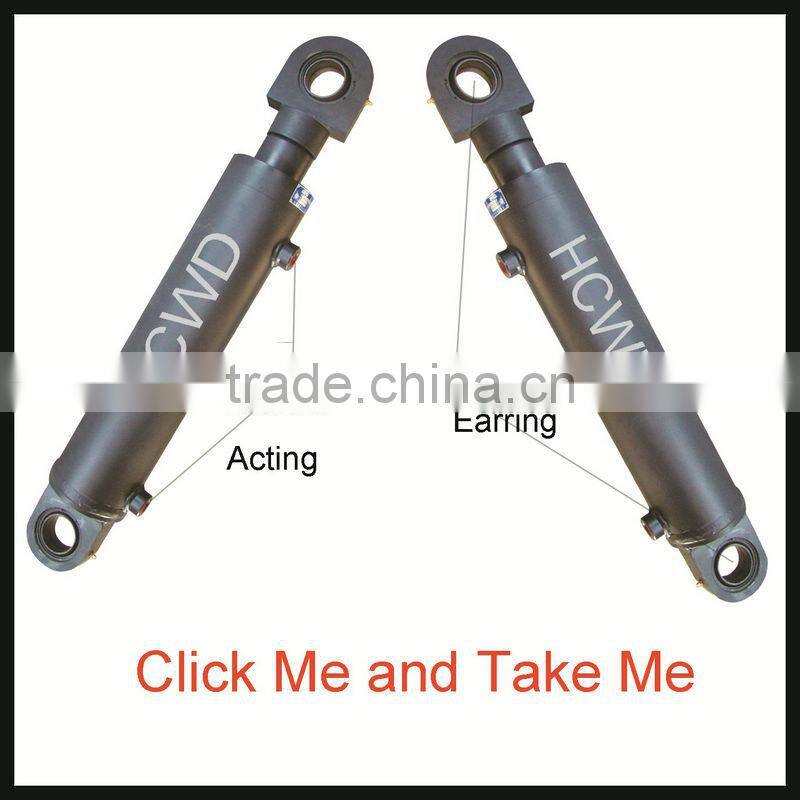

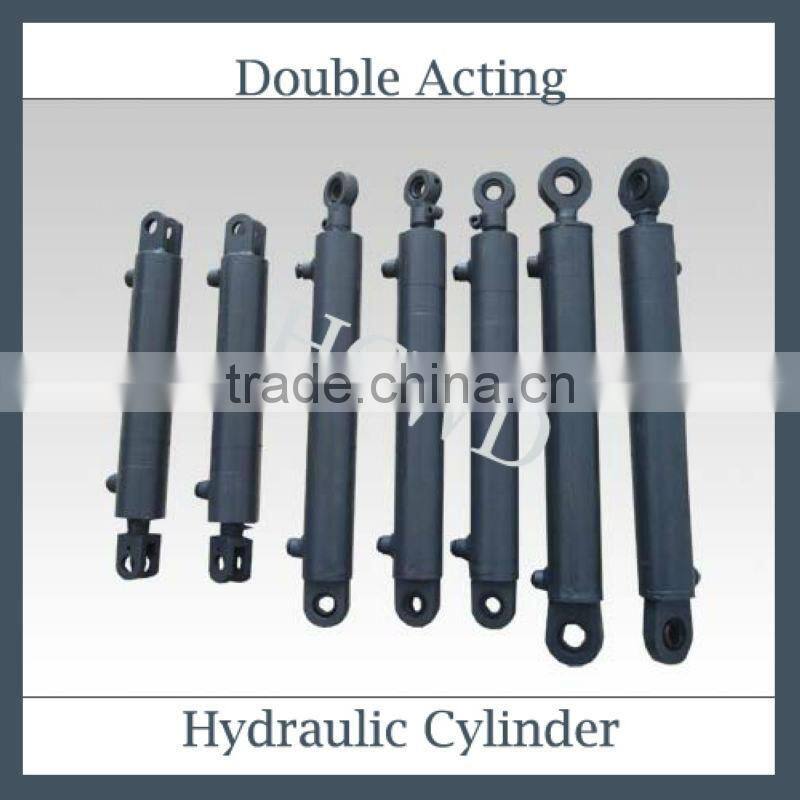

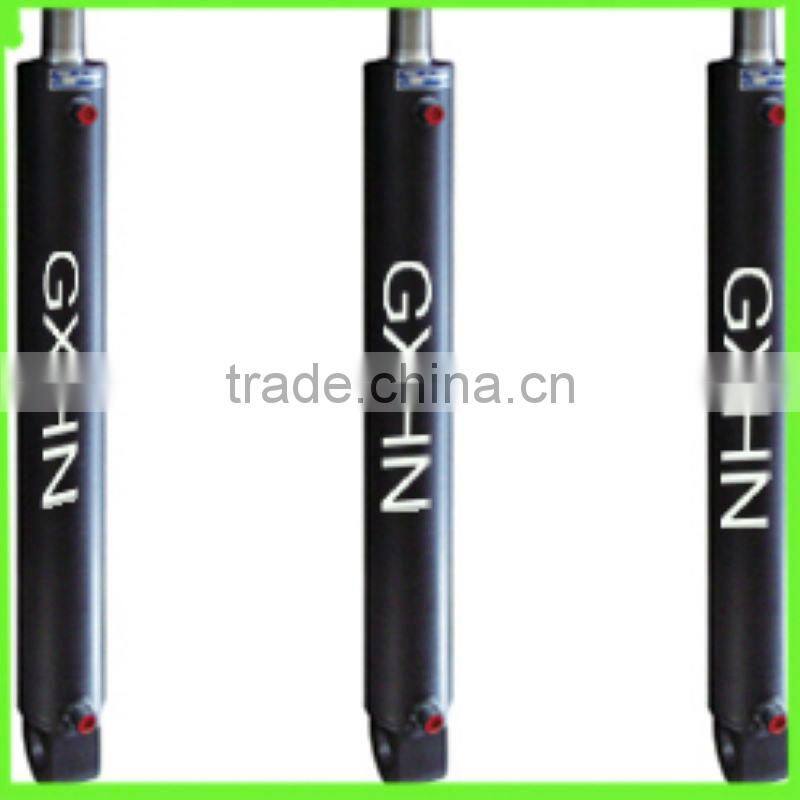

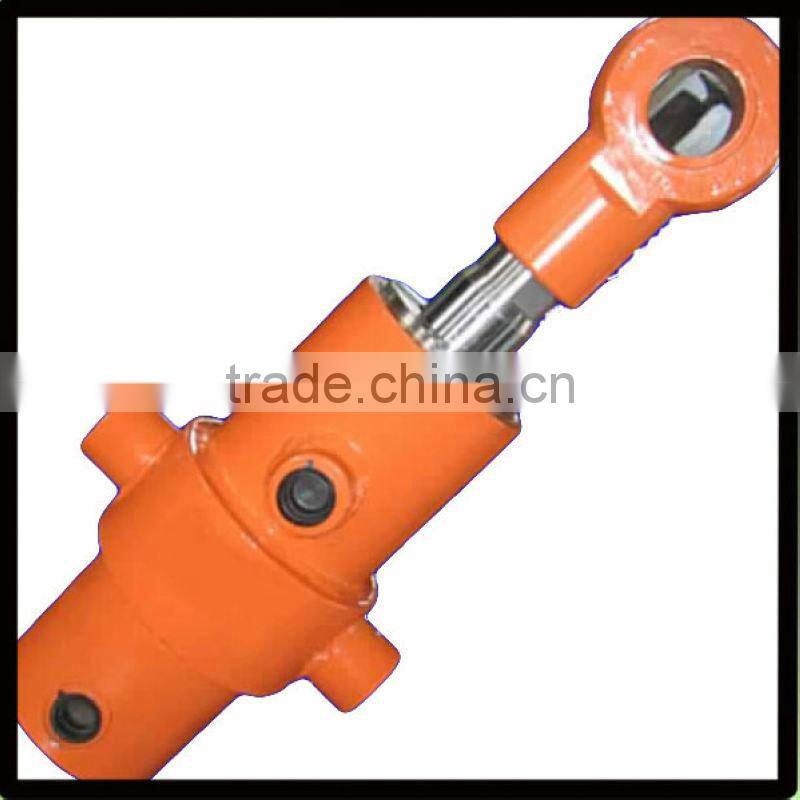

Pictures:
