DATG series Dump-Truck Telescopic cylinders are mainly used in Trucks and Trailers.for lifting different tonnages of truck body.
1.short mounting distance,long stroke.easy to install
2.adopt new technology,special material,unique key inside structure
3.long service life
4.according to different lengths of truck body,we supply the equivalent series products
5.make complete dump-truck hydraulic system(including valves,gear pump,oil tanks,oil tube,brackets and other fittings)
6.Dump-Truck Telescopic cylinder fittings
Verious Model For Agriculture, Industry, Construction, Machinery and Life etc
Various Connecting Type For Any Purpose.
Design and Manufacture According to Your Requirement.
| Model | Extended Stages | Working Pressure | Max.Rod Diameter | Max.stroke | Lifting Capacity |
| FC129-3E-3880 | 3 | 16-19 MPa | 129mm | 3880mm | 20-35 ton |
| FC149-3E-3880 | 3 | 16-19 MPa | 149mm | 3880mm | 25-45 ton |
| FC149-3E-4280 | 3 | 16-19 MPa | 149mm | 4280mm | 25-45 ton |
| FC149-4E-3880 | 4 | 16-19 MPa | 149mm | 3880mm | 25-40 ton |
| FC149-4E-4280 | 4 | 16-19 MPa | 149mm | 4280mm | 25-40 ton |
| FC169-4E-4280 | 4 | 16-19 MPa | 169mm | 4280mm | 30-50 ton |
| FC169-4E-4640 | 4 | 16-19 MPa | 169mm | 4640mm | 32-55 ton |
| FC169-4E-5000 | 4 | 16-19 MPa | 169mm | 5000mm | 32-60 ton |
| FC169-4E-5180 | 4 | 16-19 MPa | 169mm | 5180mm | 32-60 ton |
| FC169-4E-5390 | 4 | 16-19 MPa | 169mm | 5390mm | 32-60 ton |
| FC169-4E-5460 | 4 | 16-19 MPa | 169mm | 5460mm | 32-60 ton |
| FC185-4E-4280 | 4 | 16-19 MPa | 185mm | 4280mm | 25-45 ton |
| FC185-4E-4640 | 4 | 16-19 MPa | 185mm | 4640mm | 30-45 ton |
| FC185-4E-5000 | 4 | 16-19 MPa | 185mm | 5000mm | 32-50 ton |
| FC185-4E-5390 | 4 | 16-19 MPa | 185mm | 5390mm | 40-60 ton |
| FC185-4E-5460 | 4 | 16-19 MPa | 185mm | 5460mm | 40-65 ton |
| FC185-4E-5780 | 4 | 16-19 MPa | 185mm | 5780mm | 45-70 ton |
| FC185-4E-6000 | 4 | 16-19 MPa | 185mm | 6000mm | 50-80 ton |
| FC191-5E-5780 | 5 | 16-19 MPa | 191mm | 5780mm | 40-70 ton |
| FC191-5E-6200 | 5 | 16-19 MPa | 191mm | 6200mm | 45-80 ton |
| FC191-5E-7130 | 5 | 16-19 MPa | 191mm | 7130mm | 50-85 ton |
| FC191-5E-9030 | 5 | 16-19 MPa | 191mm | 9030mm | 55-90 ton |
| FC220-5E-7130 | 5 | 16-19 MPa | 220mm | 7130mm | 65-100 ton |
| FC220-5E-9030 | 5 | 16-19 MPa | 220mm | 9030mm | 65-100 ton |
Jinan Gaoxin Huaneng Pneumatic & Hydraulic Co., Ltd (GXHN), established in 1997, is the symbol and best manufacturer in Hydraulic and Pneumatic
components field in Shandong Province of China. We company, Jinan Huachenweida Trade Co., Ltd, as the exporting branch office of GXHN, Mainly
take charge of promoting our products to all over the world. Now The sales of exporting reaches 10 million one year.

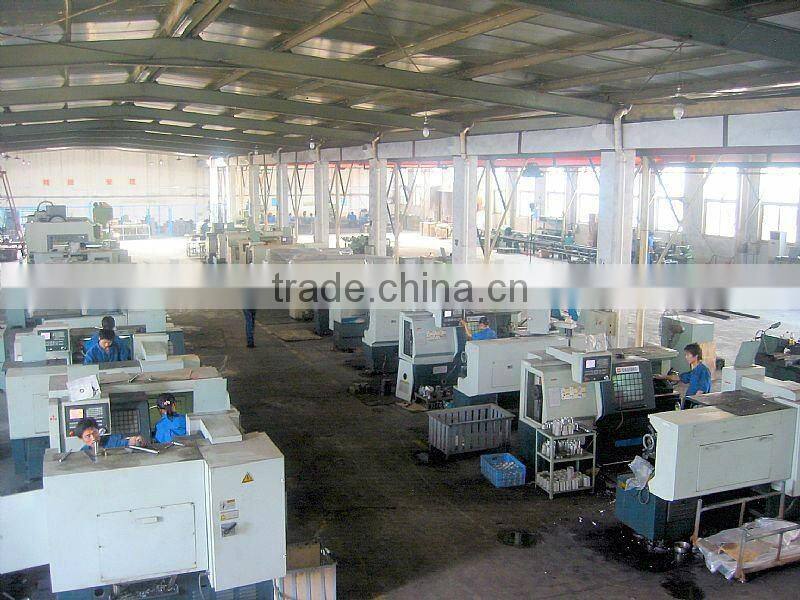

Our company scale as follows:
19 years production history
4 manufacturing base
150 sets Normal Lathe
10 sets grinder machine
10 sets buffing machine
50 sets drilling machine

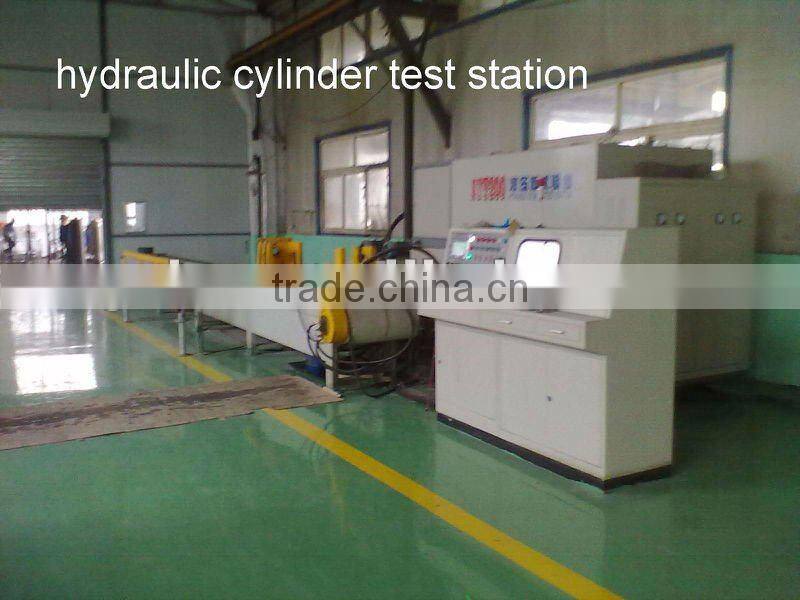

20 sets testing machine
5 sets bending machine equipments of Telescopic Cylinders
300 staff , 30 Technical engineers, 30 professional Sales engineers
