standard 5 Stages telescopic cylinder
- 1000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Series Cylinder | Power: | Hydraulic |
Body Material: | Steel | Maximum Stroke: | 2000-9030mm | Shaft Diameter: | 110-220mm |
Place of Origin: | Shandong, China | Model Number: | Hydraulic Cylinder For Truck | Brand Name: | HCIC |
Product Description
Hydraulic Cylinder For Truck Factory, You Are Welcome To Visit Us at Any Time.

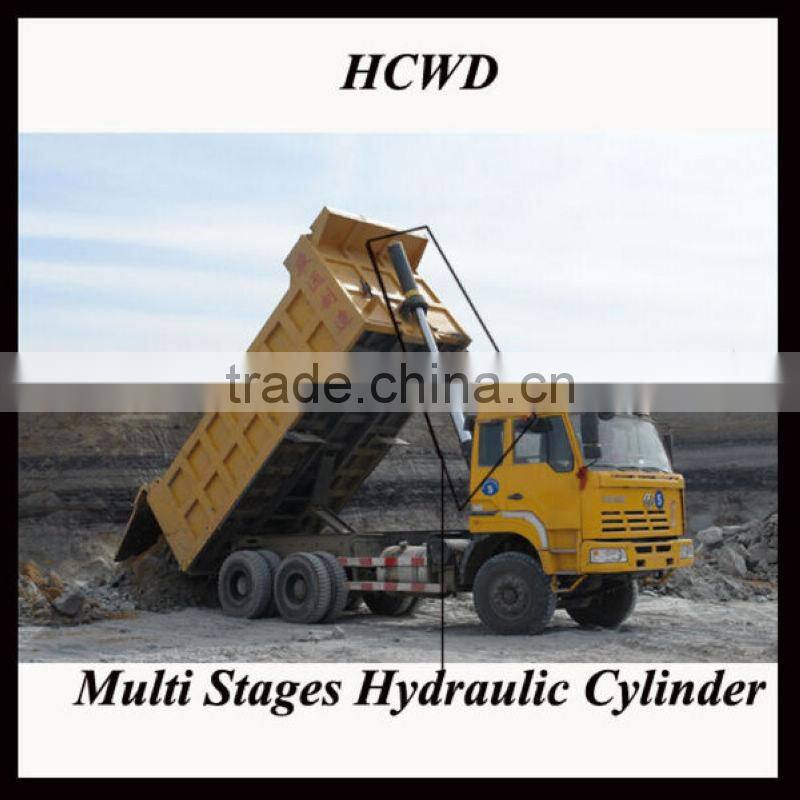

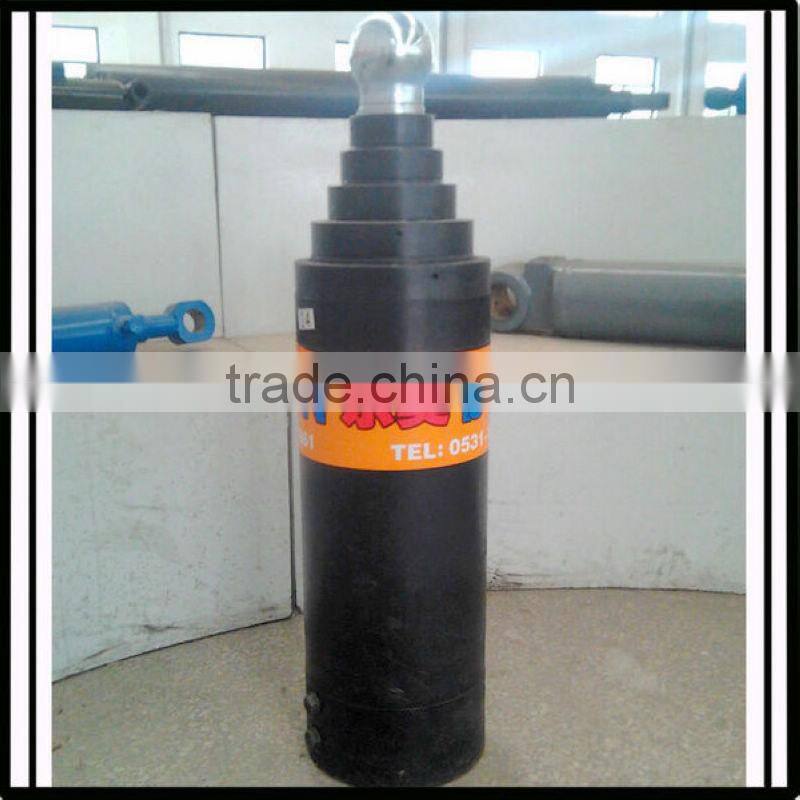

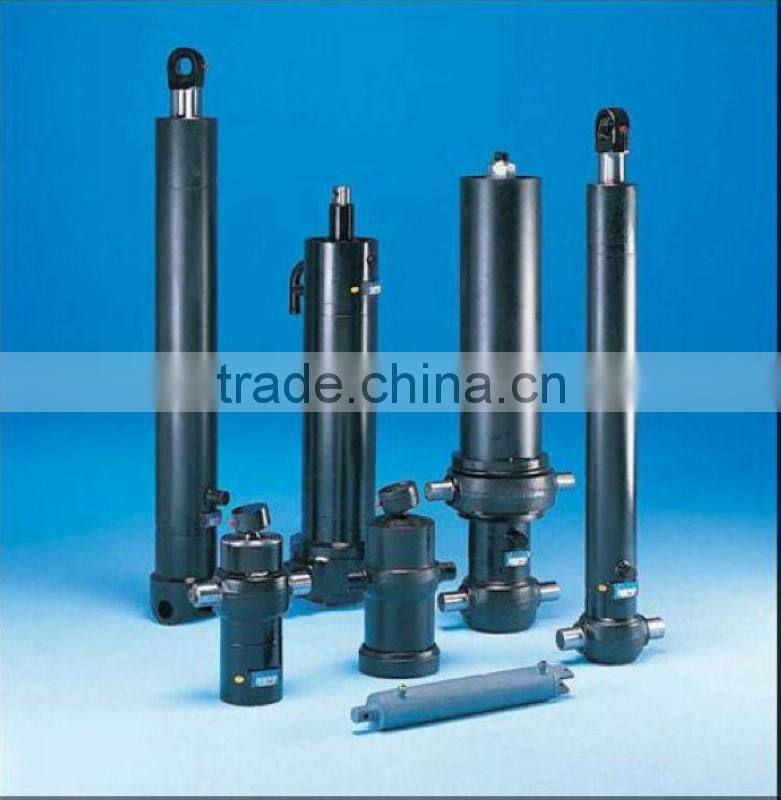

This is a kind of telescopic hydraulic cylinder which is used for dump truck, there are 3,4,5 stages for you to choose, we can also produce according to your drawing...
As our main series products, our telescopic hydraulic cylinder is widely used all over the world, we import famous seals PARKER from USA, and there is special seals for our company for PARKER company, so this extend the life of cylinders. Besides, the sleeve of cylinder is very smooth, the surface finish can be 0.02μm. From this point, the using frequency becomes long and long;
Characteristic:
High Speed: Working speed is high, cycle time is short, working capacity is more.
High Efficiency: Light weight, more loading capacity.
High Strength: New design, new material.
Characteristic:
- Dimension is same to Hyva type.
- Cylinder tube material is high quality 27SiMn steel.
- Cylinder tube is seamless honed tube, hard chrome plating.
- Earring material is 45# steel.
- Coat for FC type material is 20# steel.
- Seal kits are Hallite from UK.
- Tolerance of all cylinder tubes: H9/F8
- Paint is anti-corrosive primer+finish;
- Warranty is 12 months.

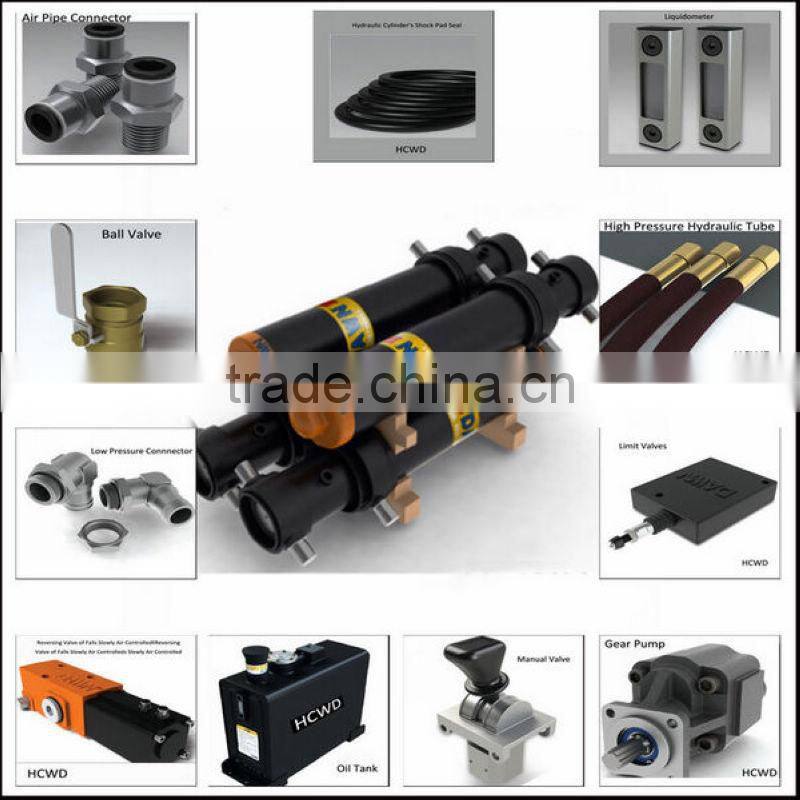

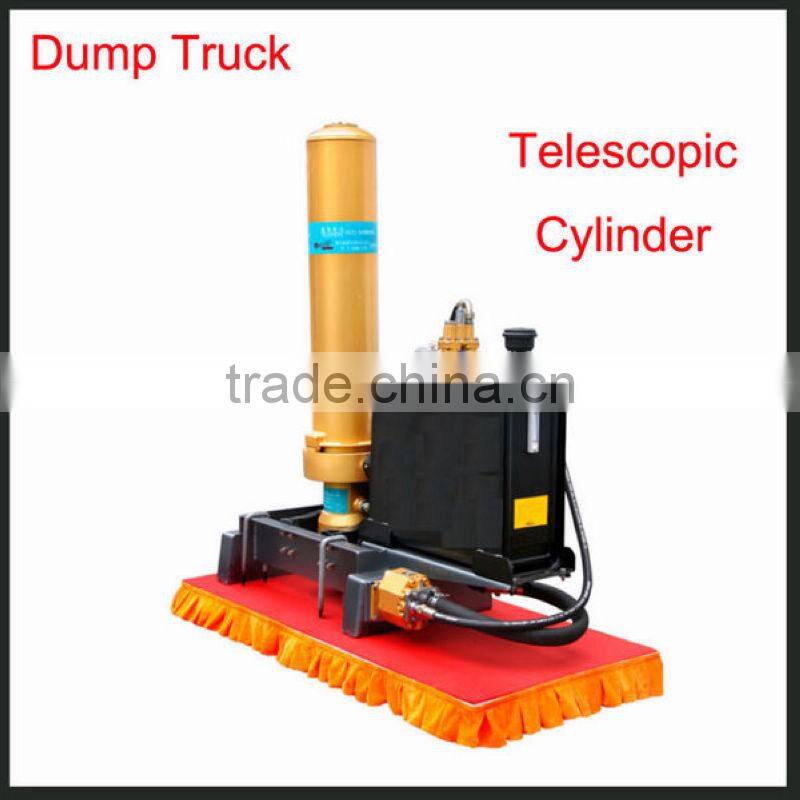

- We can also supply whole hydraulic system for dump truck.
Specification of Standard Products:
Specification of Standard Products for Dump Truck | ||||||
Model | Extended Stages | Working Pressure | Max.Stage Diameter | Max.stroke | Lifting Capacity | Suitable Length of Truck Body |
129-3E-3880 | 3 | 16-19 MPa | 129mm | 3880mm | 20-35 ton | 5.2m |
149-3E-3880 | 3 | 16-19 MPa | 149mm | 3880mm | 25-45 ton | 5.2m |
149-3E-4280 | 3 | 16-19 MPa | 149mm | 4280mm | 25-45 ton | 5.6m |
149-4E-3880 | 4 | 16-19 MPa | 149mm | 3880mm | 25-40 ton | 5.2m |
149-4E-4280 | 4 | 16-19 MPa | 149mm | 4280mm | 25-40 ton | 5.6m |
169-4E-4280 | 4 | 16-19 MPa | 169mm | 4280mm | 30-50 ton | 5.2-5.6m |
169-4E-4640 | 4 | 16-19 MPa | 169mm | 4640mm | 32-55 ton | 5.6-6.1m |
169-4E-5000 | 4 | 16-19 MPa | 169mm | 5000mm | 32-60 ton | 6.2-6.8m |
169-4E-5180 | 4 | 16-19 MPa | 169mm | 5180mm | 32-60 ton | 6.2-6.9m |
169-4E-5390 | 4 | 16-19 MPa | 169mm | 5390mm | 32-60 ton | 6.2-6.9 |
169-4E-5460 | 4 | 16-19 MPa | 169mm | 5460mm | 32-60 ton | 6.5-7.3 |
185-4E-4280 | 4 | 16-19 MPa | 185mm | 4280mm | 25-45 ton | 5.6m |
185-4E-4640 | 4 | 16-19 MPa | 185mm | 4640mm | 30-45 ton | 5.6-6.1m |
185-4E-5000 | 4 | 16-19 MPa | 185mm | 5000mm | 32-50 ton | 6.2-6.5m |
185-4E-5390 | 4 | 16-19 MPa | 185mm | 5390mm | 40-60 ton | 6.2-6.8m |
185-4E-5460 | 4 | 16-19 MPa | 185mm | 5460mm | 40-65 ton | 6.5-7.3m |
185-4E-5780 | 4 | 16-19 MPa | 185mm | 5780mm | 45-70 ton | 6.9-7.7m |
185-4E-6000 | 4 | 16-19 MPa | 185mm | 6000mm | 50-80 ton | 7.3-8.2m |
191-5E-5780 | 5 | 16-19 MPa | 191mm | 5780mm | 40-70 ton | 6.9-7.7m |
191-5E-6200 | 5 | 16-19 MPa | 191mm | 6200mm | 45-80 ton | 7.3-8.2m |
191-5E-7130 | 5 | 16-19 MPa | 191mm | 7130mm | 50-85 ton | 7.8-8.5m |
191-5E-9030 | 5 | 16-19 MPa | 191mm | 9030mm | 55-90 ton | 10-11m |
220-5E-7130 | 5 | 16-19 MPa | 220mm | 7130mm | 65-100 ton | 7.8-8.5m |
220-5E-9030 | 5 | 16-19 MPa | 220mm | 9030mm | 65-100 ton | 10-11m |
You are also welcome to tell us your requirement, we will design accordingly |
Pictures:
Company Profiles:
Jinan Gaoxin Huaneng Pneumatic & Hydraulic Co., Ltd (GXHN), established in 1997, is the symbol and best manufacturer in Hydraulic and Pneumatic components field in Shandong Province of China. We company, Jinan Huachenweida Trade Co., Ltd, as the exporting branch office of GXHN, Mainly take charge of promoting our products to all over the world. Now The sales of exporting reaches 10 million one year.
Our company scale as follows:
15 years production history
4 manufacturing base
150 sets Normal Lathe
10 sets grinder machine
10 sets buffing machine
50 sets drilling machine
20 sets testing machine
5 sets bending machine equipments of Telescopic Cylinders
1000 staff
30 Technical engineers
30 professional Sales engineers
Manufacture &Design Capacity:
GXHN Standard Series Hydraulic Cylinder:
1. Stroke Length:Up to 9030mm
2. Rod Diamster: Up to 400mm
3. Load capacity: Up to 300 ton
4. Extended Stages: 1/2/3/4/5/6/7
5. Working pressure:C--6.3MPa; E--16MPa; G--25MPa; H--32MPa
6. Material: 1020 Steel , 1045 steel , AISI4140 , Q235 Steel ,St 52
7. Working temperature from -50°c to +200°C
8. High strengtgh seamless steel tube.
9. One year quality guarantee
10.Dual low resistance dust proof design
