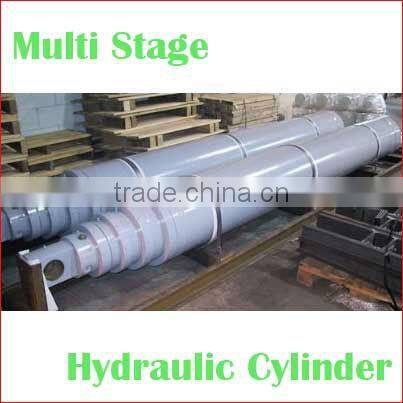

Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Professional Telescopic Hydraulic Cylinder Hyva Type
US$ 100 - 10,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Piston Rod Multi Stages Hydraulic CylinderUS$ 521 - 6,000MOQ: 5 Pieces -
5 Stage Telescopic Hydraulic Cylinder Tipping System for Dump TruckUS$ 521 - 1,500MOQ: 1 Piece
-
Newsland Market Used Tipper/Dumper Used Hydraulic CylinderUS$ 148 - 188MOQ: 1 Set
-
Canada Market Used Tipper/Dumper Used Hydraulic CylinderUS$ 148 - 188MOQ: 1 Set
-
Dump Truck Hydraulic Cylinder for SaleUS$ 408 - 1,385MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Piston Cylinder
Power
Hydraulic
Body Material
Steel
Maximum Stroke
9030mm
Shaft Diameter
220mm
Place of Origin
Shandong, China
Model Number
Telescopic Hydraulic Cylinder
Brand Name
HCIC

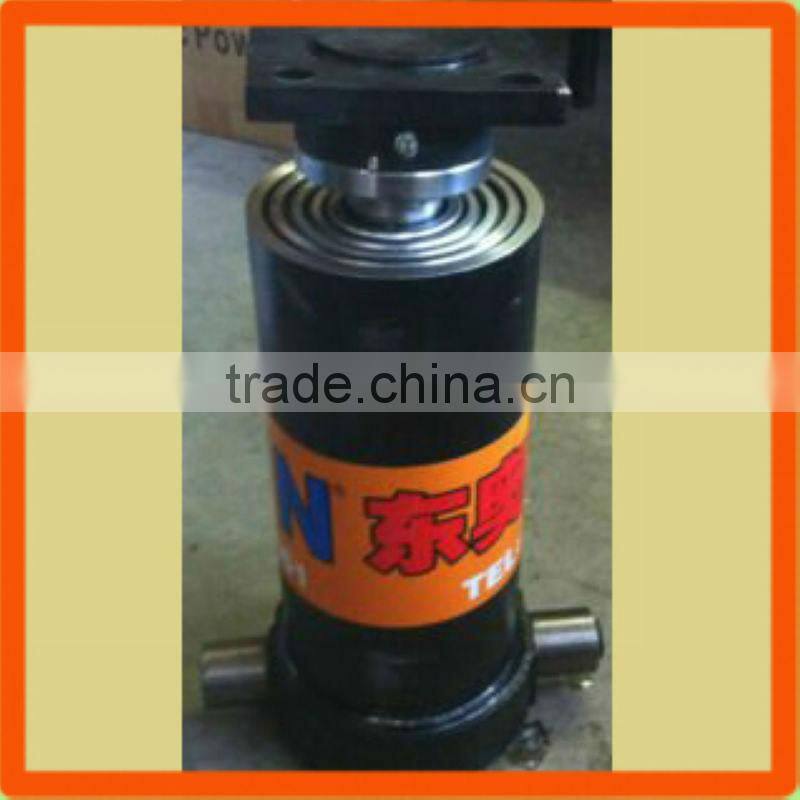

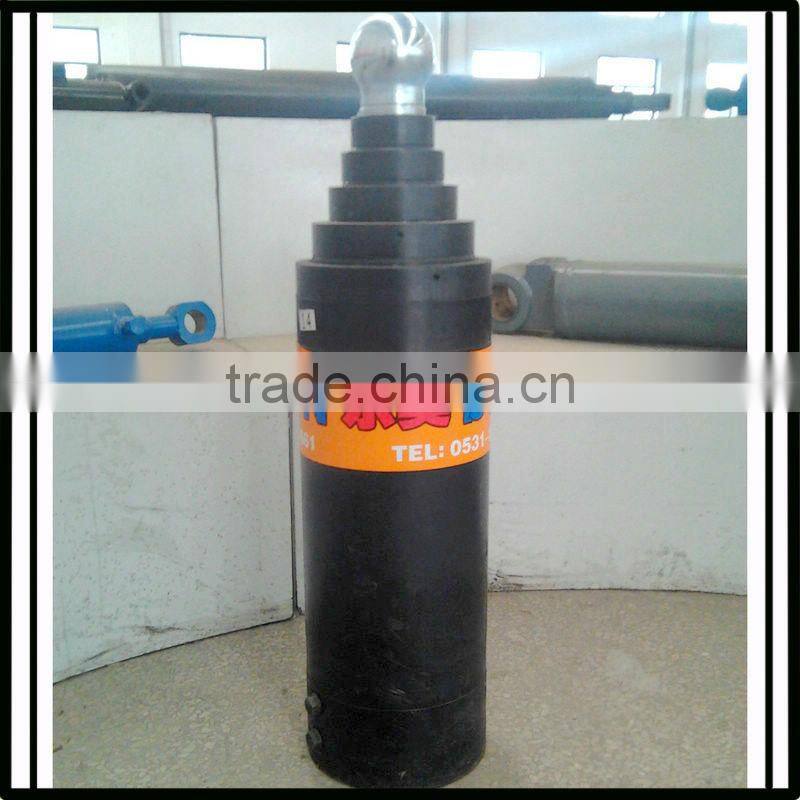

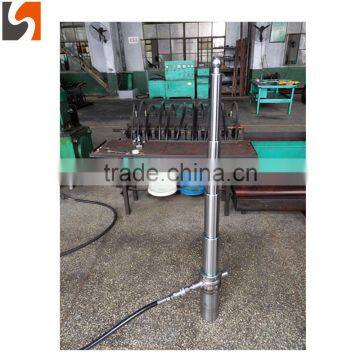

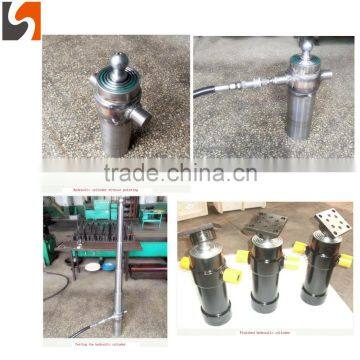

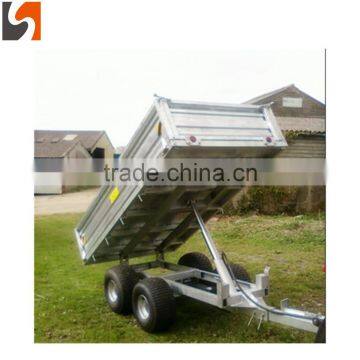

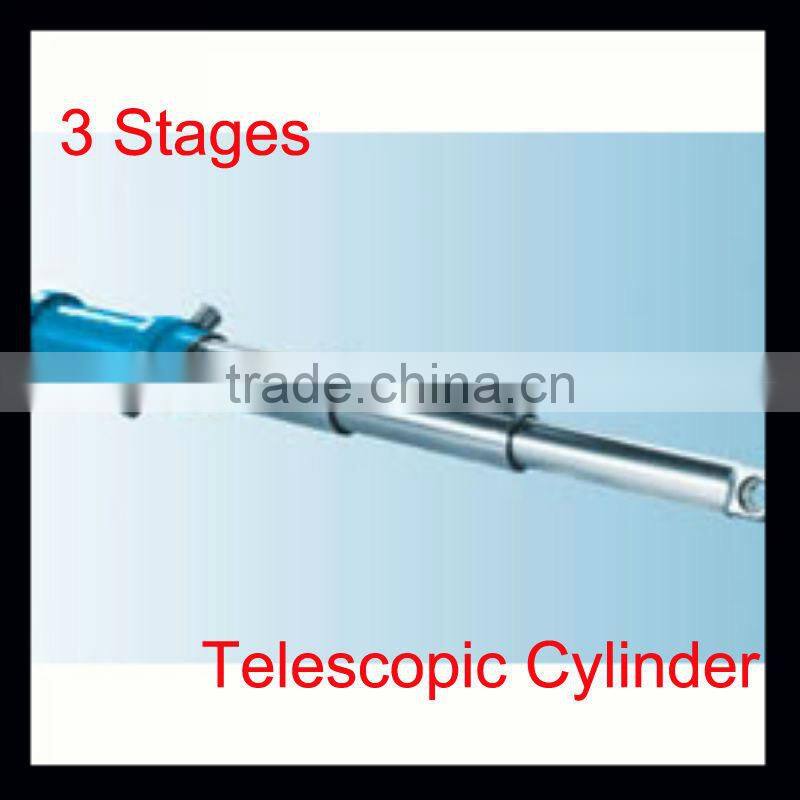

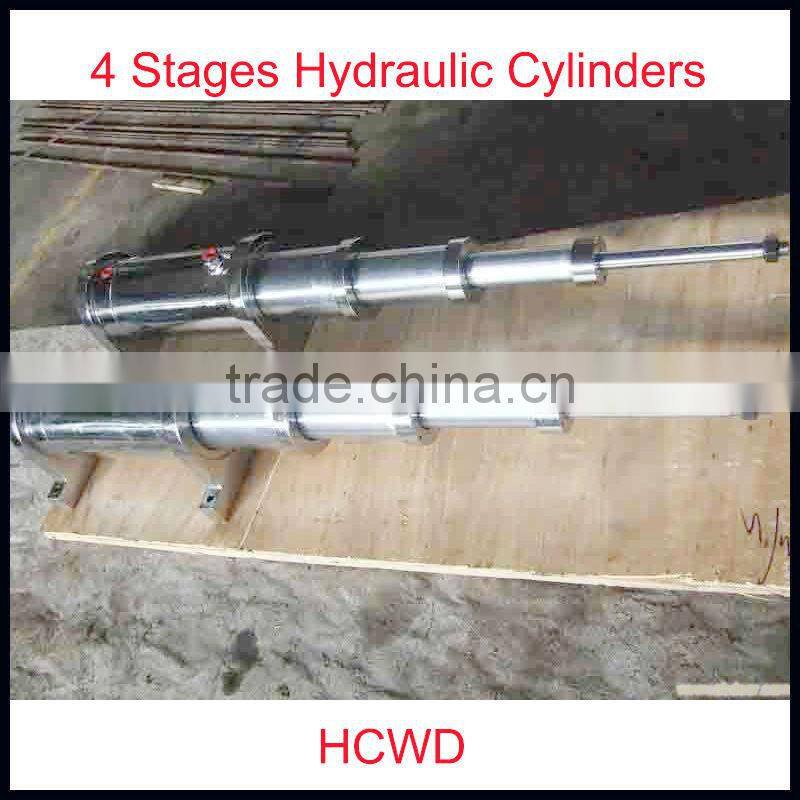

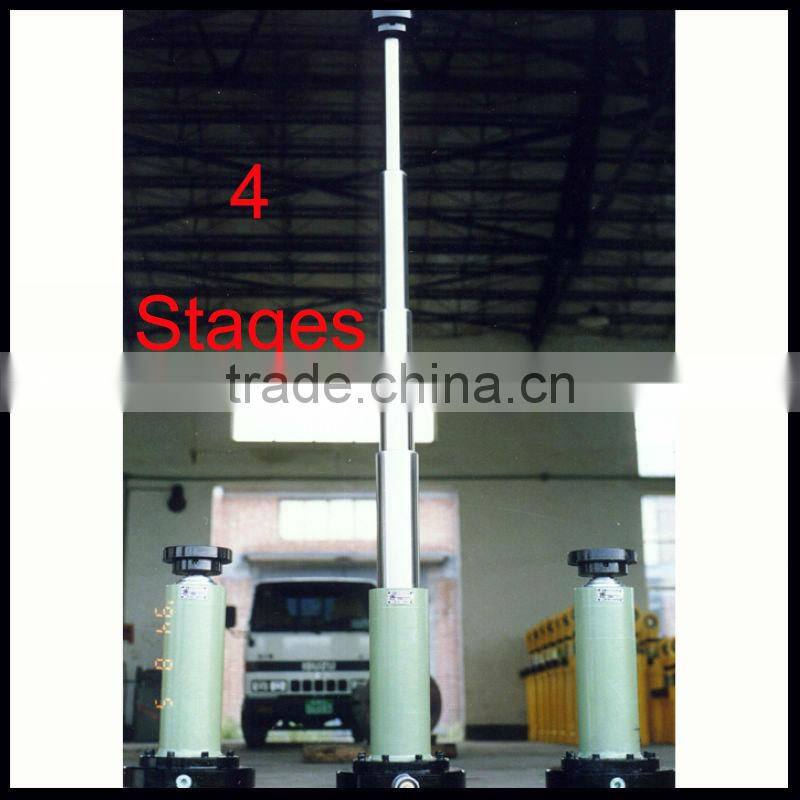

This is a kind of telescopic hydraulic cylinder which is used for dump truck, there are 3,4,5 stages for you to choose, we can also produce according to your drawing...
As our main series products, our telescopic hydraulic cylinder is widely used all over the world, we import famous seals PARKER from USA, and there is special seals for our company for PARKER company, so this extend the life of cylinders. Besides, the sleeve of cylinder is very smooth, the surface finish can be 0.02μm. From this point, the using frequency becomes long and long;
| Specification of Standard Products for Dump Truck | |||||
| Model | Extended Stages | Working Pressure | Max.Stage Diameter | Max.stroke | Lifting Capacity |
| FC129-3E-3880 | 3 | 16-19 MPa | 129mm | 3880mm | 20-35 ton |
| FC149-3E-3880 | 3 | 16-19 MPa | 149mm | 3880mm | 25-45 ton |
| FC149-3E-4280 | 3 | 16-19 MPa | 149mm | 4280mm | 25-45 ton |
| FC149-4E-3880 | 4 | 16-19 MPa | 149mm | 3880mm | 25-40 ton |
| FC149-4E-4280 | 4 | 16-19 MPa | 149mm | 4280mm | 25-40 ton |
| FC169-4E-4280 | 4 | 16-19 MPa | 169mm | 4280mm | 30-50 ton |
| FC169-4E-4640 | 4 | 16-19 MPa | 169mm | 4640mm | 32-55 ton |
| FC169-4E-5000 | 4 | 16-19 MPa | 169mm | 5000mm | 32-60 ton |
| FC169-4E-5180 | 4 | 16-19 MPa | 169mm | 5180mm | 32-60 ton |
| FC169-4E-5390 | 4 | 16-19 MPa | 169mm | 5390mm | 32-60 ton |
| FC169-4E-5460 | 4 | 16-19 MPa | 169mm | 5460mm | 32-60 ton |
| FC185-4E-4280 | 4 | 16-19 MPa | 185mm | 4280mm | 25-45 ton |
| FC185-4E-4640 | 4 | 16-19 MPa | 185mm | 4640mm | 30-45 ton |
| FC185-4E-5000 | 4 | 16-19 MPa | 185mm | 5000mm | 32-50 ton |
| FC185-4E-5390 | 4 | 16-19 MPa | 185mm | 5390mm | 40-60 ton |
| FC185-4E-5460 | 4 | 16-19 MPa | 185mm | 5460mm | 40-65 ton |
| FC185-4E-5780 | 4 | 16-19 MPa | 185mm | 5780mm | 45-70 ton |
| FC185-4E-6000 | 4 | 16-19 MPa | 185mm | 6000mm | 50-80 ton |
| FC191-5E-5780 | 5 | 16-19 MPa | 191mm | 5780mm | 40-70 ton |
| FC191-5E-6200 | 5 | 16-19 MPa | 191mm | 6200mm | 45-80 ton |
| FC191-5E-7130 | 5 | 16-19 MPa | 191mm | 7130mm | 50-85 ton |
| FC191-5E-9030 | 5 | 16-19 MPa | 191mm | 9030mm | 55-90 ton |
| FC220-5E-7130 | 5 | 16-19 MPa | 220mm | 7130mm | 65-100 ton |
| FC220-5E-9030 | 5 | 16-19 MPa | 220mm | 9030mm | 65-100 ton |
